Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2028TYA01-JASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2028TYA01-HASWITCH ROCKER DPDT 6A 125V |
33 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2113NCFG03SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 1.7, 2 VDC | PC Pin | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 55°C | CSA, UL |
|
|
MLW3022-00-RB-2ASWITCH ROCKER DPDT 5A 125V |
11 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
P2023YZ-HGSWITCH ROCKER DPDT 10A 125V |
30 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 10A (AC) | 125 V | - | Paddle | Blue | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
|
MLW3020-00-PE-1ASWITCH ROCKER SP3T 5A 125V |
21 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Paddle | Yellow | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
TRD11F10QCLR204SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
M2048TYW01SWITCH ROCKER 4PDT 6A 125V |
9 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|

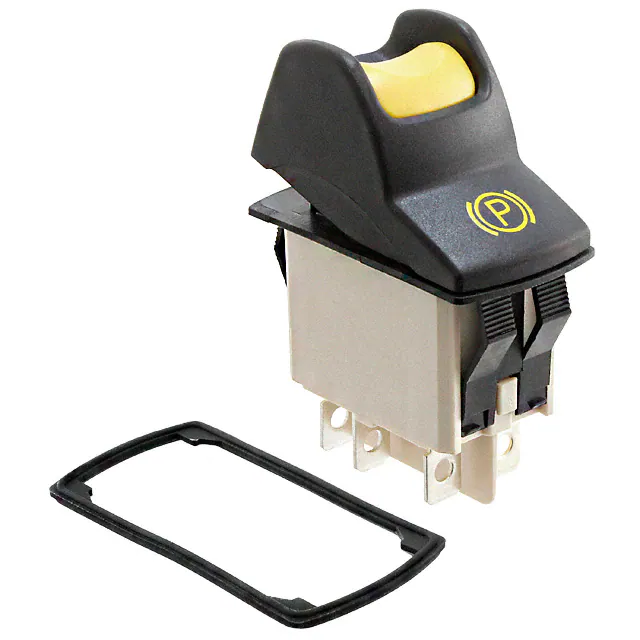

KL462AKXA125N01A65SWITCH ROCKER DPDT 10A 24V |
0 |
|
Datasheet |
KL | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Locking | Black, Yellow | ON - Parking Brake | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
AML24GBA2AA07SWITCH ROCKER SPDT 3A 125V |
8 |
|
Datasheet |
AML24 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
M2042TXW41SWITCH ROCKER 4PDT 6A 125V |
17 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2048TYW01-HASWITCH ROCKER 4PDT 6A 125V |
9 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2048TYW01-JASWITCH ROCKER 4PDT 6A 125V |
9 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
LW3129/CULSWITCH ROCKER DPDT 10A 125V |
15 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
M2042TNG03-DASWITCH ROCKER 4PDT 0.4VA 28V |
9 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
WR11AL/CULSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
M2122RFW03SWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | PC Pin | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 55°C | CSA, UL |
|
|
M2042TXW41-DASWITCH ROCKER 4PDT 6A 125V |
17 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2042TXW41-DCSWITCH ROCKER 4PDT 6A 125V |
17 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2042TXW41-EGSWITCH ROCKER 4PDT 6A 125V |
11 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Blue | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
