Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA11131123SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RD1113112RSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
RD1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 6.80mm | -20°C ~ 105°C | cULus, UL |
|

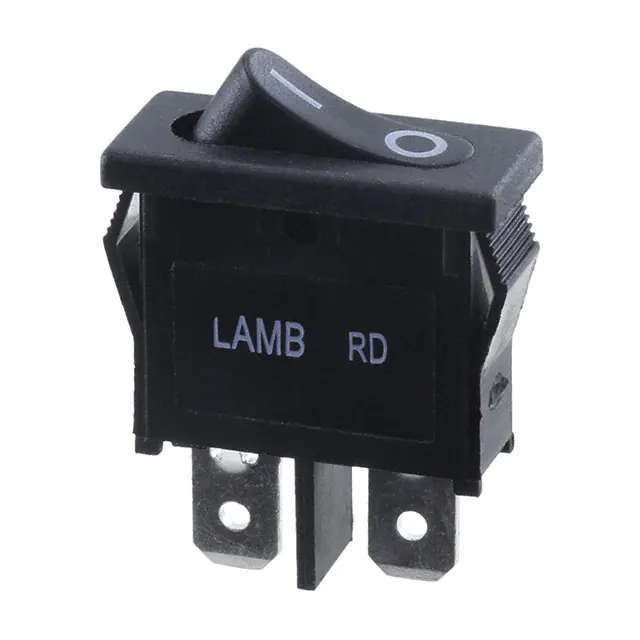

RD11131121SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
RD1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 6.80mm | -20°C ~ 105°C | cULus, UL |
|

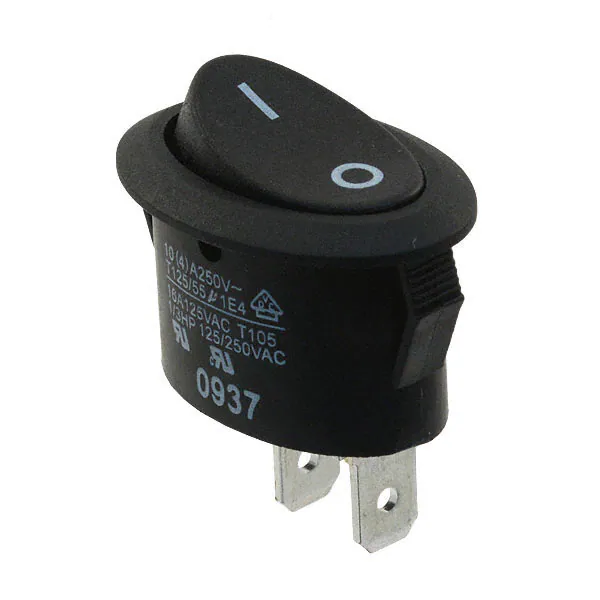

RE111C1121SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Oval | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|
SW-R2-2E-F-6-5SWITCH ROCKER SPDT 10A 125V |
16 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R1-3A-E-LG13-0SWITCH ROCKER DPST 20A 125V |
9 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 85°C | - |
|
GRS-4022A-0000SWITCH ROCKER DPDT 13A 125V |
11 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
R1966ABLKBLKEFSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
RA111C1021-116SWITCH ROCKER SPST 16A 125V |
10 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
SW-R2-1A-F-1-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | Waterproof | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
R4EBLKBLKEF0SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
R1966CBLKBLKFFSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R13112AAAASWITCH ROCKER SPST 10A 125V |
6 |
|
Datasheet |
R13 | - | Active | - | SPST | Off-On | 10A (AC) | 125 V | - | - | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | - | CSA, UL |
|
R5CBLKBLKEF0SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|

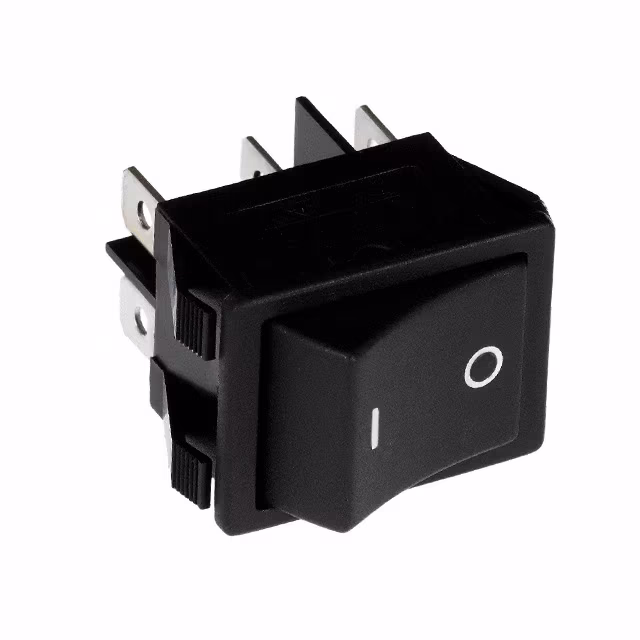

R5CBLKBLKGF0SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
R4GBLKBLKHF0SWITCH ROCKER SPDT 15A 125V |
16 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | Triangular Arrows with O | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
C1553AANAHSWITCH ROCKER DPST 20A 250V |
0 |
|
Datasheet |
1553 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Green | O I | Neon, Green | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
471002268142SWITCH ROCKER SPST 10A 250V |
0 |
|
Datasheet |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|
R13244AAAASWITCH ROCKER |
0 |
|
Datasheet |
R13 | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R5BBLKGRNFF2SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
