Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
47BWSP5R1M1QTSWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
47B | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
47DWMSP4R1M2QTSWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
47D | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
TIHM50-1S-BL-FNSWITCH ROCKER 3PDT 10A 250V |
0 |
|
Datasheet |
TIH | Bulk | Active | Panel Mount, Snap-In | 3PDT | On-Off-On | 10A (AC), 15A (DC) | 250 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
|
R1973ABLKYELFF4SWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Yellow | O - | Incandescent, Yellow | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
RB44(3C1123)+(1C1123)SWITCH ROCKER SPST/SPDT 16A 125V |
0 |
|
- |
RB4, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT + SPST-NC | On-Off, On-On | 16A (AC) | 125 V | - | Concave (Curved), Dual | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CE, cULus |
|
|
RR11534400SWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Round | Gray | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
SW-13A65N-A01 BKSWITCH ROCKER SPDT 6.5A 125V |
0 |
|
Datasheet |
SW, COMAX | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6.5A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 14.20mm | 0°C ~ 65°C | - |
|
A8WD-1162SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
A8W | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | Black | O I | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 22.30mm x 14.80mm | -25°C ~ 55°C | cULus, EN, UL |
|

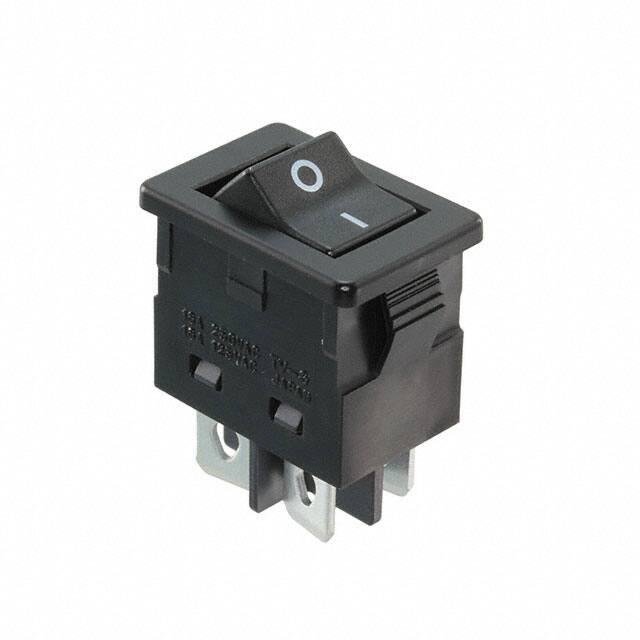

A8WD-1163SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
A8W | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 22.30mm x 14.80mm | -25°C ~ 55°C | cULus, EN, UL |
|
A8WS-1162SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
A8W | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | Black | O I | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 22.30mm x 14.80mm | -25°C ~ 55°C | cULus, EN, UL |
|
|
A8WS-1163SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
A8W | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 22.30mm x 14.80mm | -25°C ~ 55°C | cULus, EN, UL |
|
V8D2GHNB-AAC00-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber/Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TIGM6M-1C-BL-BSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
TIG | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
|
2-1571986-1SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
2-1571986-9SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
A | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 12.70mm | -30°C ~ 85°C | - |
|
4-1571987-3SWITCH ROCKER SP3T 5A 120V |
0 |
|
Datasheet |
A | Bulk | Obsolete | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.75mm x 12.70mm | -30°C ~ 85°C | - |
|

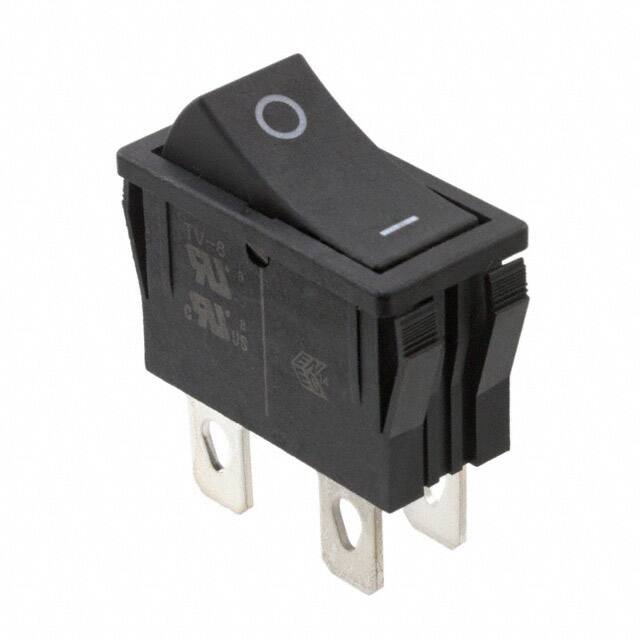

CF-LA-2KL-3CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|

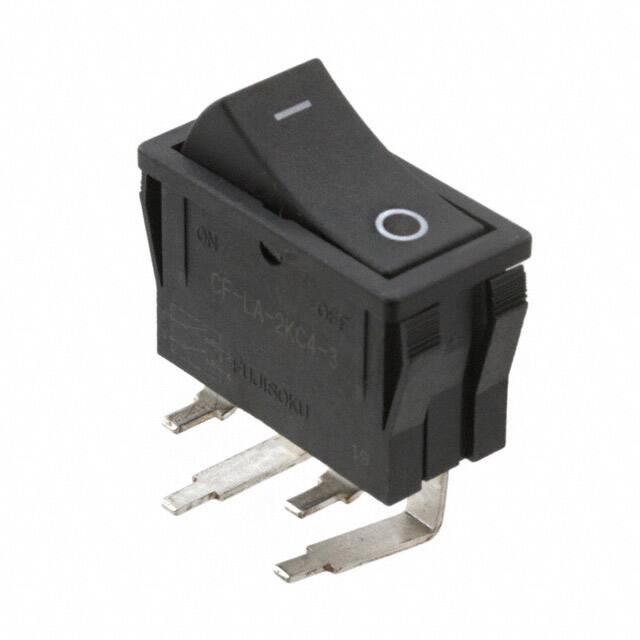

CF-LA-2KC4-3CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Obsolete | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
|
300-SP3-J3-(BLK)-VS2-Q-ESWITCH ROCKER SPDT 5A 120V |
0 |
|
- |
300 | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
1571989-7SWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
AE | Tray | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
