Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA812C1000-116SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA812C1028-136SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O on End | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RB141C1000-134SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Incandescent, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|

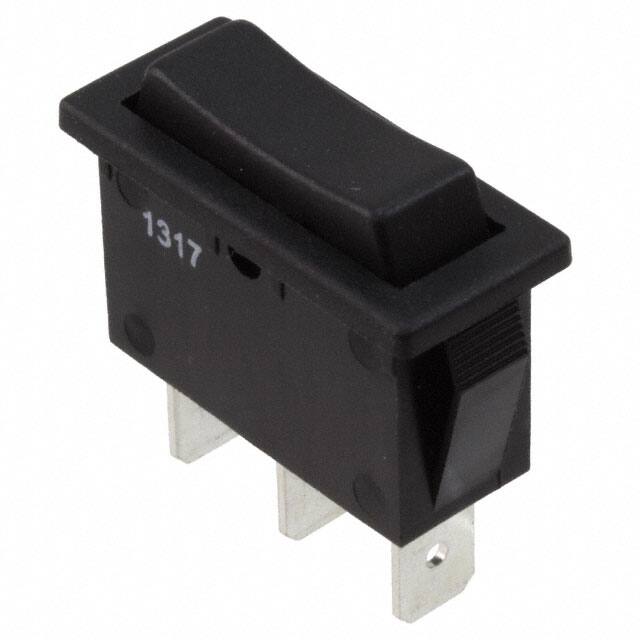

RB145C1100SWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|

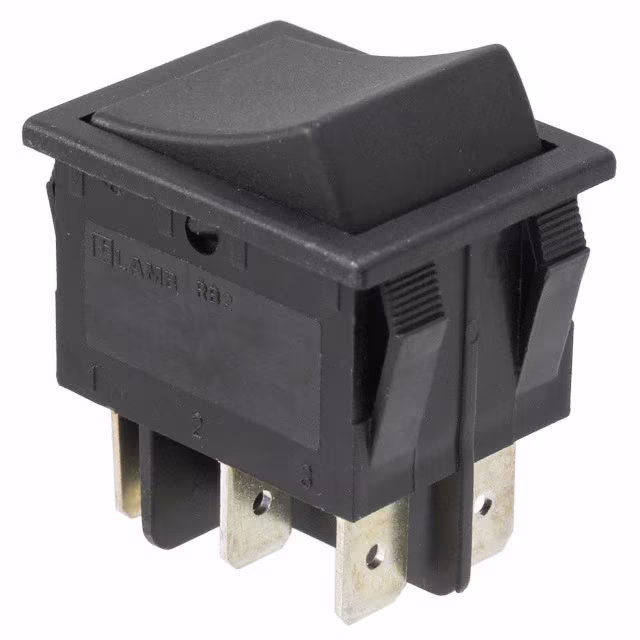

RB24GC1100SWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
RB242C1100-216/ACC-F02-1SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
RE111C1100SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RE1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Oval | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|
RE11534929SWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Oval | Red | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|
RR111C1700SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Blue | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
RR111C2211SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
RR18131100-214SWITCH ROCKER SPST 10A 125V |
0 |
|
- |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | LED, Red | 12 VDC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
RRA1G32200SWITCH ROCKER DPDT 10A 125V |
0 |
|
- |
RRA, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Round | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RRG3813QQ00SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
RRG3, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Bisque | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RSC141D1011-137SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
7109J1V3ME2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Through Hole | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
|
7109J8ZQI3SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat | Red | No Marking | - | - | Solder Lug | - | Epoxy Potted | Rectangular - 20.70mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
7201J11CKE22SWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
7201J11CME22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
7201J11WLE11SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
7201J16CME22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
