Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF-LA-2KZ2-2CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
|
AML26FBB2CA05RXSWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML26 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|

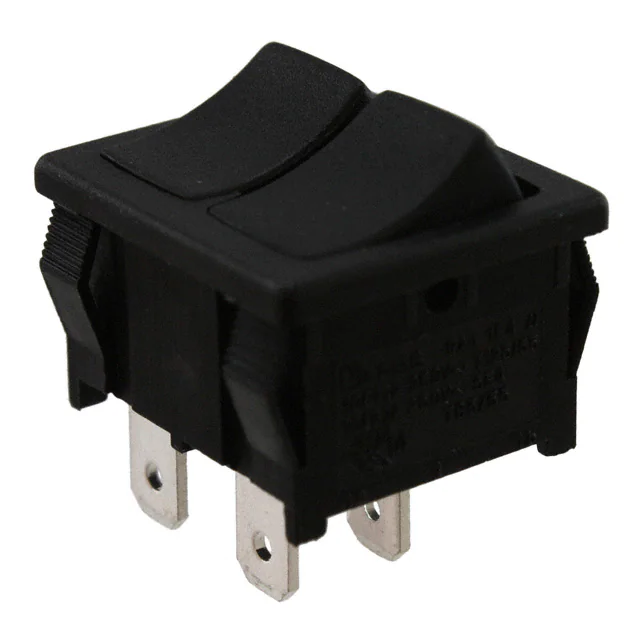

RA21131100SWITCH ROCKER SPSTX2 10A 125V |
0 |
|
Datasheet |
RA2, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST x 2 | On-Off | 10A (AC) | 125 V | - | Concave (Curved), Dual | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, VDE, UL |
|
|
MML24KA3BA01HDRXXSWITCH ROCKER SPDT 250MA 30V |
0 |
|
- |
MML24 | Bulk | Active | Through Hole | SPDT | On-On | 250mA (DC) | - | 30 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | - | PC Pin | - | - | - | - | - |
|
|
1TP201-8SWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | SPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
1TP201-3SWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML24EBA3BA04SWITCH ROCKER SPDT 100MA 125V |
0 |
|
Datasheet |
AML24 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML24FBE2CA04SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
AML24GBE2CA01SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML24GBA2CA02SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
300AWSP4J2WHTM2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | White | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
R1966ABLKBLKSPECIALSSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | Custom | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

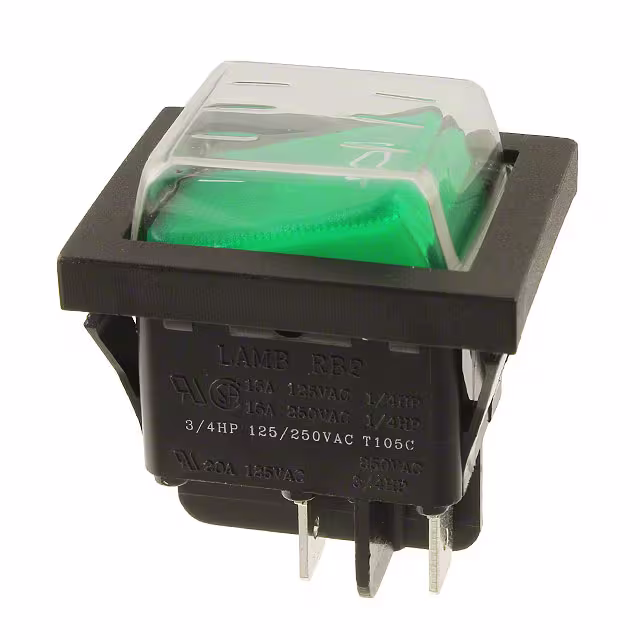

RB242D1021-136/ACC-F02-1SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

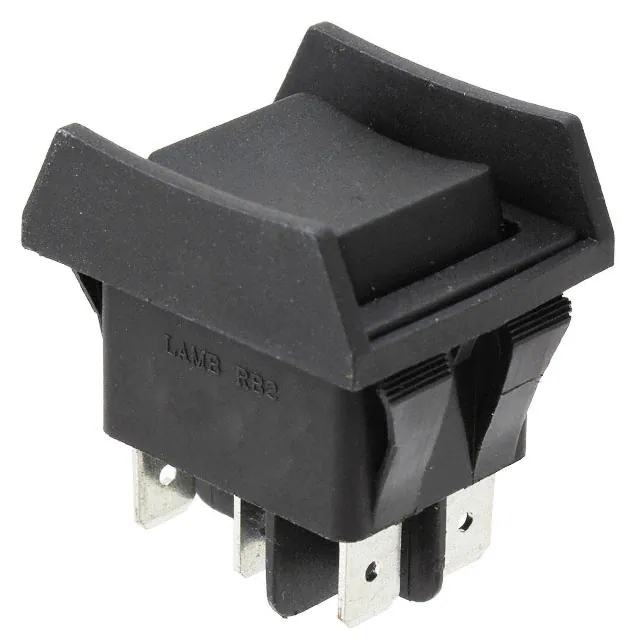

RB246E1100-ACC-F04-1SWITCH ROCKER DPDT 16A 125V |
0 |
|
- |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Guard | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

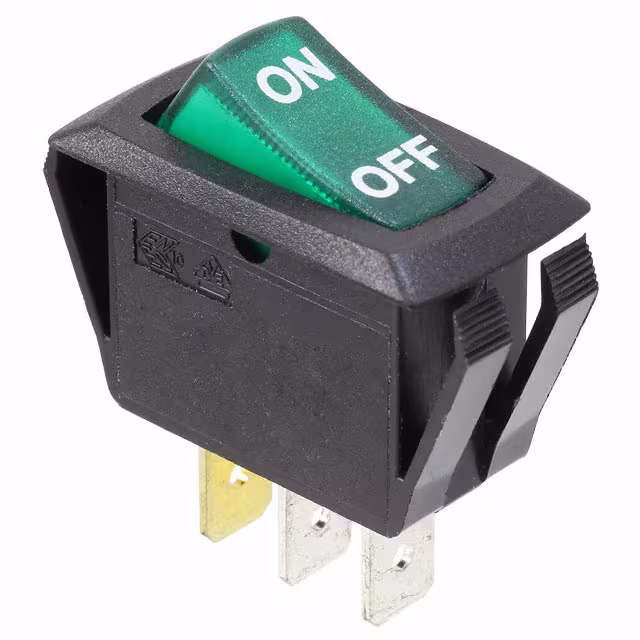

RSC241D1023-135SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | ON OFF, Vertical | Incandescent, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
RSC341D2C8Z24SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red, White | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 27.20mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
RA111C1021-117SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA111C1021-124SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | O - | Incandescent, Amber | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA111C1121/ACC-P01SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|

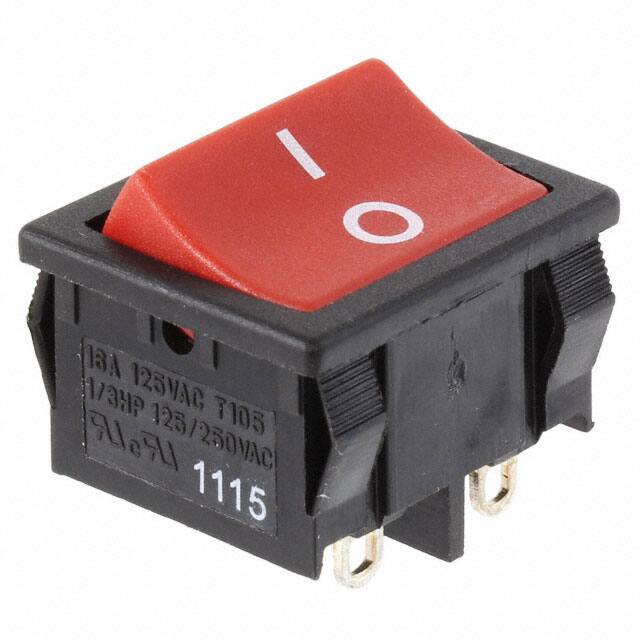

RA45HC1911SWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder Lug | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
