Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P2023YSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
P2023Y-JBSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
RB24GD1100SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
RSC141D1A00SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|

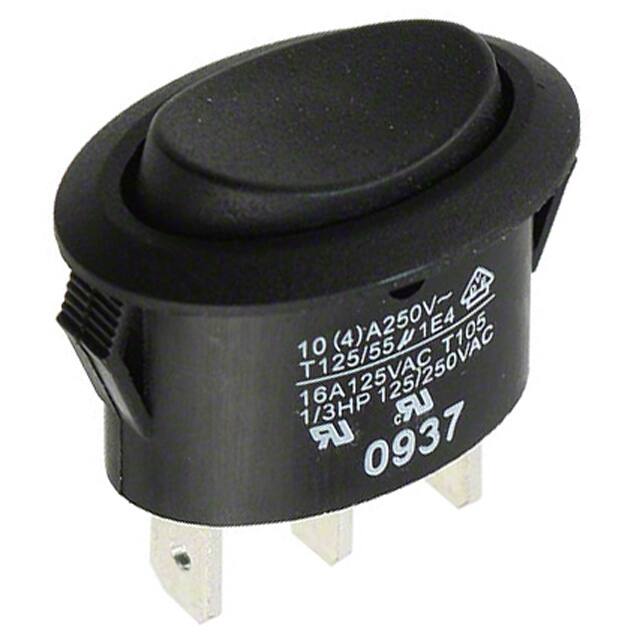

RE115C1100SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Oval | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|
RVW42D1100-116SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
RVWG4GD1100SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
CA22J73207HQSWITCH ROCKER DPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Red | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 22.00mm | -30°C ~ 65°C | CSA, UL |
|
|
CA22J72207HQSWITCH ROCKER DPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 22.00mm | -30°C ~ 65°C | CSA, UL |
|
|
CA22J72207QSWITCH ROCKER DPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 22.00mm | -30°C ~ 65°C | CSA, UL |
|
|
RRGA81C1121SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RRGA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL, VDE |
|
GRB073A202BBSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black, Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Rectangular - 19.20mm x 13.10mm | -25°C ~ 85°C | CSA, cULus, ENEC |
|
GRB293C01BBSWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C | - |
|
GRB263D001NNNSWITCH ROCKER SPDT 18A 125V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 18A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|
|
V446SOOC-AZC00-000-XETW1SWITCH ROCKER SPDT 10A 250V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 250 V | - | Convex (Reverse V) | Black | No Marking | - | - | Wire Leads | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V646S00C-AZC00-000-XETW1SWITCH ROCKER SPDT 10A 250V |
0 |
|
Datasheet |
Contura® V | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 250 V | - | Convex (Reverse V) | Black | No Marking | - | - | Wire Leads | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TIHL55-1S-BL-FN BLK-XWRL1SWITCH ROCKER 3PDT 10A 250V |
0 |
|
Datasheet |
TIH | Bulk | Discontinued at Digi-Key | Panel Mount, Snap-In | 3PDT | On-On | 10A (AC), 15A (DC) | 250 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Wire Leads | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
GRB244A802BBSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cULus |
|

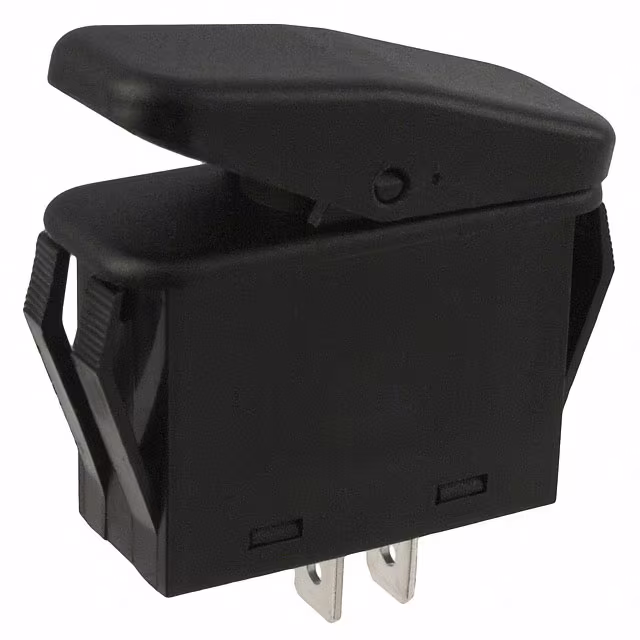

GRB258A01BBSWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.30mm | -20°C ~ 85°C | cULus, ENEC, VDE |
|
GRB260A601BBNNSWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
