Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2112PCW01-CSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Red | 1.9 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
M2T12TXG13-FESWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

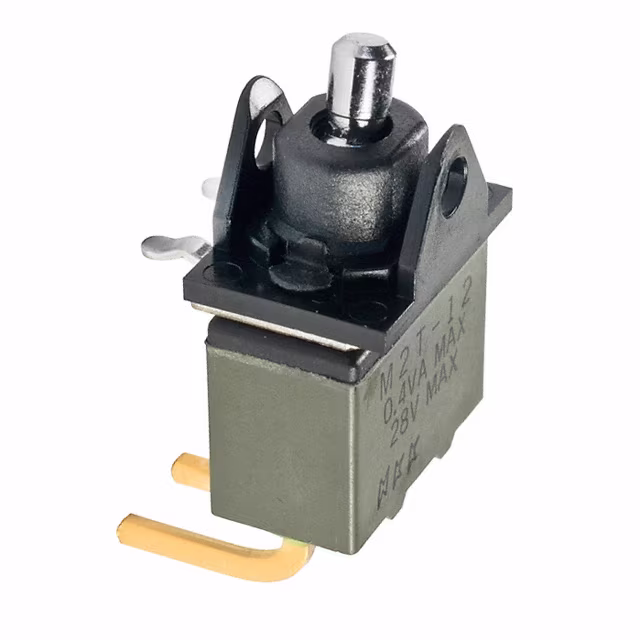

M2T12TXG30SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T12TXW41-FHSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T13TXG13-DASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

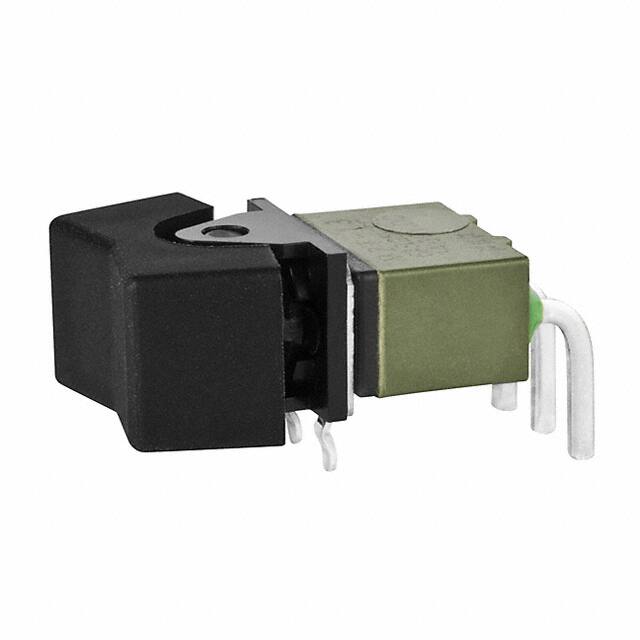

M2T13TXW30-DASWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

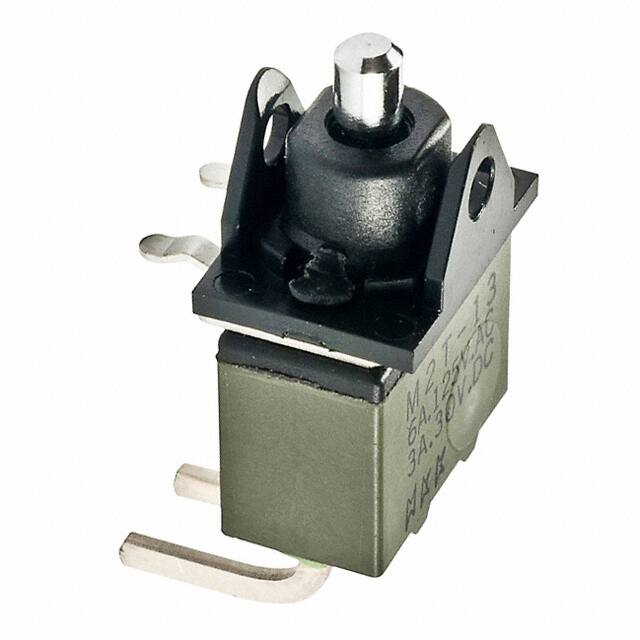

M2T13TXW30SWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T18TXG30-DGSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2T22TXW13/UCSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T23TXG13-GFSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Green | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

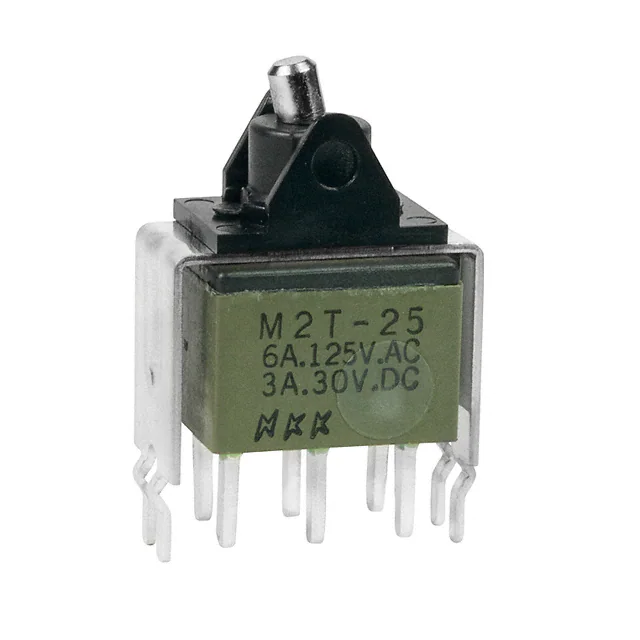

M2T25TXW13SWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
MLW3012-00-RA-1ASWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|

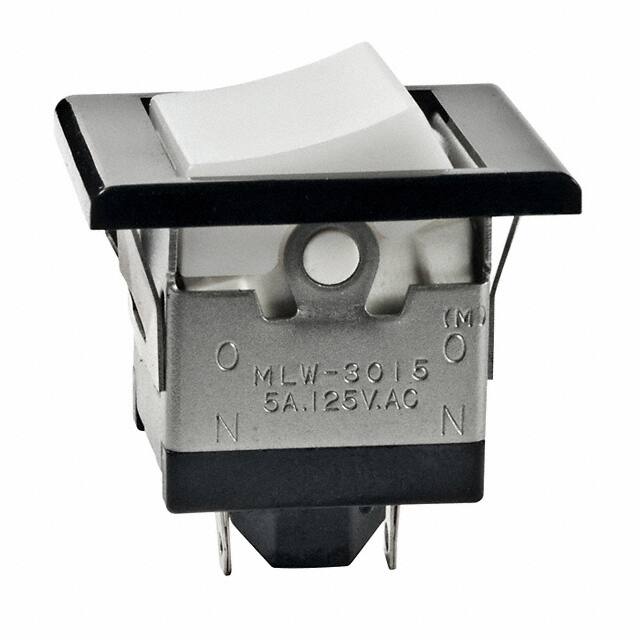

MLW3015-12-RB-1ASWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Incandescent, White | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
MLW3022-06-RB-2ASWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Incandescent, White | 6 VAC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
MLW3022-12-DD-2ASWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Orange | No Marking | Incandescent, Orange | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|

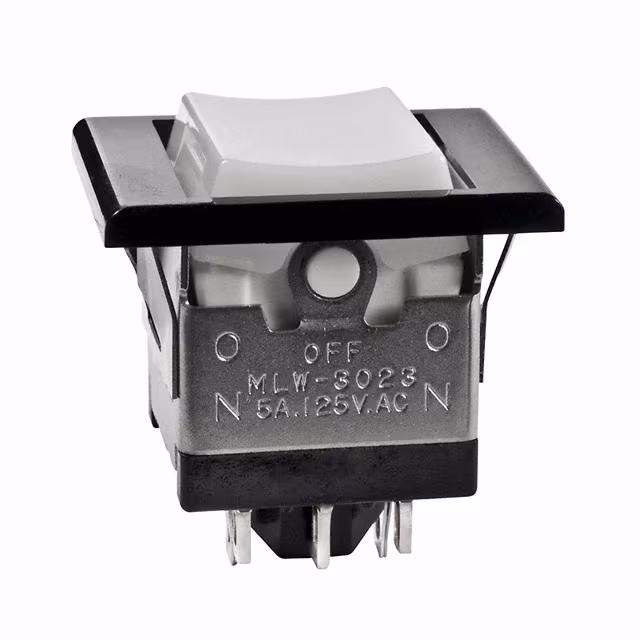

MLW3023-12-RB-1ASWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Incandescent, White | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3023-28-RD-2ASWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Orange | No Marking | Incandescent, Orange | 28 VAC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|

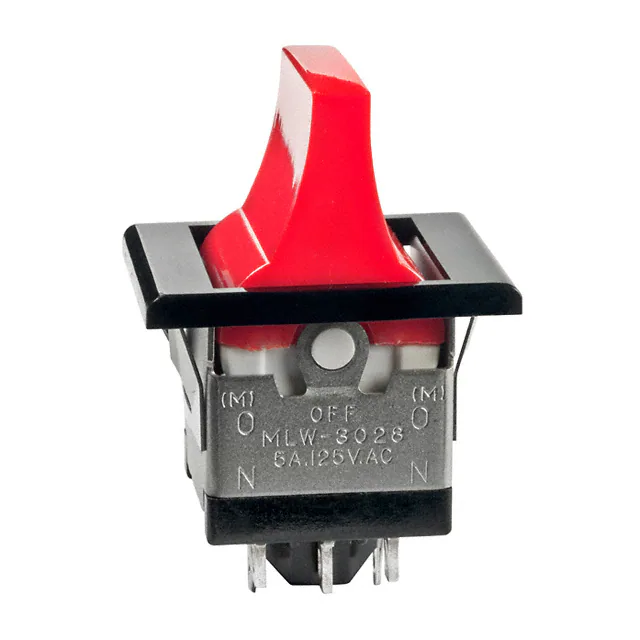

MLW3028-00-PC-1ASWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
P2011N-DASWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 85°C | CSA, UL, VDE |
|
|
P2013NSWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 85°C | CSA, UL, VDE |
