RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT1212B00BT2400SRF ANT 2.45GHZ CER PATCH SLDR |
0 |
|
Datasheet |
1212 | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | General Purpose |
|
W3919B0100RF ANT 5.4GHZ FLAT PATCH CAB ADH |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.925GHz | Flat Patch | 1 | 2 | - | 3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.018" (0.45mm) | Wi-Fi |
|
W3001RF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | - | -6dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, WLAN |
|
1513431-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|
1003893FT-AA10L0025ANTENNA ASSY, WLANB FT AA10 0025 |
1 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 25mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
1004796ANTENNA PCB, LTE MRR |
1 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Cellular | Wide Band | 600MHz, 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Chip | 9 | 2.5, 3 | - | 1.5dBi, 1.6dBi, 3.1dBi, 1.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE, LoRa, LPWAN, Sigfox |
|
PRO-IS-583INSIDE GSM/DCS MHF4 100MM ADH |
0 |
|
Datasheet |
Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 914MHz, 1.85GHz | 868MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 4 | - | 3dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
ANT-GFPCB2452-UFLRF ANT 830MHZ/2.25GHZ FLAT CAB |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.25GHz | 700MHz ~ 960MHz, 1.8GHz ~ 2.7GHz | Flat Patch | 2 | 2 | - | 4dBi | 1 W | Cable - 150mm | - | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
|
W1699ANT EXT ISM868/915/2.4 RPSMA |
2 |
|
Datasheet |
Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | RP-SMA Male | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|
W3538E0150RF ANT 850/900MHZ PCB TRAC 150MM |
0 |
|
Datasheet |
- | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | Cable - 150mm | MMCX Male | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|
ECHO17/0.1M/IPEX/S/S/15RF ANT 2.4GHZ PCB TRACE IPEX SMD |
0 |
|
Datasheet |
ECHO 17 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 2.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
RST-MA11-9012-1M-GE-001RF ANT 868MHZ WHIP STR SMA MALE |
0 |
|
Datasheet |
RST | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz | Whip, Straight | 1 | - | - | - | - | - | SMA Male | IP66, IP67 | - | - | Connector Mount | 3.575" (90.80mm) | GSM, ISM |
|
B24P-WCERTIFIED W.FL ANT ISM14585 BLE5 |
0 |
|
Datasheet |
B24P-W | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 3.2dBi | - | Cable - 102mm | - | - | - | - | Adhesive | 0.020" (0.50mm) | Bluetooth |
|
AH083F245001-TRF ANT 2.4GHZ CHIP SOLDER SMD |
4 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 3 | - | 1.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WiMax™, WLAN, Zigbee™ |
|
PRO-IS-579INSIDE WLAN SQUARE 100MM MHF4 |
0 |
|
Datasheet |
Embedded Antenna | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5125GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, ISM, WLAN, Zigbee™ |
|
2118059-1RF ANT 3GHZ FLT PATCH U.FL 350MM |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), UHF (3GHz ~ 4GHz) | 3GHz | 2.3GHz ~ 3.8GHz | Flat Patch | 1 | 3 | - | 4dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, WLAN, Zigbee™ |
|
AP-DIPOLE-C-IN-S2-BLANTENNA PLUS DIPOLE ANTENNA |
0 |
|
Datasheet |
- | Box | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Right Angle | 1 | - | - | 4.4dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.567" (116.00mm) | LTE |
|
ANT-MSTUBR-SMAMRF ANT 892MHZ/1.85GHZ WHIP RA |
5 |
|
Datasheet |
- | Bulk | Active | - | Wide Band | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.17GHz | Whip, Right Angle | 3 | 3 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.965" (49.90mm) | General Purpose |
|

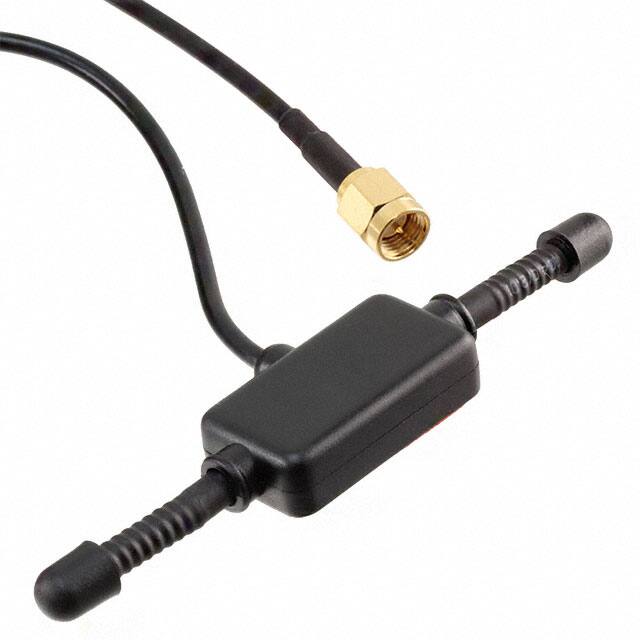

ALPHA18/3M/SMAM/S/S/26RF ANT 850/900MHZ WHIP CTR SMA |
0 |
|
Datasheet |
ALPHA 18 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Center-Fed Double | 5 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Adhesive | 1.091" (27.71mm) | GPRS, GSM, UMTS |
|
|
ALPHA17/2.5M/SMAM/S/S/20433MHZ ISM FLAT BLADE ANTENNA 2. |
0 |
|
Datasheet |
Alpha 17 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Blade | 1 | 1.5 | - | 2.15dBi | 60 W | - | SMA Male | - | - | - | Adhesive | 0.157" (4.00mm) | ISM |
RF Antennas Electronic Components
Frequently Asked Questions
Q1: What products are included in RF Antennas?
This category includes related RF Antennas subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for RF Antennas components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for RF Antennas and other electronic components.
