RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BB-2JW0124Z-C868BANT LTE 4G 3G 2G ULT WB SMA-M |
4 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Blade, Tilt | 8 | 2.4, 1.6, 2.2 | -7.7dB, -12.7dB, -8.5dB | 0.4dBi, 2.6dBi, 1.3dBi | 25 W | - | SMA Male, RP-SMA Male | - | - | - | Connector Mount | 7.657" (194.50mm) | 2G, 3G, 4G, CDMA, DCS, EVDO, GSM, GPRS, HSPA, PCS, LTE, UMTS, WCDMA |
|
RD2458-5-NMRF ANT 2.4GHZ/5.3GHZ WHIP TILT N |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | Wide Band | 2.4GHz, 5.3GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 1.5 | - | 2.2dBi, 4dBi, 5dBi | 10 W | - | N Type Male | - | - | - | Connector Mount | 7.598" (193.00mm) | Wi-Fi, WiMax™ |
|
AGGBP.SLS.18A.07.0060A5.9GHZ DSRC / C-V2X PATCH ANTENN |
0 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 1dBi, 1.38dBi, 1.15dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.337" (8.57mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
IS.ACIOTANT868WRAANTENNA 868MHZ |
1 |
|
Datasheet |
- | Box | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Right Angle | 1 | - | - | - | - | - | SMA | - | - | - | Connector Mount | 3.346" (85.00mm) | ISM, LoRa, Sigfox |
|
BB-ACH2-AT-DP003-GRF ANT 2.4GHZ WHIP TILT RP-SMA |
3 |
|
Datasheet |
Airborne™ | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 8.189" (208.00mm) | - |
|
2600130081ANTENNA 868MHZ CORNER 142MM SMA |
1 |
|
Datasheet |
WIRL-ACCE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 853MHz ~ 883MHz | Whip, Tilt | 1 | 2 | - | 2.3dB | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | - |
|

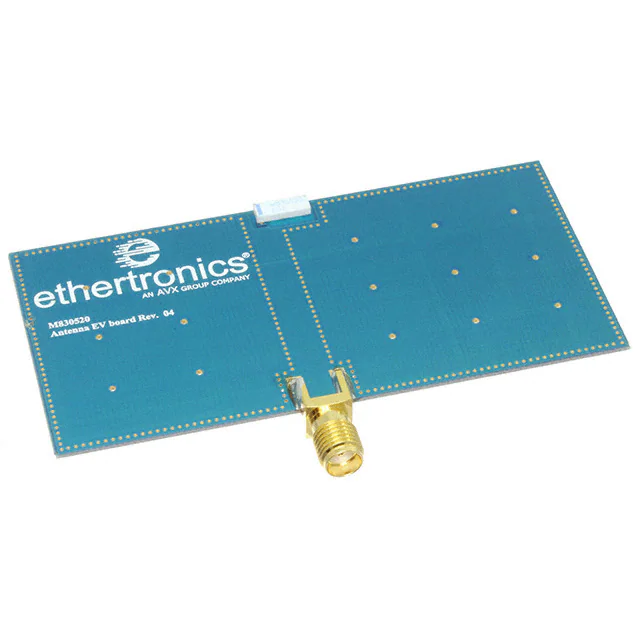

M830520-01RF ANT 2.4GHZ/5.35GHZ CHIP SLD |
5 |
|
Datasheet |
Savvi™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.35GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6 | - | 3.2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

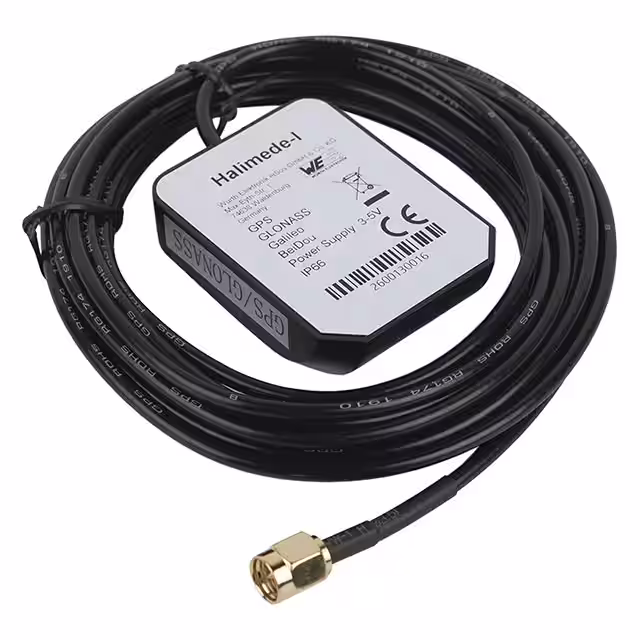

2600130016HALIMEDE-I GNSS ANTENNA 1.6 GHZ |
4 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.61GHz | 1.57GHz ~ 1.58GHz, 1.53GHz ~ 1.69GHz | Module | 2 | 1.5, 2 | - | 5dBic | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Magnetic | 0.661" (16.80mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
2600130082ANTENNA 868MHZ MAGNETIC 1.5M HF |
1 |
|
Datasheet |
WIRL-ACCE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 859MHz | 824MHz ~ 894MHz | Whip, Straight | 1 | 2 | - | -2.3dBi | 1 W | Cable - 1.5m | SMA Male | - | - | - | Magnetic | 3.937" (100.00mm) | - |
|
TANGO9/1.5M/SMAM/S/S/20OMNI 433MHZ THROUGH HOLE ANTENNA |
2 |
|
Datasheet |
TANGO 9 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 1.5 | - | 3dBi | 20 W | Cable - 1.5m | SMA Male | - | - | - | Through Hole | 9.843" (250.00mm) | ISM |
|
33-1010-05-0150RF ANT 1.575GHZ CER PATCH 15CM |
1 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1572.5MHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | -10dB | 4dBic | - | LNA | MCX Male | - | - | - | Adhesive, Chassis Mount | 0.285" (7.25mm) | GPS |
|
TANGO39/2.5M/SMAM/S/S/17433MHZ ISM BAND BOLT THROUGH ANT |
0 |
|
Datasheet |
Tango 39 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Puck | 1 | 1.5 | - | 1dBi | 50 W | Cable - 2.5m | SMA Male | - | - | - | Panel Mount | 0.591" (15.00mm) | ISM |
|
ANT-GSM5WMRF ANT 892MHZ/1.8GHZ WHIP STR |
4 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.8GHz | 824MHz ~ 960MHz, 1.8GHz | Whip, Straight | 2 | 1.5 | -11dB | 5dB | - | - | SMA Male | - | - | - | Bracket Mount | 9.843" (250.00mm) | GSM |
|
MA203W.AB.002RF ANT 850MHZ/900MHZ MOD SMA ADH |
5 |
|
- |
Stingray | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Module | 5 | 1.92 | -10dB | -3dB | - | Cable - 3m, LNA | SMA Male (2) | IP67 | - | - | Adhesive | 0.465" (11.80mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS |
|
TANGO29/1M/SMAM/RP/S/352.4GHZ 12MM SMALLEST PANEL MOUNT |
0 |
|
Datasheet |
TANGO 29 | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 0dBi | 1 W | - | RP-SMA Male | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, Wi-Fi |
|
ANT-WS-AB-RM-05-180RF ANT 2.4GHZ WHIP STR RP-SMA ML |
2 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 2 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | - | Wi-Fi |
|
WLP2458NGPRF ANT 2.45GHZ DOME TNC M BRKT |
5 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Dome | 2 | 2 | - | 3dBi, 3.5dBi | 10 W | - | TNC Male | IP67 | - | - | Bracket Mount, Through Hole | 1.732" (44.00mm) | Bluetooth, Wi-Fi |
|
ANT-PUKDBRF ANT 433MHZ/868MHZ PUCK PNL MT |
3 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz, 868MHz | - | Puck | 2 | 1.5, 1.3 | -14.7dB, -16.8dB | 2dBi | - | Cable - 1.5m | SMA Male | IP67 | - | - | Panel Mount | 0.957" (24.30mm) | - |
|
AB150SRF ANT 150MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 150MHz | 150MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 0dB | 200 W | - | NMO | - | - | - | Base Mount | - | - |
|
H2MA000D100100GNSS+LTE EXTERNAL ANTENNA |
2 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.35GHz, 2.6GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | Module | 8 | 2, 3 | - | 0.5dBi, 1.6dBi, 2.2dBi, 2.4dBi, 2.6dBi, 3dBi | - | Cable - 2m, LNA | SMA Male | - | - | - | Adhesive | 0.669" (17.00mm) | Beidou, Galileo, GLONASS, GPS, GNSS, LTE |
