RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-3152-01-01RF ANT 1.575GHZ DOME PAN MT |
1 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Dome | 1 | 1.5 | - | 4.5dBic | - | LNA | - | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | GPS |
|
VFT69383B11JN-518LANT LOW PROFILE 3-PORT SHARKFIN |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.745GHz, 2.45GHz, 5.45GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 9 | 2, 2.1, 2.5 | - | -0.3dBi, 0.6dBi, 1.6dBi, 3.4dBi, 4.5dBi, 5.6dBi, 4.3dBi, 3.4dBi, 4.6dBi | 30 W | Cable - 5.18m, LNA | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|
FG4063RF ANT 411MHZ WHIP STR N FEM 44" |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 411MHz | 406MHz ~ 416MHz | Whip, Straight | 1 | - | - | 3dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 44.000" (111.76cm) | - |
|
S8964BANT OMNI 4DBI STICK REV TNC |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 928MHz | 896MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | N Type Female | - | - | - | Bracket Mount | 42.125" (107.00cm) | WiMax™ |
|
Y1503RF ANT 162MHZ YAGI N FEM BRKT MT |
1 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 3-Element | 1 | 2 | -10dB | 7.1dBd | 300 W | - | N Type Female | - | - | - | Bracket Mount | 39.250" (996.95mm) | - |
|
33-3867-05-0150RF ANTENNA CERM PATCH |
1 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.589GHz, 1.602GHz | 1.213GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Ceramic Patch | 6 | 1.8 | - | 3dBi, 4.5dBi | - | Cable - 150mm, LNA | MCX Male | - | - | - | Chassis Mount | 0.319" (8.10mm) | Beidou, Galileo, GLONASS, GPS |
|
33-HC872-35DUAL BAND ANTENNA + L BAND |
1 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2345GHz, 1.5655GHz | 1.215GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 35dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-HC872-28DUAL BAND ANTENNA + L BAND |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2345GHz, 1.5655GHz | 1.215GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 28dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS |
|
Y89612RF ANT 933MHZ YAGI N FEM BRKT MT |
1 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Yagi, 12-Element | 1 | 1.5 | - | 11dBd | 500 W | - | N Type Female | - | - | - | Bracket Mount | 49.000" (124.46cm) | - |
|
BWA-2O2-001ANTENNA 2.4GHZ DOME 1/2 NPT 2 DB |
1 |
|
Datasheet |
BWA | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 2dBi | - | Cable - 400mm | RP-SMA Male | - | - | - | Panel Mount | 2.835" (72.00mm) | General Purpose |
|
HDDA5W-29-DP2RF ANT 5.4GHZ DISH N FEM BRKT MT |
0 |
|
Datasheet |
HD | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.875GHz | Dish | 1 | 1.8 | - | 29dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 25.512" (648.00mm) | WiMax™, Wi-Fi |
|
33-HC990EXF-28-00-1500EXTENDED FILTER, FULL BAND |
0 |
|
- |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.549GHz, 1.5825GHz | 1.164GHz ~ 1.3GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Helical | 3 | 1.8 | - | 1.6dBic, 2dBic, 2.1dBic, 2.2dBic, 2.3dBic, 2.4dBic, 2.5dBic, 2.7dBic | - | Cable - 1.5m, LNA, Filter | - | - | - | - | Base Mount | 0.984" (25.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
OD9-11D1RF ANT 910MHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 910MHz | 860MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 11dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 133.858" (340.00cm) | WiMax™ |
|
BWA-ANTKIT-004ANTENNA KIT YAGI 900MHZ; 6.5 DBD |
1 |
|
Datasheet |
BWA | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | - | - | 5dBi | - | - | RP-SMA Female, RP-SMA Male | - | - | - | - | - | General Purpose |
|
TRAB8213NPRF ANT 850MHZ DOME N FEM PAN MT |
0 |
|
Datasheet |
Phantom® | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 821MHz ~ 896MHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM |
|
W3715RF ANT 2.45/5.425GHZ PCB TRACE |
3 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.425GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 3.7dBi, 5.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.630" (16.00mm) | General Purpose |
|
1461860250RF ANT 1.561/1.575GHZ FLAT 250MM |
0 |
|
Datasheet |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.55dBi, 3.25dBi, 4dBi | 2 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|

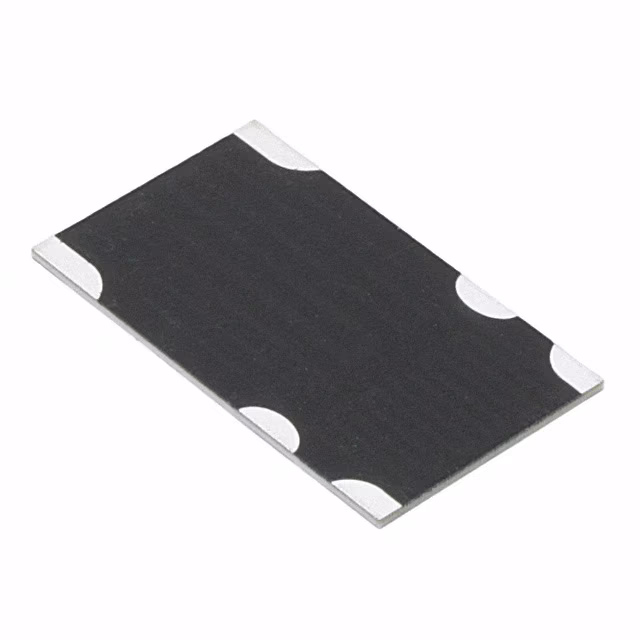

ANT2112A010B0918ARF ANT 900MHZ/1.8GHZ CHIP SLD |
5 |
|
Datasheet |
2112 | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 885MHz ~ 915MHz, 1.715GHz ~ 1.885GHz | Chip | 2 | - | -6.543dB, -9.217dB | 0.5dBi, 1dBi | 4 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|
1002686RF ANT 5GHZ STAMPED MET SLDR SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Stamped Metal | 2 | 2 | - | 6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Wi-Fi, WLAN |
|
|
1575AT44A0010001ERF ANT 1.575GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Chip | 1 | - | -9.5dB | 0.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | GPS |
