RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TANGO19/3M/SMAM/SMAM/S/S/20RF ANT 850/900MHZ PUCK SMA MALE |
0 |
|
Datasheet |
TANGO 19 | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | - | Puck | 5 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Panel Mount | 0.571" (14.50mm) | GPRS, GPS, GSM |
|
NMO3E800BBASE / WHIP ENCLOSED, 3 DB, 806 |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | - | 5.4dBi | 200 W | - | NMO | - | - | - | Magnetic | 13.500" (342.90mm) | - |
|
TANGO18/3M/SMAM/S/S/19RF ANT 850MHZ/900MHZ WHIP STR |
0 |
|
Datasheet |
TANGO 18 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.8 | - | 4dBi | - | - | SMA Male | IP67 | - | - | Base Mount | 12.598" (320.00mm) | GPRS, GSM, UMTS |
|
W765FL-100-RMM-AGDPLOW PROFILE 3G ANTENNA WITH FLYI |
4 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Dome | 2 | 2 | - | 2dBi | - | Cable - 2.54m | MMCX | - | - | - | Panel Mount | 2.835" (72.00mm) | General Purpose |
|
A150S-LRF ANT 162MHZ WHIP STR NMO 6" |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 0dB | 200 W | - | NMO | - | - | - | Base Mount | - | - |
|
0600-00030RF ANT 915MHZ WHIP STR RP-SMA ML |
0 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | - |
|
TANGO19/5M/SMAM/SMAM/S/S/20RF ANT 850/900MHZ PUCK SMA MALE |
0 |
|
Datasheet |
TANGO 19 | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | - | Puck | 5 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Panel Mount | 0.571" (14.50mm) | GPRS, GPS, GSM |
MAXMFT(S).jpg)
|
BMAXC24505RF ANT 2.55GHZ WHIP STR NMO MNT |
0 |
|
Datasheet |
MAX BASE | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.55GHz | 2.2GHz ~ 2.9GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | - | - | - | - | - | NMO Mount | 7.500" (190.50mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LTE, Wi-Fi |
|
TANGO14/1M/SMAM/S/S/22RF ANT 850/900MHZ DOME SMA MALE |
0 |
|
Datasheet |
TANGO 14 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Dome | 5 | 2 | - | 2.15dB | - | - | SMA Male | IP65 | - | - | Panel Mount | 0.709" (18.00mm) | GPRS, GSM, UMTS |
|
33-4320-00-3000RF ANT 1.575/1.602GHZ DOM CAB 3M |
1 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Dome | 1 | 1.5 | -10dB | 4.5dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.563" (14.30mm) | GLONASS, GPS |
|
TANGO40/X/NTYPEF/S/S/32RF ANT 829MHZ/1.94GHZ WHIP STR N |
0 |
|
Datasheet |
TANGO 40 | Bulk | Active | WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Whip, Straight | 3 | 3 | - | - | - | - | N Type Female | - | - | - | Panel Mount | 3.067" (77.90mm) | WLAN |
|
EM-M20007RF ANT 829MHZ/2.1GHZ WHIP STR |
0 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.1GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.5GHz | Whip, Straight | 2 | 1.5, 2 | - | 2dBi, 5dBi | 100 W | - | NMO | - | - | - | Base Mount | 4.016" (102.00mm) | LTE |
|
X1005249-LGA2SA10A2ANTENNA GPS-GLONASS/LTE |
1 |
|
Datasheet |
- | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 2.3, 3.8, 5 | - | 3.7dBi, 3dBi, 3.5dBi, 3.6dBi, 3.6dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.787" (20.00mm) | GLONASS, GPS, LTE |
|
LPT600/71DMNWANTENNA 617-7125MHZ MONOPOLE |
0 |
|
Datasheet |
Monopole Antenna | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz, 3.6GHz, 6.0125GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 7.125GHz | Dome | 5 | 2, 3 | - | 2dBi, 3.9dBi, 5.3dBi, 4.7dBi, 6.1dBi | 60 W | - | N Type Female | IP67 | - | - | Connector Mount | 3.776" (95.90mm) | 4G, 5G, Wi-Fi |
|
710258RF ANT 789MHZ MODULE SMA M |
0 |
|
Datasheet |
AllDisc Small | Box | Active | Cellular | Wide Band | 789MHz, 920MHz, 1.795GHz, 2.045GHz, 2.595GHz, 3.6GHz | 698MHz ~ 880MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Module | 6 | 2, 2.5 | - | 4.5dBi, 5dBi, 5dBi, 4.5dBi, 3.5dBi, 7dBi | 10 W | Cable - 500mm | SMA Male | IP6K9K | - | - | Screw Mount | 2.165" (55.00mm) | 2G, 3G, 4G, 5G |
|
BWA-2O5-CANTENNA OMNI 2.4GHZ; 5 DBI RUBBE |
4 |
|
Datasheet |
BWA | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.496" (165.00mm) | General Purpose |
|
TANGO17/5M/LL/SMAM/S/S/26RF ANT 850/900MHZ DOME SMA MALE |
2 |
|
Datasheet |
TANGO 17 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Dome | 5 | 2 | - | 2dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.370" (34.80mm) | GPRS, GSM, UMTS |
|

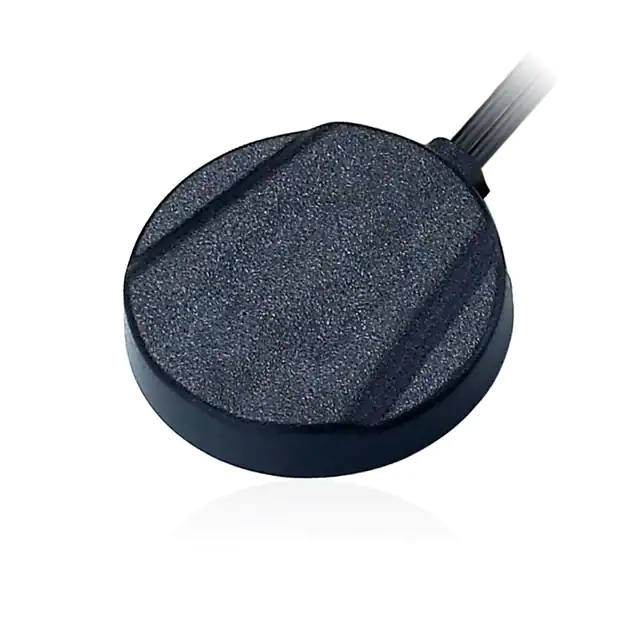

MA206.A.AB.004RF ANT 1.575GHZ/2.4GHZ MOD ADH |
0 |
|
Datasheet |
Stingray | Bag | Active | Navigation | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.573GHz ~ 1.577GHz, 2.4GHz ~ 2.5GHz | Module | 2 | 1.92 | -26dB | 28dB | - | Cable - 3m, LNA | SMA Male (1), RP-SMA Male (2) | IP65 | - | - | Adhesive | 0.425" (10.80mm) | GPS |
|
TANGO14/3M/SMAM/S/S/22RF ANT 850/900MHZ DOME SMA MALE |
1 |
|
Datasheet |
TANGO 14 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Dome | 5 | 2 | - | 2.15dB | - | - | SMA Male | IP65 | - | - | Panel Mount | 0.709" (18.00mm) | GPRS, GSM, UMTS |
|
ETRA4503RF ANT 460MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
Phantom Elite® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 3.400" (86.36mm) | - |
