RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W601DT-110-AM-AGDPRF ANT 892MHZ/1.9GHZ FLAT BAR |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Bar | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.516" (13.10mm) | - |
|
APAMPSLJ-140RF ANT 829MHZ/2.2GHZ WHIP STR |
0 |
|
Datasheet |
APAMPS | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 699MHz ~ 2.69GHz | Whip, Straight | 2 | 5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.732" (171.00mm) | GPS, LTE |
|
ALPHA40/2.5M/SMAM/S/S/29RF ANT 762MHZ/1.94GHZ FLAT BAR |
0 |
|
Datasheet |
ALPHA 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 762MHz, 1.94GHz, 2.5GHz | 700MHz ~ 824MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 3 | - | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | Bluetooth, WLAN |
|
RDP-TC1-470062-1M-X-001MAGNETIC MOUNT QUAD BAND GSM, 3G |
0 |
|
Datasheet |
RDP | Bulk | Active | Cellular | Wide Band | 825MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 2 | - | 5dBi | - | Cable - 5m | SMA Male | IP66, IP67 | - | - | Magnetic | 18.504" (470.00mm) | Cellular, LTE |
|

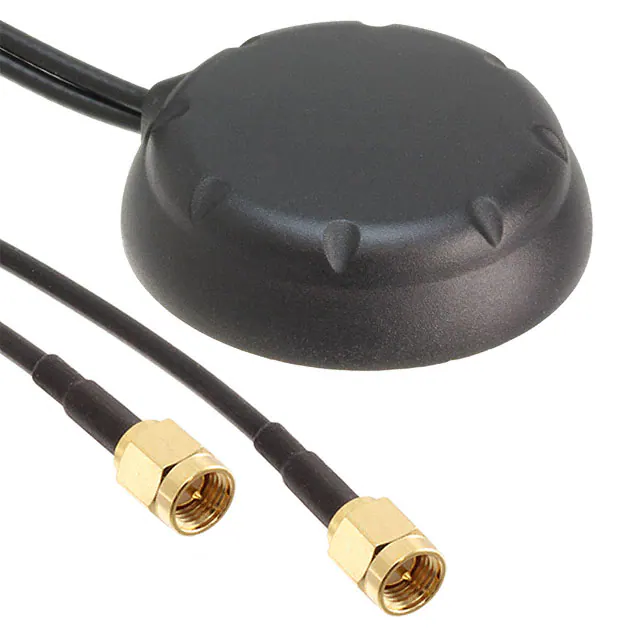

ALPHA7/3M/SMAM/SMAM/S/S/11RF ANT 900MHZ/1.575GHZ PUCK SMA |
0 |
|
Datasheet |
ALPHA 7 | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.575GHz, 1.8GHz | - | Puck | 3 | 2 | - | 27dB | - | - | SMA Male | - | - | - | Adhesive | 0.689" (17.50mm) | GPRS, GPS, GSM |
|
W522M2-157-AM-AMPS/PCSRF ANT 850MHZ/1.9GHZ WHIP STR |
5 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 1.9GHz | 824MHz ~ 896MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | - | 2dBi, 4dBi | - | Cable - 4m | SMA Male | IP65 | - | - | Magnetic | 14.252" (362.00mm) | AMPS, PCS |
|

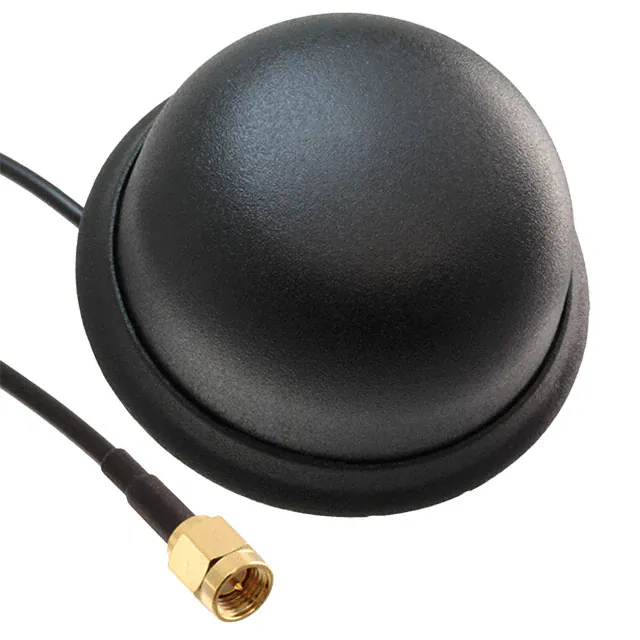

TANGO17/3M/SMAM/S/S/26RF ANT 850/900MHZ DOME SMA MALE |
0 |
|
Datasheet |
TANGO 17 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Dome | 5 | 2 | - | 2dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.370" (34.80mm) | GPRS, GSM, UMTS |
|
EXH155SFKRF ANT 155MHZ WHIP STR SFK CONN |
0 |
|
Datasheet |
EXH | Bulk | Active | - | VHF (f < 300MHz) | 155MHz | 150MHz ~ 160MHz | Whip, Straight | 1 | 2 | - | - | 50 W | - | SFK | - | - | - | Connector Mount | 10.500" (266.70mm) | - |
|
0600-00020RF ANT 868MHZ WHIP TILT MMCX PAN |
1 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Tilt | 1 | - | - | 2dBi | - | - | MMCX | - | - | - | Panel Mount | 7.000" (177.80mm) | - |
|
MIKE2A/3M/LL2/SMAM/S/S/26RF ANT 850/868MHZ WHIP STR SMA |
2 |
|
Datasheet |
MIKE 2A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 6 | 2 | - | 5dBi | - | - | SMA Male | - | - | - | Magnetic | 12.244" (311.00mm) | GPRS, GSM, UMTS |
|
ALPHA4A/5M/MCXM/S/S/26RF ANT 1.575GHZ MODULE MCX MALE |
0 |
|
Datasheet |
ALPHA 4A | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 26dB | - | - | MCX Male | - | - | - | Adhesive | 0.512" (13.00mm) | GPS |
|
PX0408RF ANT 440GHZ-470GHZ SMB |
0 |
|
Datasheet |
Buccaneer® 400 | Bulk | Active | Bluetooth | UHF (300MHz ~ 1GHz) | 450MHz | 440MHz ~ 470MHz | Whip, Right Angle | 1 | 2 | - | - | - | - | SMB | IP68, IP69K | - | - | Screw | 3.406" (86.50mm) | Bluetooth |
|
FXP543.A.07.A.001RF ANT 2.4GHZ/5.8GHZ FLAT PATCH |
0 |
|
Datasheet |
Venti | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB, -9dB | 2.96dBi, 5.16dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 (3) | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|
|
TANGO17/1M/LL/SMAM/S/S/26RF ANT 850/900MHZ DOME SMA MALE |
0 |
|
Datasheet |
TANGO 17 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Dome | 5 | 2 | - | 2dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.370" (34.80mm) | GPRS, GSM, UMTS |
|
ALPHA6/4M/FMEM/SMAM/S/S/7RF ANT 850/900MHZ PUCK SMA MALE |
0 |
|
Datasheet |
ALPHA 6 | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | - | Puck | 5 | 2 | - | 28dBi | - | - | SMA Male | - | - | - | Adhesive | 0.551" (14.00mm) | GPRS, GPS, GSM |
|
710431RF ANT RUGGED DESIGNED FOR SMAR |
3 |
|
Datasheet |
SmartDisc™ | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.545GHz, 5.4GHz | 2.4GHz ~ 2.69GHz, 4.9GHz ~ 5.9GHz | Dome | 2 | 1.8 | - | 1dBi, 3dBi | 10 W | - | SMA Male | IP67 | - | - | Adhesive, Panel Mount | 1.024" (26.00mm) | WiFi |
|
|
A8063-LRF ANT 851MHZ WHIP STR NMO BASE |
1 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | NMO | - | - | - | Base Mount | - | - |
|
|
710375RF ANT RUGGED DESIGNED FOR SMAR |
0 |
|
Datasheet |
SmartDisc™ | Box | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.545GHz, 5.4GHz | 2.4GHz ~ 2.69GHz, 4.9GHz ~ 5.9GHz | Dome | 2 | 1.8 | - | 1dBi, 3dBi | 10 W | Cable - 2.5m | SMA Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | Bluetooth, IoT, M2M, Wi-Fi |
|
AEACBK046014-C2WGRF ANT 2.45GHZ MODULE SMA CONN |
0 |
|
Datasheet |
AEAC | Bulk | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.483GHz | Module | 1 | 2 | - | 2dBi | 10 W | LNA | SMA | IP67 | - | - | Screw | 0.571" (14.50mm) | Bluetooth, GLONASS, GPS, ISM, Wi-Fi, Zigbee™ |
|
MIKROE-3376GPS/3G EXTERNAL ANTENNA |
1 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 892MHz, 1.575GHz, 1.85GHz, 2.035GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.99GHz, 1.9GHz ~ 2.17GHz | Module | 4 | 1.5, 2 | - | 1dBi, 1.5dBi, 5dBi | - | Cable - 3m, LNA | SMA Male (2) | - | - | - | Panel Mount | 0.555" (14.10mm) | 3G, GPS, GSM |
