RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP450NMOWWHITE NMO LOW PROFILE, UNITY, 45 |
31 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Panel Mount | 1.500" (38.10mm) | - |
|
NMO150CCOIL / WHIP, 3 DB, 144 - 174 MHZ |
7 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | - | 5.14dBi | 200 W | - | NMO | - | - | - | Magnetic | 51.496" (130.80cm) | - |
|
NMOWB150BCOWIDEBAND NMO COIL, 2.5 DB, 135 - |
96 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 154.5MHz | 135MHz ~ 174MHz | Whip, Straight | 1 | - | - | - | 100 W | - | NMO | - | - | - | Magnetic | 2.750" (69.85mm) | - |
|
ETRAB4103RF ANT 418MHZ WHIP STR NMO BASE |
17 |
|
Datasheet |
Phantom Elite® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 418MHz | 410MHz ~ 425MHz | Whip, Straight | 1 | 2 | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 3.400" (86.36mm) | - |
|
ASPRDM1994SRF ANT 859MHZ WHIP STR SMA M MAG |
50 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 859MHz, 1.92GHz | 824MHz ~ 894MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | - | 3dBi, 3dBi | 10 W | Cable - 4.572m, LNA | SMA Male | - | - | - | Magnetic | 14.100" (358.14mm) | PCS |
|
|
LP490NMOWWHITE NMO LOW PROFILE, UNITY, 49 |
19 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 501MHz | 490MHz ~ 512MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Panel Mount | 1.500" (38.10mm) | - |
|

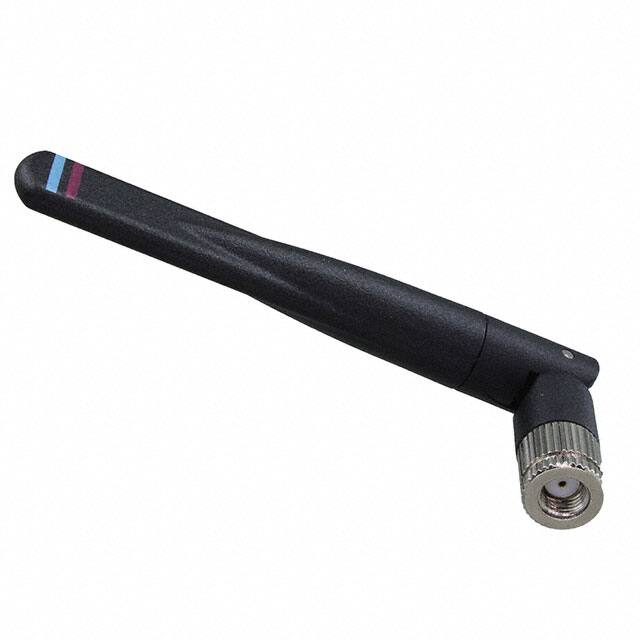

DG-ANT-50DP-AGRF ANT 2.4GHZ/5GHZ WHIP TILT |
9 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Whip, Tilt | 2 | 2 | -10dB | 5dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 5.256" (133.50mm) | Wi-Fi |
|
|
PIS-1023GLASS FIBER LORA ANTENNA - 915MH |
6 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | - | - | 3dBi | - | - | - | - | - | - | Connector Mount | - | - |
|
3917D-5M-SMARF ANT 1.575GHZ MOD SMA MALE MAG |
21 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | -2dBic, 3dBic | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.535" (13.60mm) | GNSS, GPS |
|
BOA58006NFRF ANT 5.75GHZ WHIP STR N TYPE |
6 |
|
Datasheet |
BOA | Bag | Active | WiFi | SHF (f > 4GHz) | 5.75GHz | 5.7GHz ~ 5.8GHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 20 W | - | N Type Female | IP67 | - | - | Connector Mount, Pole Mount | 7.290" (185.17mm) | Bluetooth, Wi-Fi |
|
W771FL2-36-AMRF ANT 829MHZ/2.2GHZ DOME SMA ML |
4 |
|
Datasheet |
771 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2.5 | - | 2dBi | - | - | SMA Male | IP65 | - | - | Panel Mount | 3.067" (77.90mm) | LTE |
|
|
NMO50BCONMO COIL, UNITY, 50 - 54 MHZ |
24 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 50.5MHz | 47MHz ~ 54MHz | Whip, Straight | 1 | - | - | - | 150 W | - | NMO | - | - | - | Magnetic | 3.500" (88.90mm) | - |
|
BB1442NRF ANT 159MHZ WHIP STR NMO BASE |
5 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2dBi | 100 W | - | NMO | - | - | - | Base Mount | 44.000" (111.76cm) | - |
|
|
GNSSDM30NMANT ACTIVE GNSS DRT MNT N-MALE |
6 |
|
Datasheet |
GNSS Active Antenna | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Dome | 3 | 2 | - | 1dBic | - | LNA | N Type Male | IP67 | - | - | Connector Mount | 0.827" (21.00mm) | Beidou, GLONASS, GNSS, GPS |
|
TRA6927M3NWN-001RF ANT 700/850MHZ DOME NMO 3.3" |
5 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.1GHz ~ 2.7GHz | Dome | 2 | 2.5, 2 | - | 0dBi, 1.7dBi, 2.9dBi | 100 W | - | NMO | - | - | - | Base Mount | 3.300" (83.82mm) | GSM, LTE, WiMax™ |
|
LP470NMOBLACK NMO LOW PROFILE, UNITY, 47 |
10 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Panel Mount | 1.500" (38.10mm) | - |
|

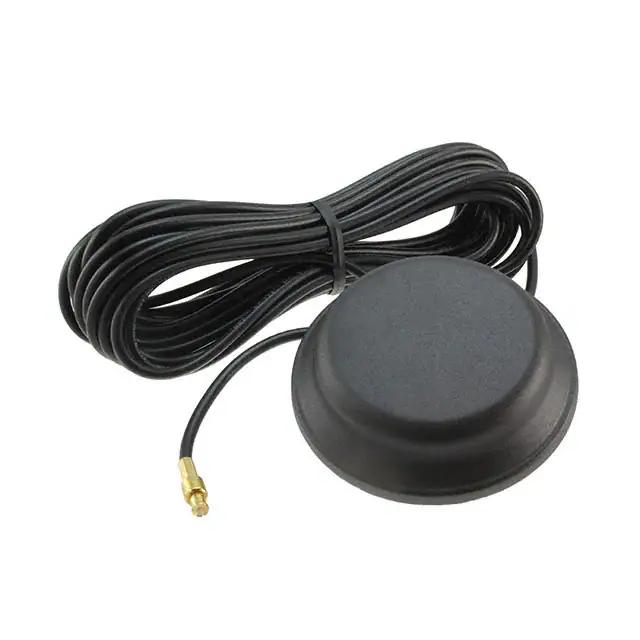

GPSDM02RF ANT 1.575GHZ DOME MCX CONN |
3 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 5dBic | - | - | MCX | - | - | - | Adhesive | 0.700" (17.78mm) | GPS |
|
BB8962NWHIP MC 1/2 896-970MHZ 2.4 BK |
5 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | - | - | - | NMO | - | - | - | Base Mount | - | - |
|
NMO5E2400BKBASE / WHIP ENCLOSED, 5 DBI, 240 |
6 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 2.95dBi | - | - | NMO | - | - | - | Magnetic | 8.500" (215.90mm) | 4G, LTE |
|
NMO800STAINLESS SPRING BASE / WHIP, EN |
12 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 12.750" (323.85mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
