RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AECW0801C03S-3000SANTENNA GNSS+LTE+WIFI |
40 |
|
Datasheet |
AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 2, 2.5, 3 | - | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male (3) | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
MUF4505NGPRF ANT 460MHZ WHIP STR MAGN |
44 |
|
Datasheet |
MUF NGP | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 3dBi, 5dBi | 200 W | - | - | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
YB0032AAEXTERNAL CELLULAR ANTENNA |
84 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.55GHz | 700MHz ~ 2.7GHz | Module | 1 | 3 | - | 3dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Screw Mount | 1.693" (43.00mm) | LTE |
|
BMLPVDB902/2400RF ANT 915MHZ/2.45GHZ DOME BASE |
14 |
|
Datasheet |
BMLPV | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 915MHz, 2.45GHz | 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Dome | 2 | 2 | - | 3dBi, 4dBi | 100 W | - | - | IP67 | - | - | Base Mount | - | - |
|
|
MHB5800SRF ANT 159MHZ WHIP STR BASE MNT |
27 |
|
Datasheet |
MHB | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | - | - | - | - | Base Mount | - | - |
|

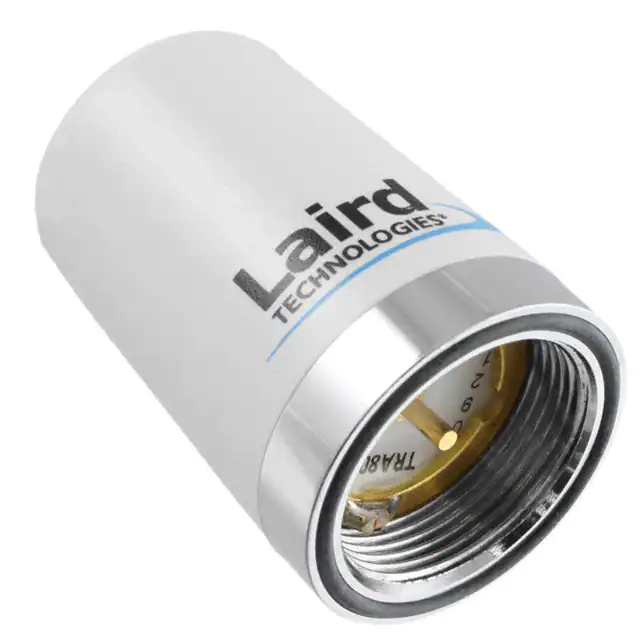

TRA8063RF ANT 836MHZ DOME NMO BASE MT |
17 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | GSM |
|
|
LPT700/800NMOBLACK NMO TRANSIT ANTENNA, 2 DBI |
6 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 803MHz | 740MHz ~ 866MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Panel Mount | 3.250" (82.55mm) | - |
|
NMO40BCOIL / WHIP, UNITY, 40 - 50 MHZ, |
16 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 70MHz | 40MHz ~ 50MHz | Whip, Straight | 1 | - | - | 2dBi | 150 W | - | - | - | - | - | Magnetic | 57.500" (146.05cm) | - |
|
RI.08.A.0121ROADMARKER-ADHESIVE 862-870MHZ S |
58 |
|
Datasheet |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 870MHz | Module | 1 | - | - | 3.9dBi, 3.4dBi, 3.9dBi | 10 W | - | SMA Female | - | - | - | Adhesive | 0.693" (17.60mm) | ISM |
|
|
NMO40BCONMO COIL, UNITY, 40 - 50 MHZ |
23 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 45MHz | 40MHz ~ 50MHz | Whip, Straight | 1 | - | - | - | 150 W | - | - | - | - | - | Magnetic | 3.500" (88.90mm) | - |
|
BB1443RF ANT 159MHZ WHIP STR NMO BASE |
9 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 48.125" (122.24cm) | - |
|
WM.24.A.305111CYCLOPS 2.4 WALL MOUNT FLEXIBLE |
48 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.37dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 12.087" (307.00mm) | Wi-Fi |
|
|
NMO27BCONMO COIL, UNITY, 27 - 31 MHZ |
7 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 28.5MHz | 27MHz ~ 30MHz | Whip, Straight | 1 | - | - | - | 150 W | - | NMO | - | - | - | Magnetic | 4.000" (101.60mm) | - |
|
CFS69383P-30NFAMT OMNI DBAND 30CM NF |
12 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.55GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz | Flat Panel | 10 | 1.8, 2 | - | 3.5dBi, 3.9dBi, 4.8dBi, 4.8dBi, 4.4dBi, 4.5dBi, 4.4dBi, 4.9dBi, 5.4dBi, 4.8dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 0.300" (7.62mm) | AWS, GSM, DCS, LTE, UMTS, WiMax™ |
|
NBR-0043NEBRA 5.8DBI GLASS FIBER LORA AN |
31 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 445MHz | 420MHz ~ 470MHz | Whip, Straight | 1 | - | - | 5.8dBi | 20 W | - | N Type Male | - | - | - | Bracket, Connector Mount | 19.685" (500.00mm) | LoRa |
|
AGPS26GMMSMARF ANT 1.575GHZ MOD SMA M GLASS |
24 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 3dBic | - | Cable - 5.1816m, LNA, Filter | SMA Male | - | - | - | Glass | 0.587" (14.90mm) | GNSS, GPS |
|
NMO450CBASE / WHIP, 3.4 DB, 450 - 470 M |
6 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 462.5MHz | 450MHz ~ 475MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
W1919RF ANT 829MHZ/2.2GHZ MOD SMA ADH |
71 |
|
Datasheet |
Jaguar | Bulk | Active | - | Wide Band | 829MHz, 2.2GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Module | 3 | - | -10dB | -0.42dBi, 1.76dBi, 1.77dBi | 5 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 1.193" (30.30mm) | General Purpose |
|
|
MWV1322SRF ANT 153MHZ WHIP STR BASE MNT |
23 |
|
Datasheet |
MWV | Bag | Active | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 1dBi, 2.4dBi | 150 W | - | - | - | - | - | Base Mount | 48.000" (121.92cm) | - |
|
S765N-915RF ANT 915MHZ DOME N MALE PAN MT |
26 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | 2 | - | 2dBi | - | - | N Type Male | - | - | - | Panel Mount | 2.835" (72.00mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
