RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRPS-20INT-2458BRF ANT 1.5865GHZ DOME QMA MALE |
4 |
|
Datasheet |
- | Box | Active | Navigation, WiFi | Wide Band | 1.5865GHz, 2.45GHz, 5.4GHz | 1.565GHz ~ 1.608GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Dome | 3 | 1.2, 1.4, 2 | - | -2dBic, 3dBic, 9.4dBi, 9.4dBi | 25 W | Cable - 5.1816m | QMA Male (2) | - | - | - | Panel Mount | 3.460" (87.88mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|

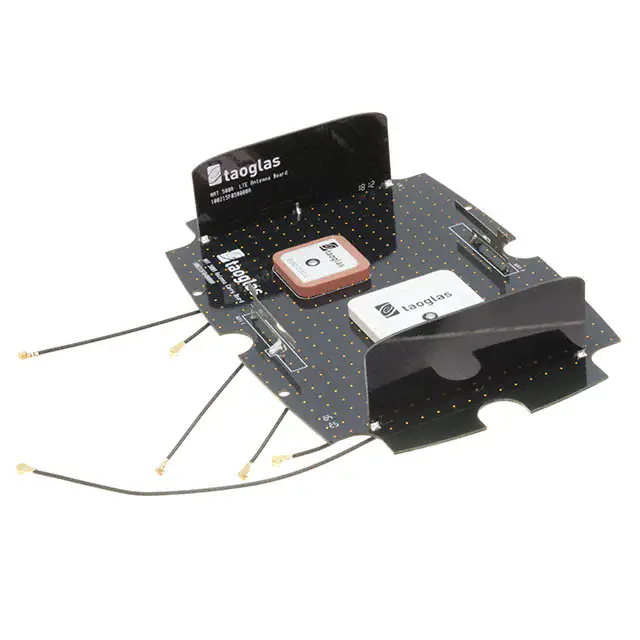

MAT.500.AMAT.500.A 6IN1 INTEGRATED ANTENN |
4 |
|
Datasheet |
- | Box | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.621GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Ceramic Patch | 12 | 2, 2.2, 4 | - | 0.28dBi, 1.7dBi, 1.7dBi, 5.47dBi, 4.9dBi, 5.11dBi, 6.79dBi, 7.06dBi, 6.81dBi, 5.14dBi, 1.35dBi, 4.77dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 1.181" (30.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
PCTWSLMRRF ANT 155MHZ WHIP STR NMO |
21 |
|
Datasheet |
PCTW | Tube | Active | Cellular | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 155MHz, 450MHz, 829MHz | 136MHz ~ 174MHz, 380MHz ~ 520MHz, 698MHz ~ 960MHz | Whip, Straight | 3 | 2 | - | 1dBi | 160 W | - | NMO | IP56 | - | - | NMO Mount | 22.000" (558.80mm) | 2G, 3G, 5G, Cellular, LTE, LMR/TETRA/P25 |
|
MA106.C.LB.001RF ANT 892MHZ/1.94GHZ DOME SMA |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -25dB | 4dBi | 10 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|
DTAD.01.A.50RF ANT 829MHZ/2.2GHZ PCB TRACE |
25 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | PCB Trace | 2 | - | - | 2.5dBi | - | - | SMA Female | - | - | - | Adhesive | 0.197" (5.00mm) | LTE |
|
2108854-1ACTIVE ANT.,MHF,100MM,L1+G1 & L2 |
13 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.225GHz, 1.5845GHz | 1.194GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.2 | - | 28.2dBic ~ 32.8dBic, 29.5dBic ~ 35.2dBic | - | LNA, Filter | RP-SMA Male | - | - | - | Adhesive | 0.709" (18.00mm) | GNSS |
|
CFD69383P1-30NFRF ANT FLAT PNL N TYP FML PNL MT |
13 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|

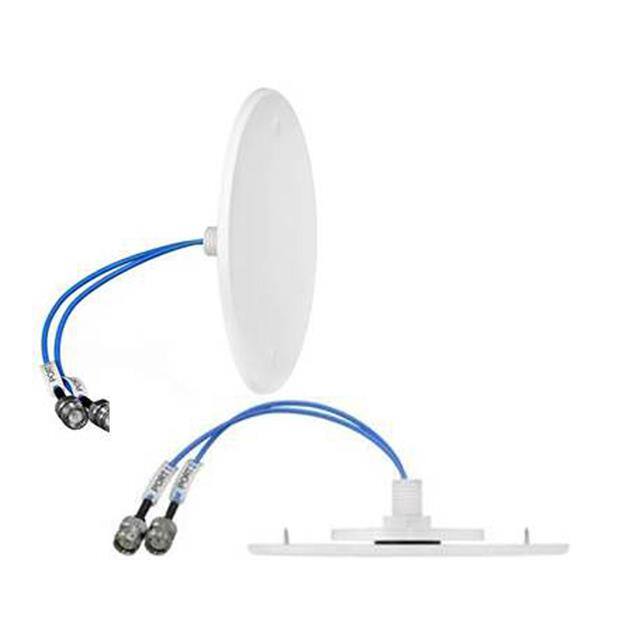

CFD69383P-30NFRF ANT FLAT PNL N TYP FML PNL MT |
5 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|
B1322WRF ANT 132MHZ WHIP STR NMO BASE |
7 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 132MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2.4dB | 100 W | - | NMO | - | - | - | Base Mount | 40.157" (102.00cm) | - |
|
B3803WSRF ANT 450MHZ WHIP STR NMO BASE |
5 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 450MHz | 380MHz ~ 520MHz | Whip, Straight | 1 | 2 | - | 3dBi | 200 W | - | NMO | - | - | - | Base Mount | 9.921" (252.00mm) | - |
|
OMB.8912.05F21RF ANT 850MHZ/900MHZ WHIP STR N |
22 |
|
Datasheet |
Barracuda | Tube | Active | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8MHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | 2 | - | 3.04dBi, 3.03dBi, 4.3dBi, 4.83dBi, 5.56dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 23.425" (595.00mm) | DCS, GSM, PCS, WCDMA |
|
DASUTWC500NFCLARITY WHITE ULTRA THIN CEILING |
20 |
|
Datasheet |
- | Box | Active | Cellular, WiFi | Wide Band | 784MHz, 1.9475GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 4dBi, 6dBi, 6dBi | 40 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
ARM32012DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
16 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.582GHz, 2.2GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE |
|
MA413.A.B.003RF ANT 829MHZ/1.94GHZ DOM SMA 1M |
6 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 3 | - | 8dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | LTE |
|
ARM21011DMRF ANT 829MHZ/1.582GHZ MODULE |
13 |
|
Datasheet |
ARMADILLO | Bulk | Active | - | Wide Band | 829MHz, 1.582GHz, 2.2GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz | Module | 2 | 2, 2.5 | - | 4.6dBi, 4.9dBi, 5.3dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (2) | IP67 | - | - | Adhesive, Magnetic | 1.772" (45.00mm) | General Purpose |
|
CFD69383P-B30D43FRF ANT FLAT PANEL FML PANEL MT |
10 |
|
Datasheet |
CBRS | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|
TRAT1500RF ANT 159MHZ DOME NMO BASE 2.3" |
10 |
|
Datasheet |
Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 150MHz ~ 168MHz | Dome | 1 | - | - | 0dBi | 60 W | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|
TRAT1560RF ANT 164MHZ DOME NMO BASE 2.3" |
10 |
|
Datasheet |
Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 164MHz | 156MHz ~ 172MHz | Dome | 1 | - | - | 0dBi | 60 W | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|
MFB4603RF ANT 465MHZ WHIP STR N TYPE |
3 |
|
Datasheet |
MFB | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 465MHz | 460MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 3dB | 250 W | - | N Type Male | - | - | - | Pole Mount | 51.000" (129.54cm) | ISM, LoRa, LPWAN |
|
710657RF ANT RUGGED 3 IN 1 |
10 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
