RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WMLPV700RF ANT 740-870MHZ WHT/CHROME |
10 |
|
Datasheet |
Trooper | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NMOQSPECSTAINLESS, SPEC BASE / WHIP, UNI |
82 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 548MHz | 136MHz ~ 960MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 22.000" (558.80mm) | - |
|
TANGO52/2.0M/SMAM/S/S/17450MHZ 79MM LENGTH PANEL MOUNT A |
7 |
|
Datasheet |
TANGO 52 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 450MHz | 400MHz ~ 480MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | 50 W | Cable - 2m | SMA Male | - | - | - | Bracket Mount, Panel Mount | 3.110" (79.00mm) | ISM |
|

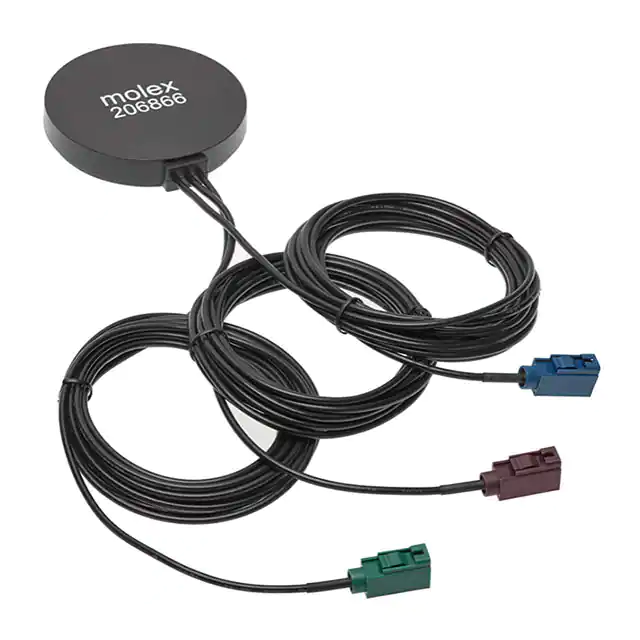

2068663000RF ANT 892MHZ/1.58GHZ SMB ADH |
41 |
|
Datasheet |
206866 | Box | Active | Bluetooth, Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.58GHz, 2.2GHz, 2.44GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.48GHz | - | 4 | 3, 2 | -10dB, -6dB | -0.5dBi, 3dBi, 0dBi, -2.7dBi | - | Cable - 3m | SMB, Fakra | IP66 | - | - | Adhesive | 0.591" (15.00mm) | Bluetooth, Cellular, GPS, Wi-Fi |
|
LPTNGP600/71DMNANT DIPOLE 4G 5G 6E N-FEMALE BLK |
72 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.205GHz, 3.75GHz, 4.7GHz, 5.537GHz, 6.562GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Dome | 6 | 2, 3.5 | - | -1.6dBi, 2.6dBi, 3.8dBi, 2.9dBi, 2.8dBi, 3.4dBi | 60 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.850" (97.80mm) | General Purpose |
|
NMOQSPEC800BSPEC BASE / WHIP, UNITY, 806 - 8 |
17 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 4.000" (101.60mm) | - |
|
|
LPTNGPDC600/71DMNANT DIPOLE 4G 5G 6E N-FEMALE BLK |
96 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.205GHz, 3.75GHz, 4.7GHz, 5.537GHz, 6.562GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Dome | 6 | 2, 3.5 | - | -1.7dBi, 2.6dBi, 4.2dBi, 3dBi, 3.4dBi, 3.7dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.850" (97.80mm) | General Purpose |
|

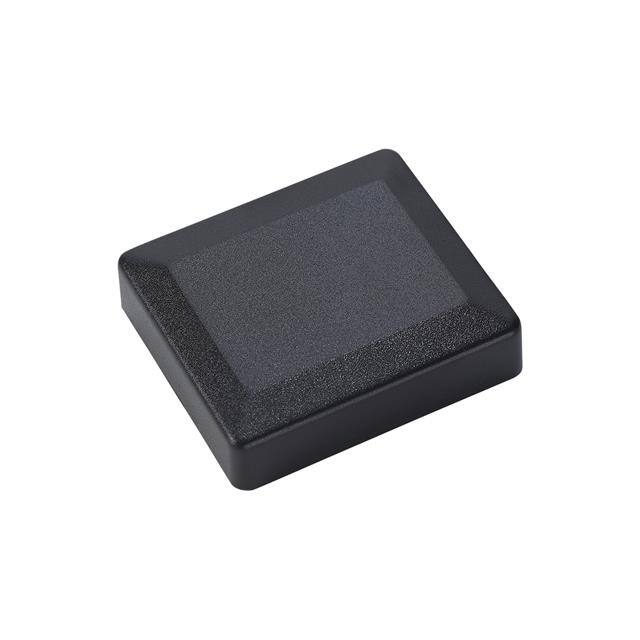

AGPS26MMMSMARF ANT 1.575GHZ MODULE SMA MAGN |
13 |
|
Datasheet |
AGPS26 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 5dBic | - | Cable - 5.1816m, LNA, Filter | SMA | - | - | - | Magnetic | 0.547" (13.90mm) | GNSS, GPS |
.jpg)
|
2108844-1CERAMIC ANT., SMD, L1+G1 & L2+L5 |
40 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.3, 1.4 | - | 5.4dBic, 6dBic | - | - | - | - | - | - | Adhesive | 0.512" (13.00mm) | GNSS |
|
|
ANT-19078EB56RF ANT, CABLE 1:4G/3G/2GCABLE 2: |
47 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 3 | -6dB, -15dB | -0.5dBi, 2.5dBi, 0.4dBi, 0.3dBi, 0.9dBi, 0.4dBi, 3dBi, 0.6dBi, 3.2dBi | 5 W | Cable - 3m, Filter | - | - | - | - | Magnetic | 0.564" (14.32mm) | 2G, 3G, 4G, Galileo, GLONASS, GPS |
|
0600-00048RF ANT 915MHZ WHIP TILT U.FL PAN |
23 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Tilt | 1 | - | - | 2dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | - | - |
MAXMFT(S).jpg)
|
BMAX7633SRF ANT 815MHZ WHIP STR NMO MNT |
25 |
|
Datasheet |
MAX BASE | Bag | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 815MHz | 760MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | - | - | - | - | - | NMO Mount | 14.000" (355.60mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LTE, Wi-Fi |
|
|
BMLPV430MULTIBAND LOW PROFILE ANTENNA |
11 |
|
Datasheet |
MLPV | Bag | Active | - | Wide Band | 5.4GHz | 4.9GHz ~ 5.9GHz | Dome | 1 | 1.5:1 | - | 4dBi | 150 W | - | - | IP67 | - | - | Panel Mount | 1.791" (45.50mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE, Wi-Fi |
|
UTRA4502S3NW-001RF ANT 481MHZ DOME NMO BASE MT |
21 |
|
Datasheet |
Ultra Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 481MHz | 450MHz ~ 512MHz | Dome | 1 | 2.5 | - | 4.1dBi | - | - | NMO | IP67 | - | - | Base Mount | 3.409" (86.60mm) | - |
|

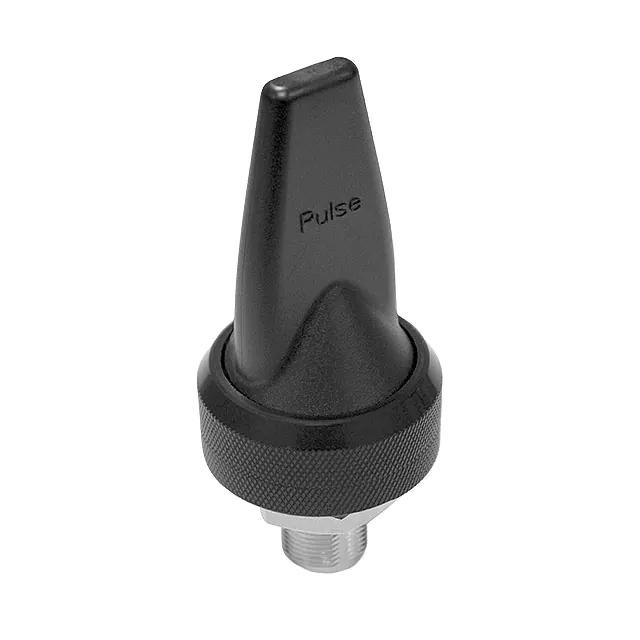

SLPT806DMNRF ANT 850/900MHZ WHIP STR N FEM |
0 |
|
Datasheet |
Shadow | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz) | 850MHz, 900MHz | 806MHz ~ 960MHz | Dome | 1 | 2 | - | 4.5dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.000" (76.20mm) | LTE, WLAN |
|
AEARBD048014-SG3RF ANT 1561/1575/1602MHZ DOME |
88 |
|
Datasheet |
AEAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Puck | 1 | 2 | - | 5.78dBi, 4.27dBi, 5.65dBi | - | Cable - 5m, LNA | SMA | - | - | - | Magnetic | 0.551" (14.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AGGBP.SL.35A.07.0060AGPS/GLONASS/GALILEO/BEIDOU PATCH |
58 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AGPS26MMMCRF ANT 1.575GHZ MODULE SMA MAGN |
46 |
|
Datasheet |
AGPS26 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 5dBic | - | Cable - 431.8mm, LNA | SMA | - | - | - | Magnetic | 0.547" (13.90mm) | GPS |
|
|
H2M1W011129900ANTENNA MODULE NB80DG; GPS(L1+L5 |
6 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Ceramic Patch | 2 | - | -10dB | 2.6dBi, 4.6dBi | - | Cable - 74mm, LNA | I-PEX, MHF | - | - | - | Surface Mount | 0.476" (12.10mm) | GPS |
|
|
LPT450/512NMORF ANT 481MHZ WHIP STR NMO BASE |
32 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 481MHz | 450MHz ~ 512MHz | Whip, Straight | 1 | 2.3 | - | 4.6dBi | 100 W | - | NMO | IP67 | - | - | Base Mount | 3.539" (89.90mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
