RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BNCQBNC BASE / WHIP, UNITY, 136 - 51 |
64 |
|
- |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | - | - | - | - | - | BNC | - | - | - | Bracket Mount | - | - |
|

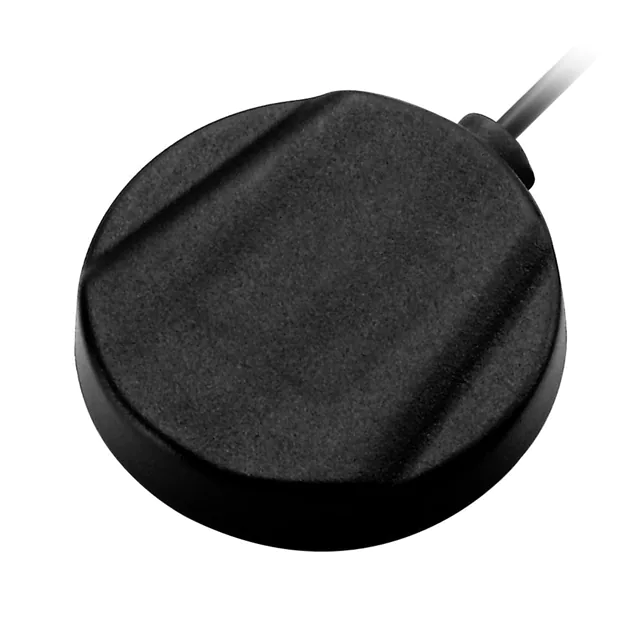

AA.107.301111RF ANT 1.575/1.6GHZ MOD SMA MALE |
100 |
|
Datasheet |
Stingray | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6GHz | - | Module | 2 | 2 | -10dB | 1.36dBi, 0.09dBi | - | LNA, Filter | SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | GLONASS, GPS |
|
GPSDSF.35.7.A.08GPS L1/GALILEO DUAL PIN STACKED |
0 |
|
Datasheet |
- | Tray | Active | Navigation | Wide Band | 1.575GHz, 1.591GHz, 1.602GHz, 2.338GHz, 2.338GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.332GHz ~ 2.345GHz, 1.588GHz ~ 1.594GHz, 2.335GHz ~ 2.341GHz | Ceramic Patch | 5 | - | -10dB | 3.4dBi, 3.6dBi, 4.7dBi | - | - | Pin | - | - | - | Adhesive | 0.281" (7.15mm) | GALILEO, GLONASS, GPS, SDARS |
|
ALPHA19/3M/SMAM/S/S/17RF ANT 1.575GHZ MOD SMA MALE ADH |
10 |
|
Datasheet |
ALPHA 19 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 1dBic | - | - | SMA Male | IP67 | - | - | Adhesive | 0.472" (12.00mm) | GPS |
|
T1551AH-2.4/5.X-SRF ANT 2.4GHZ/5.5GHZ WHIP TILT |
74 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | 2 | - | 5dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 8.035" (204.10mm) | - |
|
PQPL259 BASE / WHIP, UNITY, 144 - |
99 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | - | - | - | - | Magnetic | 22.000" (558.80mm) | - |
|
710407RF ANT 729MHZ MOD SMB F ADH |
36 |
|
Datasheet |
LP70X | Box | Active | Cellular | Wide Band | 729MHz, 875MHz, 2.2GHz | 698MHz ~ 760MHz, 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2, 2.2, 2.5 | - | 1.5dBi, 2.5dBi, 2.2dBi, 5dBi, 4.8dBi, 6dBi | 20 W | Cable - 500mm | SMB Female | IP65 | - | - | Adhesive, Screw | 1.654" (42.00mm) | 2G, 3G, 4G, LTE |
|
T6165AH-LTE-SRF ANT 700MHZ/850MHZ WHIP TILT |
52 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 3 | 3 | - | 2dBi, 3dBi, 3dBi | - | - | SMA Female | - | - | - | Connector Mount | 7.323" (186.00mm) | LTE |
|
T614TR-2.4/4.9/5.X-SRF ANT 2.4GHZ/4.9GHZ WHIP TILT |
34 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 2 | - | 4dBi, 5dBi, 5dBi, 4.5dBi | - | - | RP-TNC | - | - | - | Connector Mount | 6.441" (163.60mm) | - |
|
FW.86.RNT.MRF ANT 868MHZ WHIP STR RP-N MALE |
50 |
|
Datasheet |
Meteor | Bag | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2 | - | 4.7dB | 2 W | - | RP-N Male | IP67 | - | - | Connector Mount | 9.685" (246.00mm) | - |
|
710406RF ANT 729MHZ MOD SMA M ADH |
48 |
|
Datasheet |
LP70X | Box | Active | Cellular | Wide Band | 729MHz, 875MHz, 2.2GHz | 698MHz ~ 760MHz, 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2, 2.2, 2.5 | - | 1.5dBi, 2.5dBi, 2.2dBi, 5dBi, 4.8dBi, 6dBi | 20 W | Cable - 1.5m | SMA Male | IP65 | - | - | Adhesive, Screw | 1.654" (42.00mm) | 2G, 3G, 4G, LTE |
|
T1561AH-2.4/5.X-SFLEXABLE WHIP ANTENNA FOR 2.4GHZ |
47 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | - | 5dBi | - | - | RP-SMA | IP65 | - | - | Connector Mount | 7.795" (198.00mm) | - |
|
W155WHIP, 5/8 OVER 1/2 ENCLOSED, 450 |
99 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NMO150BCONMO COIL, 3 DB, 144 - 174 MHZ |
6 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | - | - | 200 W | - | NMO | - | - | - | Magnetic | 2.500" (63.50mm) | - |
|
WCM.02.01212.4GHZ TWO MONOPOLE CONNECTOR MO |
78 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Module | 1 | - | -10dB | 1.68dBi | - | - | SMA Female | IP67 | - | - | Surface Mount | 0.264" (6.70mm) | General Purpose |
|
PC104R.A.07.0165CRF ANT 892MHZ/1.9GHZ FLAT PATCH |
37 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | - | -7dB, -10dB | 0.99dBi, 2.39dBi | 50 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | CDMA, GSM, UMTS |
|
GSA.8859.A.105111RF ANT 5.9GHZ MODULE SMA ML ADH |
94 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.85GHz ~ 5.925GHz | Module | 1 | 2 | -10dB | 4.84dBi | 5 W | - | SMA Male | IP67 | - | - | Adhesive | 0.394" (10.00mm) | DSRC |
|
NMO3HD800BBASE / WHIP, 3 DB, 806 - 866 MHZ |
17 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 836MHz, 925MHz | 806MHz ~ 866MHz, 890MHz ~ 960MHz | Whip, Straight | 2 | - | - | 5.4dBi, 5.4dBi | 200 W | - | NMO | - | - | - | Magnetic | 13.750" (349.25mm) | - |
|
NMOQ700BBASE / WHIP, UNITY, 740-806 MHZ, |
29 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 773MHz | 740MHz ~ 806MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 4.500" (114.30mm) | - |
|
SPDA17806/2170LARRF ANT 850MHZ/900MHZ WHIP TILT |
54 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | 2.5 | - | 0dBi, 0.5dBi | 10 W | - | - | - | - | - | Connector Mount | 7.500" (190.50mm) | LTE, WLAN |
