RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALPHA11/2.5M/MCXM/S/S/20RF ANT 850MHZ/900MHZ BLADE MMCX |
9 |
|
Datasheet |
ALPHA 11 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | - | Blade | 4 | 1.5 | - | 2.5dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.157" (4.00mm) | GPRS, GSM, UMTS |
|
ALPHA11/2.5M/SMAM/S/S/20RF ANT 850MHZ/900MHZ BLADE SMA |
7 |
|
Datasheet |
ALPHA 11 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | - | Blade | 4 | 1.5 | - | 2.5dBi | - | - | SMA Male | - | - | - | Adhesive | 0.157" (4.00mm) | GPRS, GSM, UMTS |
|
ALPHA41/2M/SMAM/RP/S/194G/LTE FLAT BLADE ADHESIVE ANTEN |
29 |
|
Datasheet |
ALPHA 41 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Flat Bar | 2 | 3.6 | - | 0dBi, 2dBi | 50 W | Cable - 2m | RP-SMA Male | - | - | - | Adhesive | 0.276" (7.00mm) | Bluetooth, GSM, LTE, UMTS, Wi-Fi, Zigbee™ |
|
QWB450-LRF ANT 460MHZ WHIP STR NMO BASE |
12 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 6.000" (152.40mm) | - |
|
TG.22.0112.HTRF ANT 1.5GHZ WHIP RA SMA MALE |
9 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 1 | 2.3 | - | 0dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMA, GSM, UMTS |
|
ICEBLADELSRF ANT 829MHZ/2.2GHZ BLADE SMA |
99 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Blade, Tilt | 2 | 2.5 | - | 2.5dBi | 3 W | - | SMA Male | - | - | - | Connector Mount | 8.798" (223.48mm) | LTE |
|

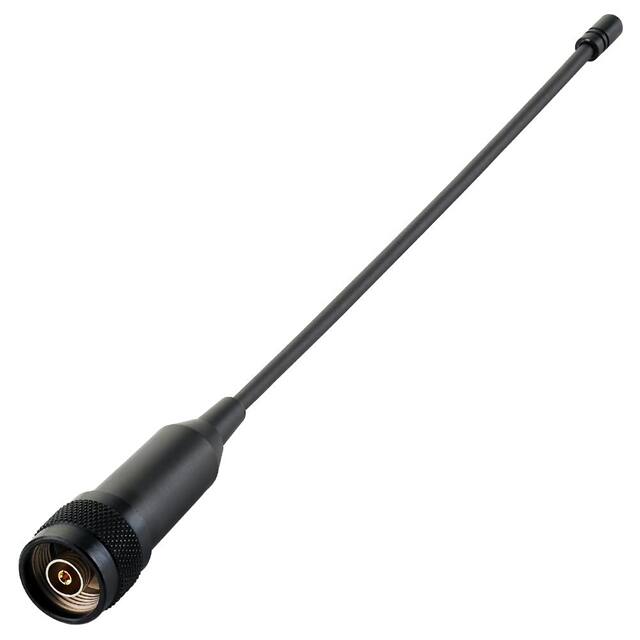

FW.92.RNT.MRF ANT 892MHZ/1.9GHZ WHIP STR |
16 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | - | - | 3.4dBi, 4dBi | - | - | RP-N Male | IP67 | - | - | Connector Mount | 10.787" (274.00mm) | CDMA, GSM |
|
TI.10.0111.HTRF ANT 433MHZ WHIP STR SMA MALE |
98 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Straight | 1 | 1.5 | -17dB | 0dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.898" (48.20mm) | - |
|
|
W490BWHIP, 5/8 WAVE, 27 - 174 MHZ, .1 |
83 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 100.5MHz | 27MHz ~ 174MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|
MIKE11/2M/SMAM/S/S/17RF ANT 1.575GHZ MOD SMA MALE ADH |
9 |
|
Datasheet |
MIKE 11 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 2 | - | 28dB | - | - | SMA Male | - | - | - | Adhesive, Magnetic | 0.669" (17.00mm) | GLONASS, GPS |
|
APAES923R3640C16-TRF ANT 923MHZ CER PATCH PIN ADH |
0 |
|
Datasheet |
APAE | Tray | Active | - | UHF (300MHz ~ 1GHz) | 923MHz | 918MHz ~ 927MHz | Ceramic Patch | 1 | 1.5 | -10dB | 1.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
ALPHA41/3M/SMAM/S/S/194G/LTE FLAT BLADE ADHESIVE ANTEN |
70 |
|
Datasheet |
ALPHA 41 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Blade | 2 | 1.9 | - | 1dBi, 3dBi | - | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.276" (7.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
FW.43.B.SMA.MRF ANT 433MHZ WHIP STR SMA MALE |
94 |
|
Datasheet |
Meteor | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 1.5 | -15dB | 0.4dB | 2 W | - | SMA Male | IP65 | - | - | Connector Mount | - | ISM |
|
2150-00006RF ANT 2.4GHZ PCB TRACE CONN |
15 |
|
Datasheet |
- | Bulk | Not For New Designs | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | - | - | - | Connector | - | - | - | Surface Mount | - | - |
|
T1561AM-2.4/5.X-SFLEXABLE WHIP ANTENNA FOR 2.4GHZ |
7 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | - | 5dBi | - | - | SMA | IP65 | - | - | Connector Mount | 7.795" (198.00mm) | - |
|
SLPT698/960NMORF ANT 829MHZ WHIP STR NMO BASE |
24 |
|
Datasheet |
Shadow | Bulk | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Dome | 1 | 2 | - | 3.29dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 3.099" (78.71mm) | 3G, 4G, DSRC, LTE, ISM, Wi-Fi |
|
H2M1W021129900ANTENNA MODULE NB26DG; GPS(L1+L5 |
13 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | -8dBi, 0.6dBi, 1.3dBi | - | Cable - 95mm, LNA | - | - | - | - | Adhesive | 0.344" (8.75mm) | GLONASS, GPS |
|
NMOQW800STAINLESS BASE / WHIP, UNITY, 80 |
13 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 3.000" (76.20mm) | - |
|
NMOQW406STAINLESS BASE / WHIP, UNITY, 40 |
8 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 418MHz | 406MHz ~ 430MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 7.000" (177.80mm) | - |
|
MIKE2A/3M/LL1/SMAM/S/S/26RF ANT 850/868MHZ WHIP STR SMA |
8 |
|
Datasheet |
MIKE 2A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 6 | 2 | - | 5dBi | - | - | SMA Male | - | - | - | Magnetic | 12.244" (311.00mm) | GPRS, GSM, UMTS |
