Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSEP90-12AZ-TUBDIODE GEN PURP 1.2KV 90A TO268AA |
156 |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | Standard | 1200 V | 90A | 2.69 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | 85 ns | 1 mA @ 1200 V | 48pF @ 600V, 1MHz | - | - | Surface Mount | TO-268AA (D3Pak-HV) | -55°C ~ 175°C |
|
VS-88HF80DIODE GEN PURP 800V 85A DO203AB |
152 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 85A | 1.2 V @ 267 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|

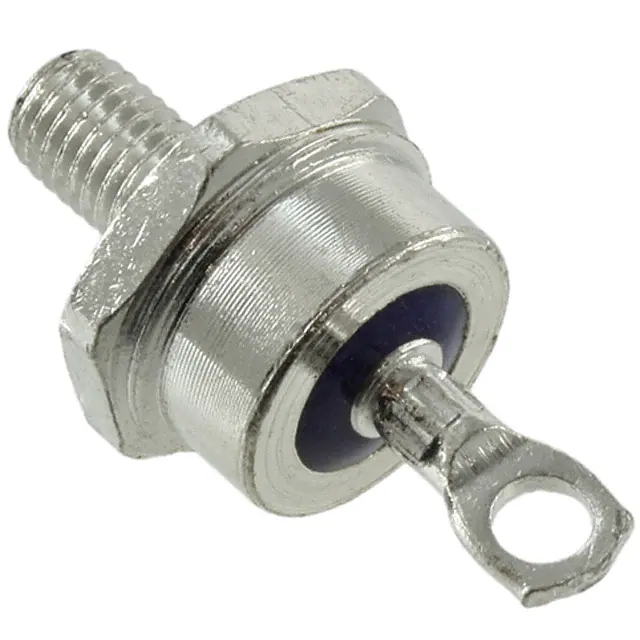

1N2130ARDIODE GEN PURP REV 150V 60A DO5 |
245 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 150 V | 60A | 1.1 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 200°C |
|
|
MSC020SDA120SDIODE SIL CARB 1.2KV 49A D3PAK |
869 |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Surface Mount | D3PAK | -55°C ~ 175°C |
|
VS-85HFR80DIODE GEN PURP 800V 85A DO203AB |
300 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 85A | 1.2 V @ 267 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
STPSC40065CWYDIODE SIL CARB 650V 20A TO247-3 |
207 |
|
Datasheet |
ECOPACK®2 | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 20A | 1.45 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 300 µA @ 650 V | 1250pF @ 0V, 1MHz | Automotive | AEC-Q101 | Through Hole | TO-247-3 | -40°C ~ 175°C |
|
VS-80APF12-M3DIODE GEN PURP 1.2KV 80A TO247AC |
384 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Standard | 1200 V | 80A | 1.35 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 480 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AC | -40°C ~ 150°C |
|
JANTX1N5190DIODE GEN PURP 600V 3A AXIAL |
189 |
|
Datasheet |
- | B, Axial | Bulk | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | - |
|
|
SICPT40120Y-BPDIODE SIC 1.2KV 40A TO247AD |
1,774 |
|
Datasheet |
- | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 40A | 1.6 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1200 V | 2938pF @ 0V, 1MHz | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
DSEP60-12ARDIODE GP 1.2KV 60A ISOPLUS247 |
275 |
|
Datasheet |
HiPerFRED™ | ISOPLUS247™ | Tube | Active | Standard | 1200 V | 60A | 2.66 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 650 µA @ 1200 V | - | - | - | Through Hole | ISOPLUS247™ (BR) | -55°C ~ 175°C |
|
|
S4D40120HDIODE SIC 1.2KV 128A TO247AC |
687 |
|
Datasheet |
- | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 128A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 30 µA @ 1200 V | 3227pF @ 0V, 1MHz | - | - | Through Hole | TO-247AC | -55°C ~ 175°C |
|

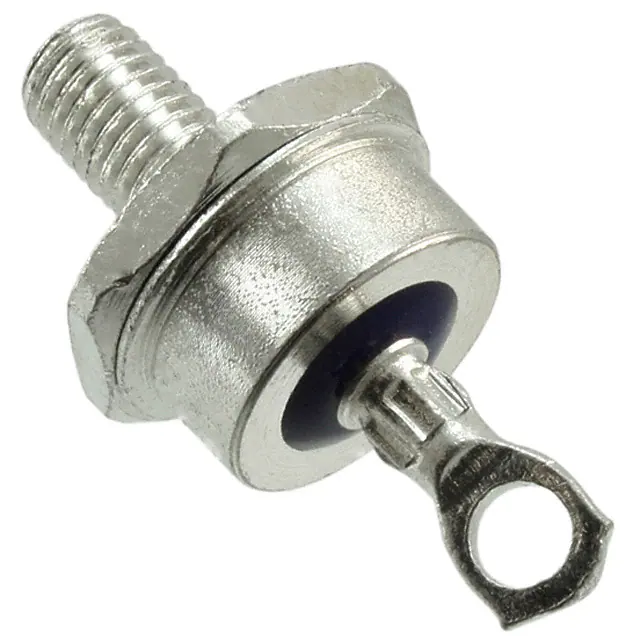

S85QDIODE GEN PURP 1.2KV 85A DO5 |
370 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1200 V | 85A | 1.1 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 180°C |
|
IDW40G65C5BXKSA2DIODE SIL CARB 650V 20A TO247-3 |
240 |
|
Datasheet |
CoolSiC™+ | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 20A | 1.7 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 210 µA @ 650 V | 590pF @ 1V, 1MHz | - | - | Through Hole | PG-TO247-3 | -55°C ~ 175°C |
|
MSC050SDA070BCTDIODE SIL CARB 700V 88A TO247-3 |
274 |
|
Datasheet |
- | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 88A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 700 V | 2034pF @ 1V, 1MHz | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
.jpg)
|
122NQ030-1DIODE SCHOTTKY 30V 120A PRM1-1 |
298 |
|
Datasheet |
- | HALF-PAK | Bulk | Active | Schottky | 30 V | 120A | 490 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 30 V | 7400pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 150°C |
|
|
248NQ100-2DIODE SCHOTTKY 100V 240A PRM1-1 |
178 |
|
Datasheet |
- | HALF-PAK | Bulk | Active | Schottky | 100 V | 240A | 950 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | 5277pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 175°C |
|
|
242NQ030-1DIODE SCHOTTKY 30V PRM1-1 |
211 |
|
Datasheet |
- | HALF-PAK | Bulk | Active | Schottky | 30 V | - | 510 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 30 V | 14800pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 150°C |
|
|
UES1306HR2/TRDIODE GEN PURP 400V 5A B AXIAL |
193 |
|
- |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 5A | 1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 20 µA @ 400 V | - | - | - | Through Hole | B, Axial | - |
|
1N4004-E3/73DIODE GEN PURP 400V 1A DO204AL |
27,000 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Box (TB) | Active | Standard | 400 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 400 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -55°C ~ 150°C |
|
NSVBAS116LT3GDIODE GEN PURP 75V 200MA SOT23-3 |
11,537 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 5 nA @ 75 V | - | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) | -55°C ~ 150°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
