Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3UL-TBA-2A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 12 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
A3UL-TBU-3A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Umber | 24 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A16-TGA-1SWITCH PUSHBUTTON SPDT 5A 125V |
4 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A16-TRA-1SWITCH PUSHBUTTON SPDT 5A 125V |
4 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
82-6151.2133.B002SWITCH PB SPDT 3A 240V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Green | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
XB5AA3341C0HARMONY XB5, PUSH BUTTON, PLASTI |
4 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

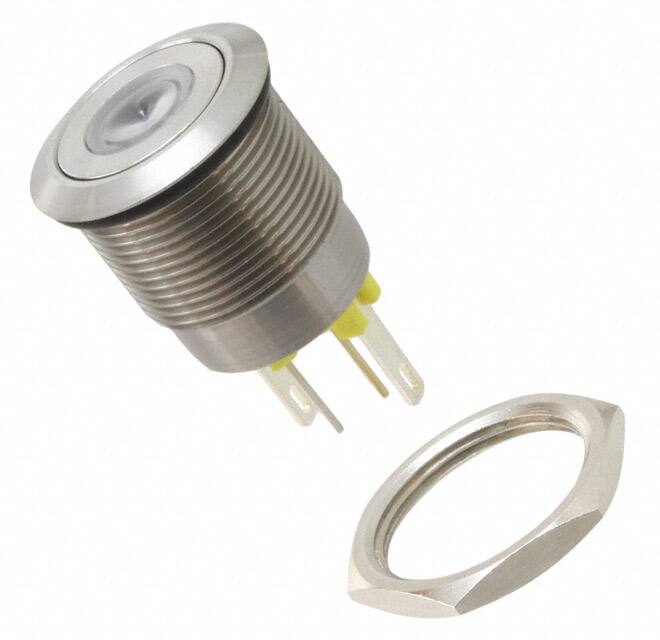

MPI001/28/AMSWITCH PUSH SPST-NO 0.05A 24V |
3 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 2.3 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

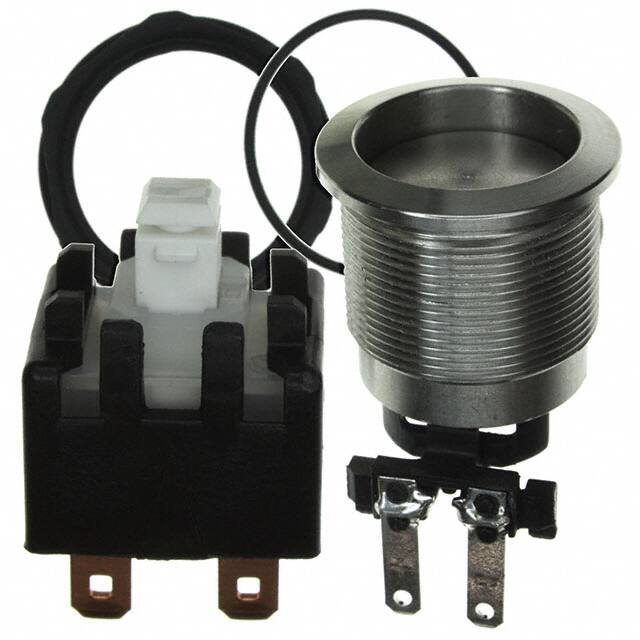

1241.6823.1111000SWITCH PUSHBUTTON SPST 12A 250V |
0 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 1.9 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
PV4F2Y0SS-315SWITCH PUSHBUTTON DPST 2A 24V |
5 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
45-1131.1110.000.402SWITCH PUSH SPST-NC 10A 500V |
1 |
|
Datasheet |
45 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button, Flush | No Marking | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | -25°C ~ 70°C |
|
45-1131.3110.000.102SWITCH PUSH SPST-NC 10A 500V |
2 |
|
Datasheet |
45 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | -25°C ~ 70°C |
|
3-101-431SWITCH PUSHBUTTON SPST 100MA 42V |
0 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 60°C |
|
|
A16-JRM-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A16-TAM-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165-TBA-1SWITCH PUSHBUTTON SPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A3UL-TBA-1A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 5 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
A3UL-TBG-1A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TBW-3A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TBA-1A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 5 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TBG-1A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
