Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DHU301LBUBNBSWITCH PB SPDT 16A 125V |
5 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | LED, Blue | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -40°C ~ 85°C |
|
MAV0120/3D1RD024SWITCH PUSHBUTTON SPST-NO 2A 36V |
0 |
|
Datasheet |
MAV0120 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
MAV0120/3D1BL024SWITCH PUSHBUTTON SPST-NO 2A 36V |
0 |
|
Datasheet |
MAV0120 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

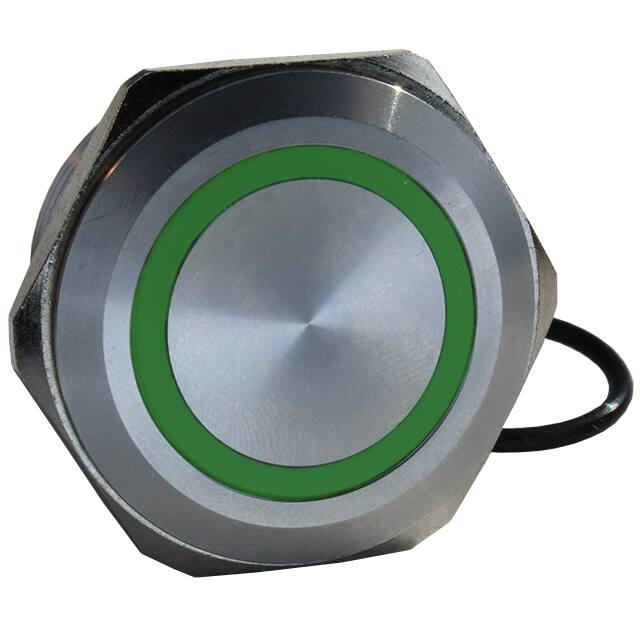

DH301NBSG12SWITCH PB DPST-NO/NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
A3U-TBA-A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
A3U-TBG-A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
1.15.108.176/0000SWITCH PUSH 1NO 1NC 4A 250V |
2 |
|
Datasheet |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 4A (AC), 200mA (DC) | 250 V | 230 V | Rectangular, Button | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
PV4F230SS-334SWITCH PUSHBUTTON SPDT 2A 24V |
4 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
82-4152.1000.B001SWITCH PB SPDT 3A 240V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
82-4152.1000.B002SWITCH PB SPDT 3A 240V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
45-1231.11J6.000.101SWITCH PUSH SPST-NO 10A 500V |
2 |
|
Datasheet |
45 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | -25°C ~ 70°C |
|
3-101-401SWITCH PUSHBUTTON SPST 100MA 42V |
4 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.10mm Dia | -40°C ~ 60°C |
|
|
LB15RKW01-5C12-JCSWITCH PUSHBUTTON SPDT 3A 125V |
2 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

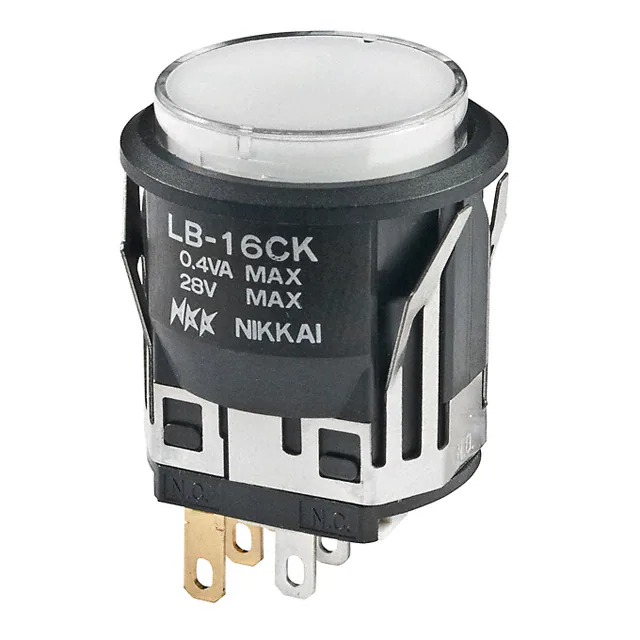

LB16CKG01-6G-JBSWITCH PUSH SPDT 0.4VA 28V |
3 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
A165-AWA-1SWITCH PUSHBUTTON SPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
AV2221E324Q04SWITCH PUSHBUTTON DPDT 3A 250V |
1 |
|
Datasheet |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
A3U-TBA-A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | - | - | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
A3U-TBK-A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Black Filter/Diffuser) | - | - | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
A3U-TBS-A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | - | - | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
A3U-TBY-A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Yellow Filter/Diffuser) | - | - | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
