Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

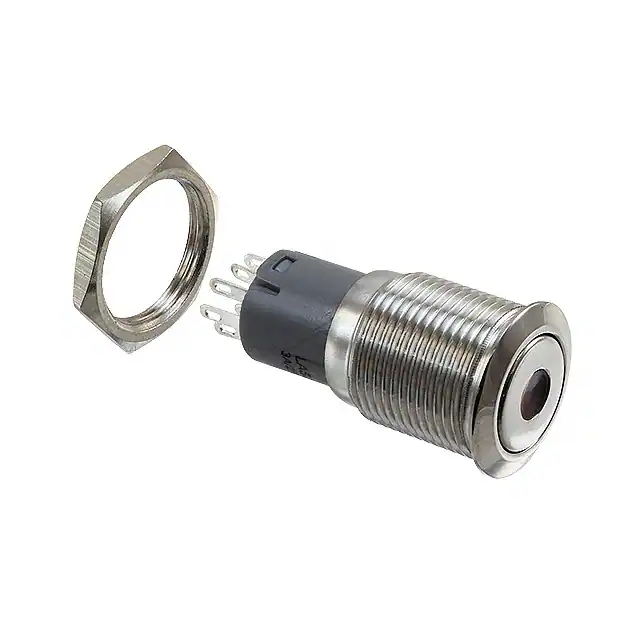

MP0045/1D1BL012SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
A165L-TYA-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
PV9F2Y0SS-305SWITCH PB DPST-NO/NC 2A 48V |
0 |
|
Datasheet |
PV9 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
|
1.15.210.001/0601LUMOSTAST 16 PB NON-ILLUMINABLE |
2 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Round, Button, Flush | No Marking | Blue | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
XB6ECW5B2PILLUMINATED MONOLITHIC PUSH BUTT |
1 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | Off-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Square, Button | - | Yellow | LED, Yellow | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
DHU301LAUXZBSWITCH PB SPDT 16A 125V |
3 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | - | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -40°C ~ 85°C |
|
82-6152.2124.B002SWITCH PB SPDT 3A 240V |
4 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VAC/DC | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
MP0045/1E2GN220SSWITCH PB DPST ON-OFF ILLUM GRN |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 220 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
ATPS19SL5306M4SA04GR+PO, RED, 6V, DD SHA, SPST, MOM |
0 |
|
Datasheet |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|
82-6151.2114.B002SWITCH PB SPDT 3A 240V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
|
ATPS19SL5303M0SA04GR+PO, RED, 3V, RND, SPST, MOM, L |
0 |
|
Datasheet |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 70°C |
|

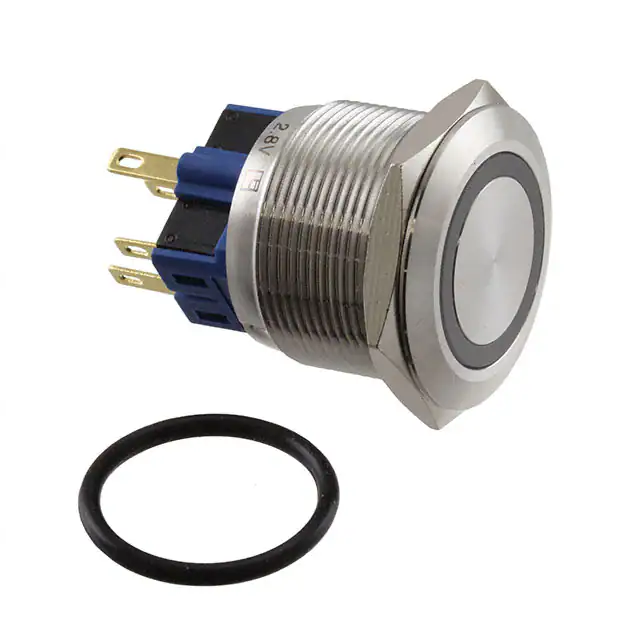

PV8F2Y0SS-341SWITCH PUSHBUTTON DPST 2A 36V |
0 |
|
Datasheet |
PV8, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
82-6151.2124.B001SWITCH PB SPDT 3A 240V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|

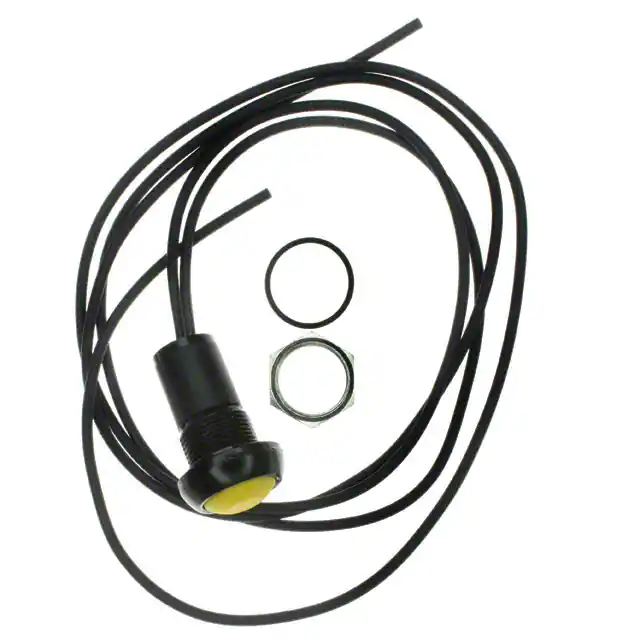

IPR3FAD5SWITCH PUSH SPST-NO 0.5A 48V |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Yellow | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
.jpg)
|
AV2520M124Q04SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
A3U-TBG-A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
4 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
IAR5F1400SWITCH PUSHBUTTON SPDT 2A 24V |
3 |
|
Datasheet |
IA | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | No Marking | Gray | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -20°C ~ 65°C |
|
|
PV8F2T0SS-344SWITCH PUSHBUTTON DPST 2A 36V |
4 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
1.15.108.376/0000SWITCH PUSHBUTTON DPST 4A 250V |
4 |
|
Datasheet |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 4A (AC), 200mA (DC) | 250 V | 230 V | Square, Button, Flush | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
PV10F2V0SS-311SWITCH PB 4PST-2NO/2NC 2A 48V |
2 |
|
Datasheet |
PV10 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 40.00mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
