Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3DJ-90A1-00EGSWITCH PUSH SPST-NO 0.1A 30V |
3 |
|
Datasheet |
A3D | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -10°C ~ 55°C |
|
|
A3UL-TMA-1A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 5 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMA-2A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 12 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMG-1A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMR-2A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMW-1A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 5 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMW-3A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3U-TMR-A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
4 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Red Filter/Diffuser) | - | - | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
A16L-JWA-24D-1SWITCH PUSHBUTTON SPDT 5A 125V |
1 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
IRR3F4B2SWITCH PUSH SPST-NO 0.2A 250V |
1 |
|
Datasheet |
IR | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Blue, Dark | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
PV10F2Y0SS-314SWITCH PB DPST-NO/NC 2A 48V |
0 |
|
Datasheet |
PV10 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 40.00mm Dia | -20°C ~ 55°C |
|
XB6AD233B16MM PUSH BUTTON, HARMONY XB6, S |
4 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
LBW7ML-M1T54GLBW FLUSH ILLD PB MOME. GREEN |
1 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|

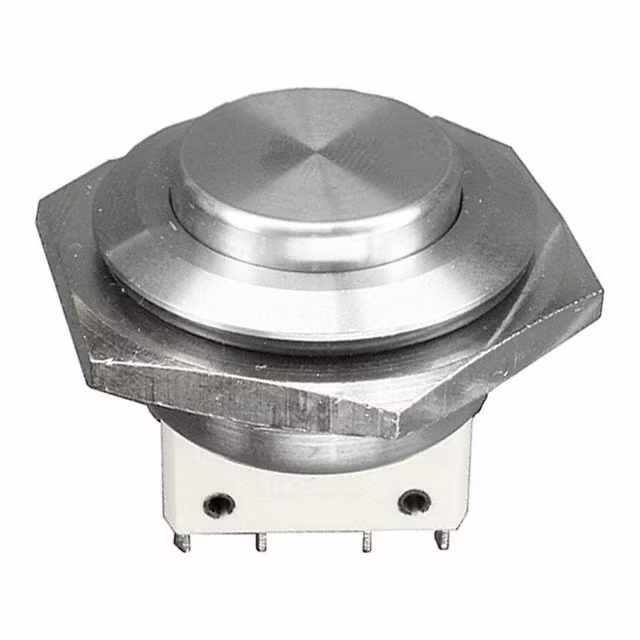

MP0038/2SWITCH PUSHBUTTON DPST 5A 250V |
0 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 28 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP66 - Dust Tight, Water Resistant | - | Circular - 25.80mm Dia | -20°C ~ 70°C |
|
XB7NA15PUSH BUTTON, HARMONY XB7, PB, SP |
5 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
A3UL-TMR-2A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMW-2A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 12 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMY-3A1C-5MSWITCH PUSHBUTTON SPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
AML21EBA2ADSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
XB6CF3B1BCOMPLETE ILLUMINATED PUSH BUTTON |
5 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
