Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E121SD1AV2GESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
E020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
AP4E500TZBESWITCH PUSH SPST-NO 0.125A 125V |
0 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
ULV4F2HSLL37L22SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 220 VAC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
WSA48-B-RB-N-GR-BPBS 12MM SPDT 5A 28V UL61058 MAI |
5 |
|
Datasheet |
WSA48 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Round, Button, Domed | - | Green | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.58mm Dia | -40°C ~ 85°C |
|
PV3FWB011-314SWITCH PB SPDT 2A 48V |
0 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | LED, Red | 12 VDC | Wire Leads | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
AP2D202SZBESWITCH PUSH SPST-NO 0.125A 125V |
0 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|

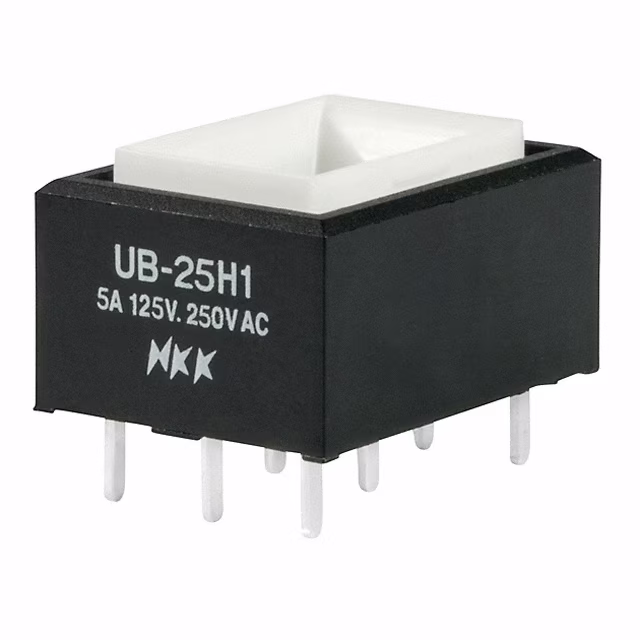

UB25RKW035DSWITCH PUSHBUTTON DPDT 5A 125V |
13 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
LASOAU120GRNSWITCH PUSHBUTTON DPDT 8A 125V |
1 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
MMP0120/NNBSSWITCH PUSHBUTTON SPST-NO 2A 36V |
4 |
|
Datasheet |
MMP0120 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
SW-PB7-03LB32DFRB12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button | No Marking | Silver | LED, Blue | 12 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | -20°C ~ 55°C |
|
AP4D203TZBESWITCH PUSH SPST-NO 0.125A 125V |
3 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
1.15.210.001/0401LUMOSTAST 16 PB NON-ILLUMINABLE |
4 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Round, Button, Flush | No Marking | Yellow | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
PNP8N0T2Y03QE8N, STD THREAD, SPST NO, SOLDER |
0 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

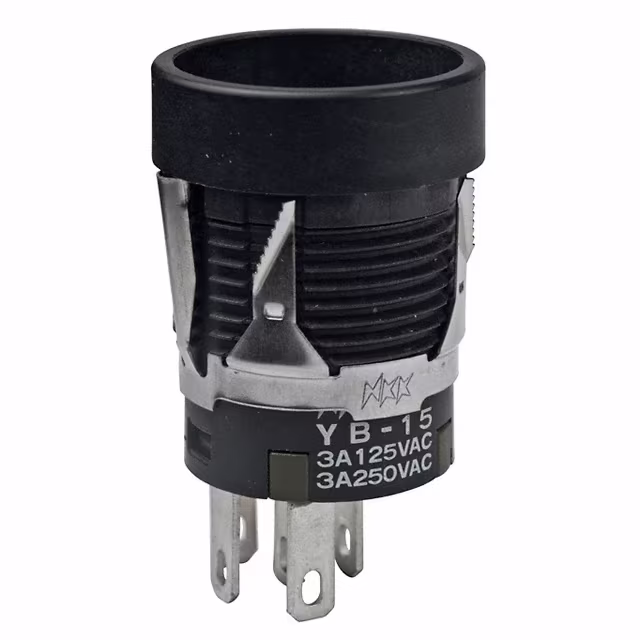

YB15MKW01SWITCH PUSHBUTTON SPDT 3A 125V |
5 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
LB15SKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
4 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
AP2D203TZBESWITCH PUSH SPST-NO 0.125A 125V |
0 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
PV3WH2B0SS-341SWITCH PUSHBUTTON SPDT 2A 48V |
3 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
UB26NKW015DSWITCH PUSHBUTTON DPDT 5A 125V |
1 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Stainless Steel | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

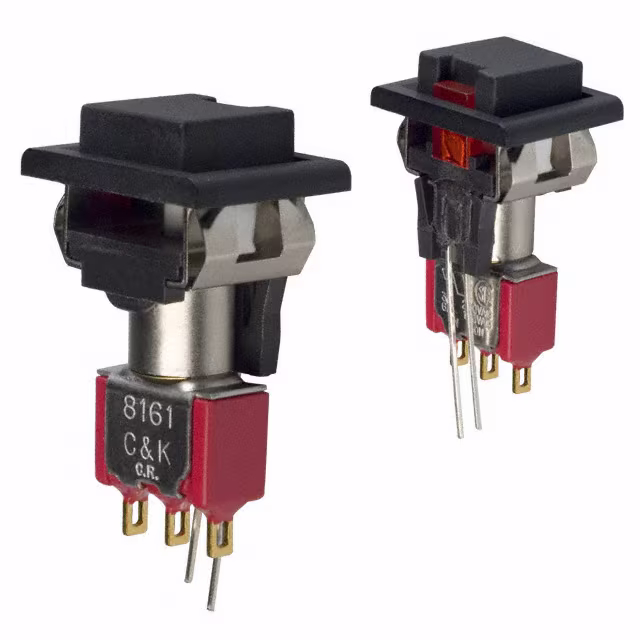

8161J86ZGE223SWITCH PUSHBUTTON SPDT 6A 120V |
0 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

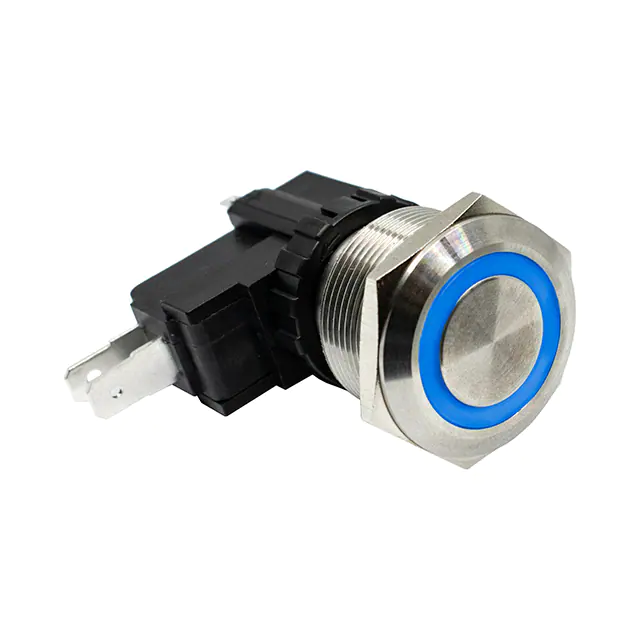

SAV8F1BSS344SWITCH PB SPDT 15A 125V |
2 |
|
Datasheet |
SAV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
