Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV9F2Y0SS-344SWITCH PB DPST-NO/NC 2A 48V |
0 |
|
Datasheet |
PV9, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
|
A22NL-BGA-TWA-G202-WCSWITCH PUSH DPST-NC 10A 120V |
4 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
A22NL-BGM-TWA-G202-WCSWITCH PUSH DPST-NC 10A 120V |
2 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

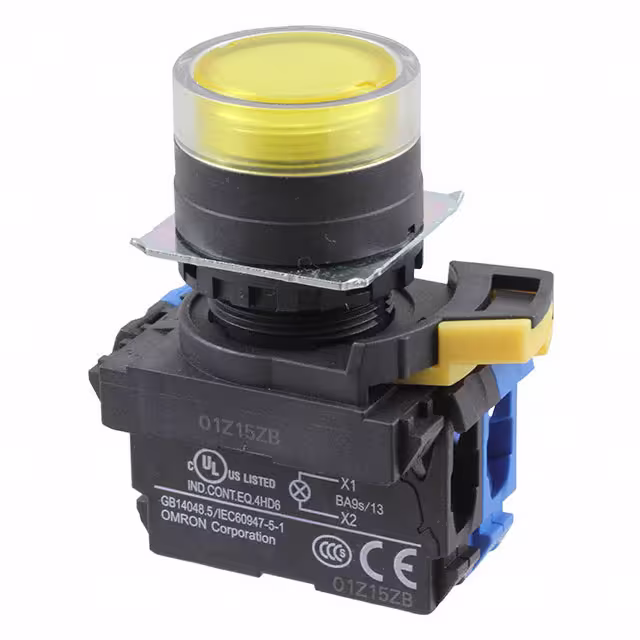

A22NL-BGM-TYA-G100-YCSWITCH PUSH SPST-NO 10A 120V |
1 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
PV7F2T0SS-301SWITCH PUSHBUTTON SPDT 2A 48V |
0 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, White | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|

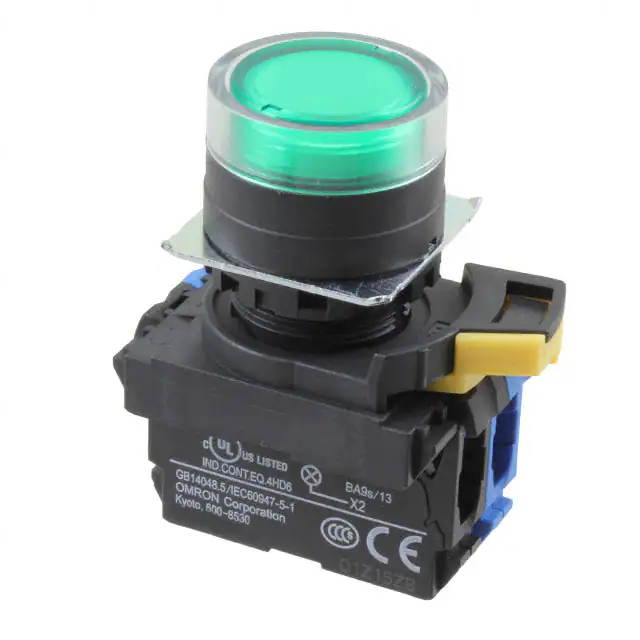

A22NL-BGA-TGA-G100-GCSWITCH PUSH SPST-NO 10A 120V |
2 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGA-TYA-G100-YCSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
A22NL-BGM-TWA-G100-WCSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

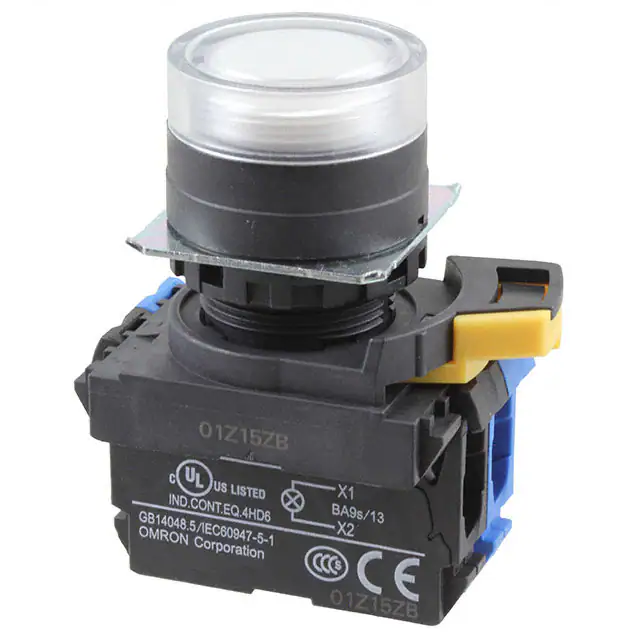

A22NL-BGA-TWA-G100-WCSWITCH PUSH SPST-NO 10A 120V |
5 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
.jpg)
|
AV2510M112Q04SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
ABW120-BGRTW FLUSH PB |
3 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | No Marking | Black, Green, Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
AVH19LSFE7122604SWITCH PUSHBUTTON SPDT 26A 125V |
0 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
DH221NGBRGBNSWITCH PB DPST-NO/NC 2A 125V |
4 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue/Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
DH221NBSRGB6SWITCH PB DPST-NO/NC 2A 125V |
4 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

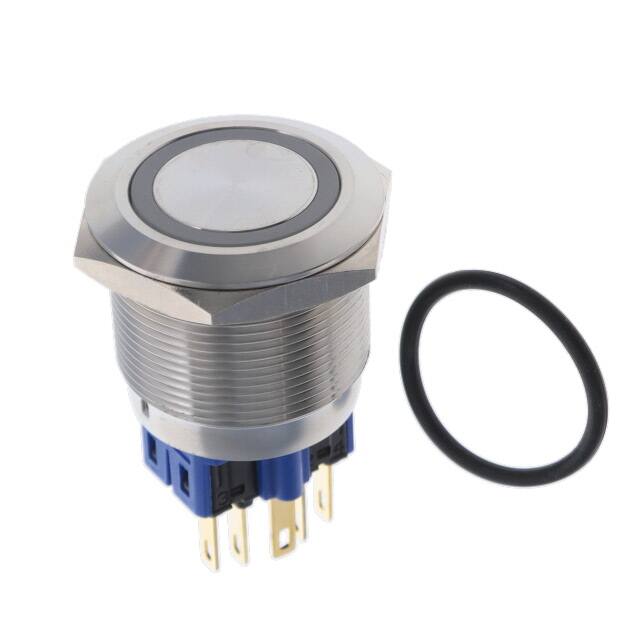

PV8F2T0SS-315SWITCH PB DPST-NO/NC 2A 48V |
3 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
PV8F2V0SS-311SWITCH PUSHBUTTON 4PST 2A 36V |
0 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
DH252LBSR12SWITCH PB 4PST-2NO/2NC 2A 125V |
5 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PDT (DB/DM) | On-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|

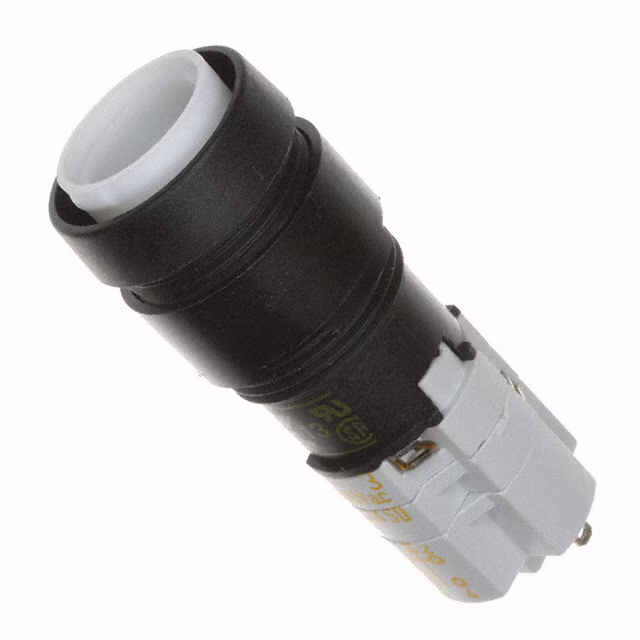

1.15.108.451/0000SWITCH PUSH DPST 4A 250V |
0 |
|
Datasheet |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 200mA (DC) | 250 V | 230 V | Round, Button | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
1.15.210.920/0000LUMOSTAST 16 PB C-LAB |
0 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Plunger for Cap | No Marking | - | LED, White | 28 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
82-6152.1000SWITCH PB SPDT 3A 240V |
4 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
