Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-137-091SWITCH PUSHBUTTON SPDT 100MA |
20 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (AC) | - | 30 V | Round, Button, Flush | - | Silver | LED, White | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
1241.7226.1115000SWITCH PUSHBUTTON SPST 12A 250V |
4 |
|
- |
MSM LA CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
XB6AA22BCOMPLETE PUSH BUTTON, HARMONY XB |
2 |
|
Datasheet |
Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard | SPST-NC | Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
MSM30-NX0010A-SNCSNCNF-RIRGB024-Q0000-SMSM SERIES 30MM METAL LINE SWITC |
12 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -25°C ~ 85°C |
|
3-135-364TTS22 SWITCH LA NO 100MA RI RGB |
4 |
|
Datasheet |
TTS | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Off | 100mA (AC/DC) | 48 V | 60 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 85°C |
|
1241.7226.1124000SWITCH PUSHBUTTON DPST 12A 250V |
4 |
|
- |
MSM LA CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
A165L-AAA-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
CW1H-DM1NGR-CSWITCH PUSHBUTTON 100MA 24V |
10 |
|
Datasheet |
CW | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | 100mA (DC) | - | 24 V | Round, Button, Flush | - | Black | LED, Green/Red | 12 ~ 24 VDC | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
MC25MORRGSW CAPACITIVE SPST-NO 10MA 12V |
8 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Red | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
|
AML22CBR2BDSWITCH PUSHBUTTON DPDT 0.1A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | LED, Green | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
CW1H-DM1TGR-CSWITCH PUSHBUTTON 100MA 24V |
5 |
|
Datasheet |
CW | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | 100mA (DC) | - | 24 V | Round, Button, Flush | - | Black | LED, Green/Red | 12 ~ 24 VDC | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
LBW7ML-M1T54ALBW FLUSH ILLD PB MOME. AMBER |
2 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
A3PA-90B11-24AOSWITCH PUSHBUTTON SPDT 5A 125V |
7 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
1241.8551SWITCH PUSHBUTTON DPST 12A 250V |
8 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
3-101-023SWITCH PUSHBUTTON DPST 16A 250V |
6 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
1241.6964.1121000SWITCH PUSHBUTTON DPDT 5A 125V |
20 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -25°C ~ 85°C |
|
1241.6964.1122000SWITCH PUSHBUTTON DPDT 5A 125V |
10 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -25°C ~ 85°C |
|
A3PJ-90B11-24ARSWITCH PUSHBUTTON SPDT 5A 125V |
5 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
3-137-085SWITCH PUSHBUTTON SPDT 5A 125V |
17 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.00mm Dia | -25°C ~ 85°C |
|

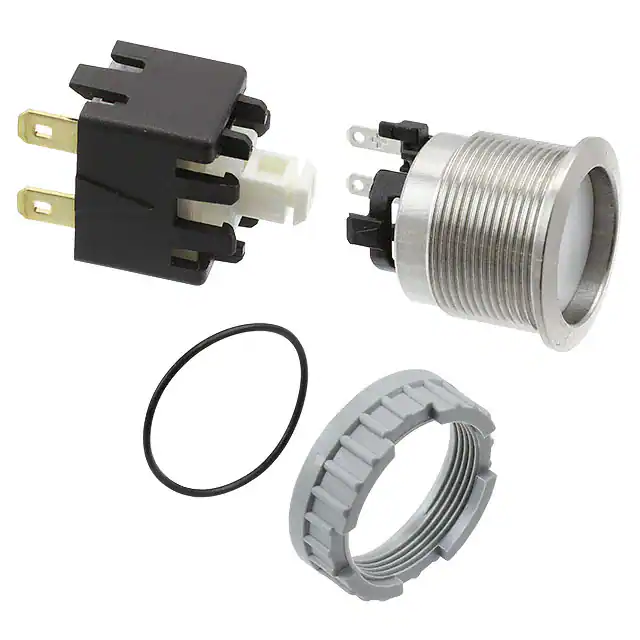

1241.7236.1111000SWITCH PUSHBUTTON SPST 12A 250V |
8 |
|
- |
MSM LA CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
