Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-132-516CHS30 SWITCH MO NO 2A AI RGB P4 |
4 |
|
Datasheet |
CHS | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (AC/DC) | 40 V | 40 V | Rectangular, Button, Flush | - | Silver | LED, Blue/Green/Red | 1.7, 2.6, 2.6 VDC | Wire Leads | - | - | - | -40°C ~ 85°C |
|
1241.6934.1121000SWITCH PUSHBUTTON DPDT 5A 125V |
20 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
MSM22-NXDP05A-SNCSNCNF-RI0BL024-Q0000-SMSM 22, METAL SWITCH, 5 / 3 A SW |
19 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
1241.6634.1181000SWITCH PUSHBUTTON SPDT 5A 250V |
3 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
YB226CWSPG01-6F-JBSPDT ON-(ON) SQUARE PANEL SEAL B |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
XB6CF4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
5 |
|
Datasheet |
Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AE4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
5 |
|
Datasheet |
Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
84-5230.0040E-STOP PUSHBUTTON, 1NC+1NO, NON |
8 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Emergency Stop | SPST-NC | On-Off | 5A (AC/DC) | 250 V | 250 V | Round, Button | No Marking | Red | - | - | Cable Leads | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 65°C |
|
D1021-543SWITCH, PANEL MOUNT, PUSHBUTTON, |
17 |
|
Datasheet |
D1021 | Bulk | Active | Panel Mount, Rear | Standard | - | - | - | - | - | Round, Plunger | No Marking | Black | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
|
46-05-07-502-07SWITCH PUSH SPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 250mA (AC) | 115 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 13.10mm x 11.17mm | -40°C ~ 85°C |
|
A22E-MY-11A22E-MY-11 |
5 |
|
Datasheet |
A22E | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

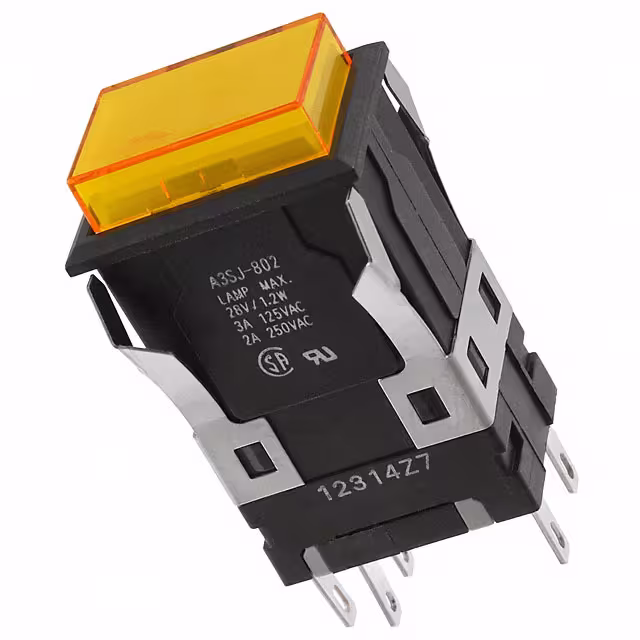

A3SJ-90B1-24SYSWITCH PUSHBUTTON SPDT 3A 125V |
5 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow | LED, White | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
|
3-137-089SWITCH PUSHBUTTON SPDT 5A 125V |
19 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 3.8 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
|
3-137-090SWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Yellow | 2.4 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
|
3-137-092SWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, White | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
A165L-AAA-12D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165L-JAA-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Blue | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
84-5340.0040E-STOP PUSHBUTTON, 2NC, NON ILLU |
10 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Emergency Stop | SPST-NC | On-Off | 5A (AC/DC) | 250 V | 250 V | Round, Button | No Marking | Red | - | - | Cable Leads | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 65°C |
|
|
3-137-093SWITCH PUSHBUTTON SPDT 10A 250V |
20 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | - | Silver | LED, White | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
YB216CWSPW01-N-PSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Brushed Chrome | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
