Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB226CWSKG01-6B-JBDPDT ON-ON PANEL SEAL SQUARE BLA |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
A3SJ-90B1-24SOSWITCH PUSHBUTTON SPDT 3A 125V |
14 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
|
3-137-082SWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, White | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.00mm Dia | -25°C ~ 85°C |
|
|
46-05-08-502-05SWITCH PUSH DPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Blue | - | - | Solder Lug | - | - | Rectangular - 16.28mm x 14.35mm | -40°C ~ 85°C |
|
|
46-05-08-502-01SWITCH PUSH DPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 16.28mm x 14.35mm | -40°C ~ 85°C |
|
|
YB216CWSPW01-6F-JBSPDT ON-ON SQUARE PANEL SEAL BRU |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
A165L-ARA-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
9 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
YB215CWSKW01-N-HBSTD SIZE PUSHBUTTON/NONILLUMINAT |
57 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|

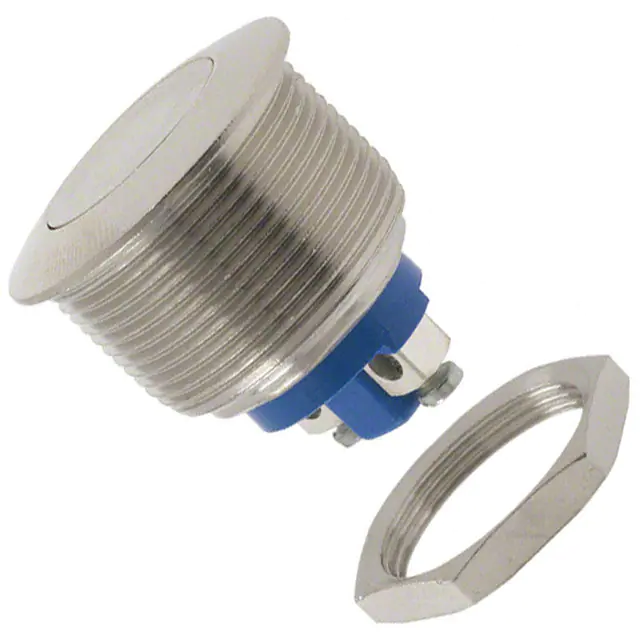

AV031003C900SWITCH PUSH SPST-NO 2A 48V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 22.20mm Dia | -30°C ~ 70°C |
|
|
YB225CWCPW01-5F24-FBDPDT ON-(ON) ROUND PANEL SEAL BR |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB215CWCPW01-6G-JSSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB216CWCPW01-5D24-JSSPDT ON-ON ROUND PANEL SEAL BRUS |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
67041K506XSWITCH PUSHBUTTON DPDT 3A 125V |
5 |
|
Datasheet |
67000 | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | DPDT | - | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 63.52mm x 15.88mm | - |
|
A3SA-90B1-24SOSWITCH PUSHBUTTON SPDT 3A 125V |
4 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
MC22MCSGRSW CAPACITIVE SPST-NC 10MA 12V |
10 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 55°C |
|
MC22MCSRGSW CAPACITIVE SPST-NC 10MA 12V |
8 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 55°C |
|
|
YB225CWCPW01-5C24-JSDPDT ON-(ON) ROUND PANEL SEAL BR |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB225CWCPW01-5D24-JSDPDT ON-(ON) ROUND PANEL SEAL BR |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
AV1630C940SWITCH PUSH SPST-NO 0.2A 48V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 200mA (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
A16L-AGM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
4 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
