Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB215CWSPG01-N-PSPDT ON-(ON) SQUARE PANEL SEAL B |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Brushed Chrome | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
MSM19-NX0005A-SNCSNCNF-RI0RD024-Q0000-SMSM 19, METAL SWITCH, 5 / 3 A SW |
20 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
MSM19-NX0005A-SNCSNCNF-RI0GN024-Q0000-SMSM 19, METAL SWITCH, 5 / 3 A SW |
17 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
MSM19-NX0005A-SNCSNCNF-RI0BL024-Q0000-SMSM 19, METAL SWITCH, 5 / 3 A SW |
10 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
1241.6624.1121000SWITCH PUSHBUTTON SPDT 5A 125V |
8 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
|
3-137-083SWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 1.9 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
|
YB216CWCPW01-5C-CBSPDT ON-(ON) ROUND PANEL SEAL BR |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB215CWCPW01-5C-JSSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCPW01-5D-JSSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB226CWCKW01/CUL-5C12-CBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB226CWCKW01-5C12-CBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB226CWCKW01-5C24-CBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB226CWCKW01-5D24-JBSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
3-102-629MSM MECHANICAL METAL LINE SWITCH |
9 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
1241.6632.3120066SWITCH PUSHBUTTON SPDT 5A 250V |
98 |
|
Datasheet |
MSM | Tray | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
1241.6632.5120061SWITCH PUSHBUTTON SPDT 5A 250V |
10 |
|
Datasheet |
MSM | Tray | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
1241.6632.5120065SWITCH PUSHBUTTON SPDT 5A 250V |
10 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|

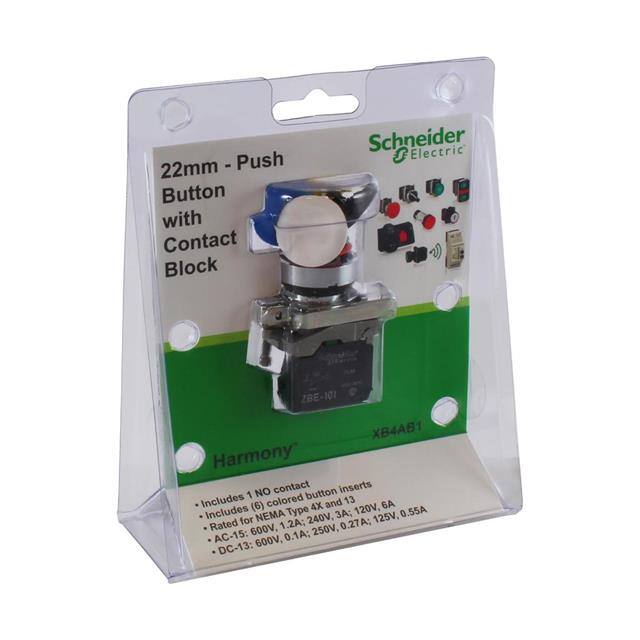

XB4AB1PUSH BUTTON, HARMONY XB4, 22 MM |
8 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
3-137-084SWITCH PUSHBUTTON SPDT 5A 125V |
8 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, White | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.00mm Dia | -25°C ~ 85°C |
|

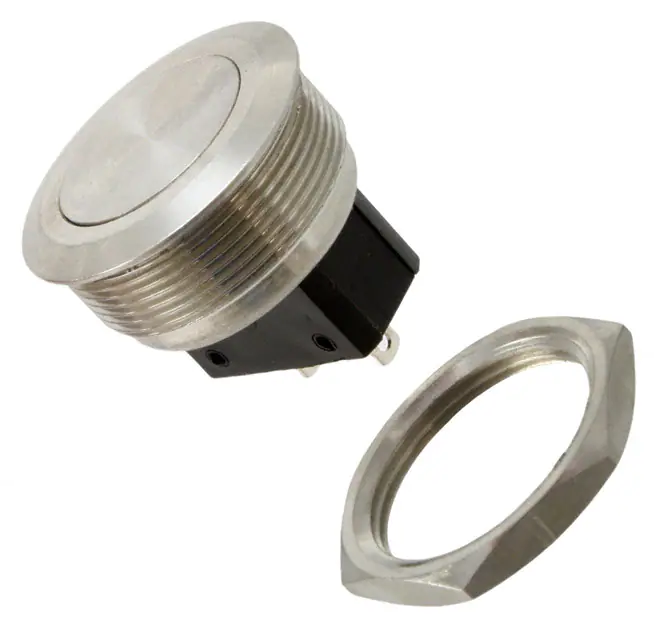

MPL027SWITCH PUSHBUTTON SPST 2A 50V |
0 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 2A (AC/DC) | 50 V | 50 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 25.80mm Dia | -20°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
