Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CH1LDSSSWITCH PB SPDT 1A 125VAC |
17 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LDBSSWITCH PB SPDT 1A 125VAC |
16 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

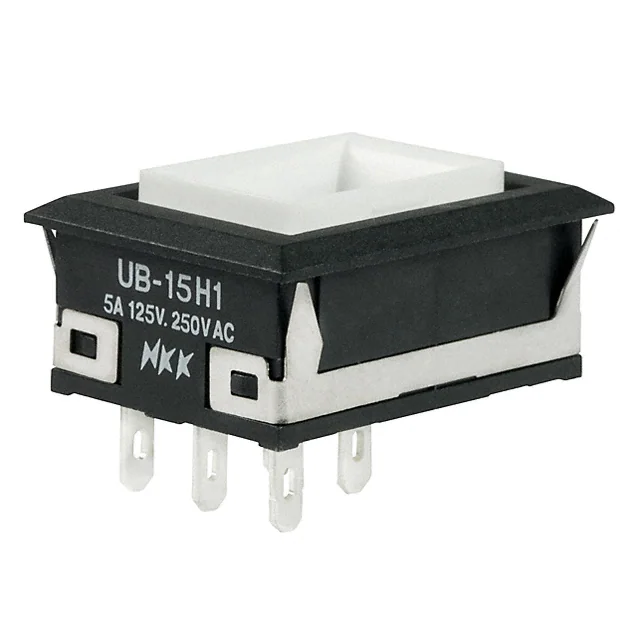

UB15NKW015CSWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
UB15NKW015DSWITCH PUSHBUTTON SPDT 5A 125V |
9 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
BH19NBSBRSWITCH PB SPST 1A 125VAC |
11 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
M2B25AA5G30-HASWITCH PUSHBUTTON DPDT 0.4VA 28V |
6 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
CH1LDRSSWITCH PB SPDT 1A 125VAC |
12 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LDGSSWITCH PB SPDT 1A 125VAC |
7 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
FHNEUBRNSWITCH PB SPST 2A 48VDC |
20 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Blue | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

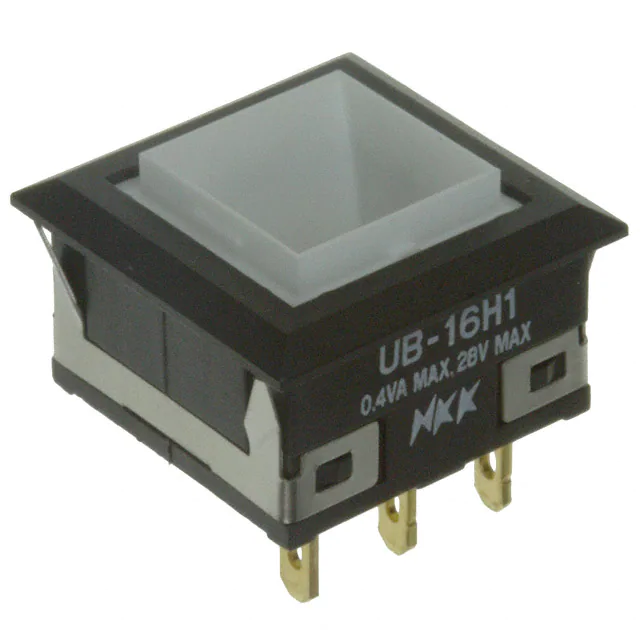

UB16KKG015CSWITCH PUSH SPDT 0.4VA 28V |
6 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

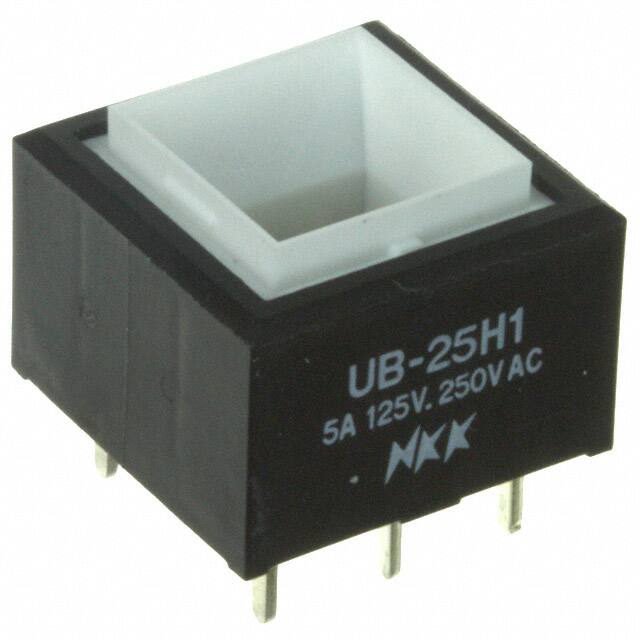

UB25SKW035DSWITCH PUSHBUTTON DPDT 5A 125V |
95 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
UB16KKG015DSWITCH PUSH SPDT 0.4VA 28V |
8 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB16KKG015FSWITCH PUSH SPDT 0.4VA 28V |
1 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
CH1LDUSSWITCH PB SPDT 1A 125VAC |
20 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

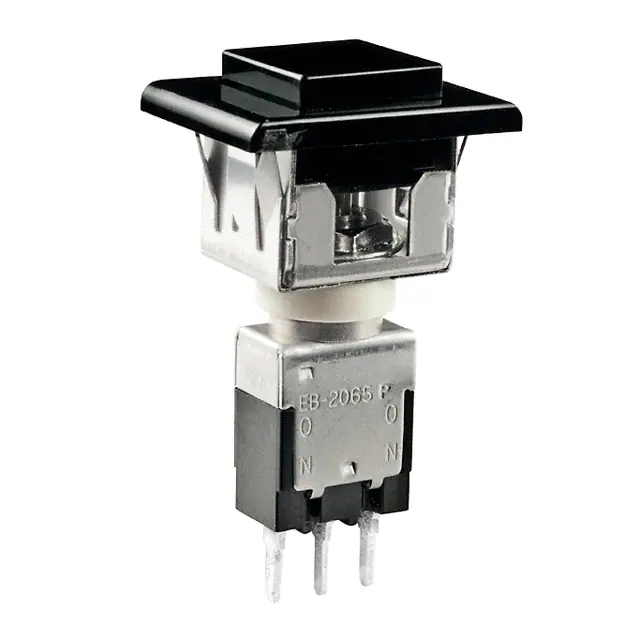

EB2065P-A-J31ASWITCH PUSHBUTTON SPDT 3A 125V |
19 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
PVB3H230SS331ANTI-VANDAL, 2A, SPDT, ON-ON |
72 |
|
Datasheet |
PVB3 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 500mA (AC), 2A (DC) | 220 V | 24 V | Round, Button | - | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
PVB3H230SS341ANTI-VANDAL, 2A, SPDT, ON-ON |
32 |
|
Datasheet |
PVB3 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 500mA (AC), 2A (DC) | 220 V | 24 V | Round, Button | - | Silver | LED, Blue | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
BH19NBSBGSWITCH PB SPST 1A 125VAC |
13 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 55°C |
|

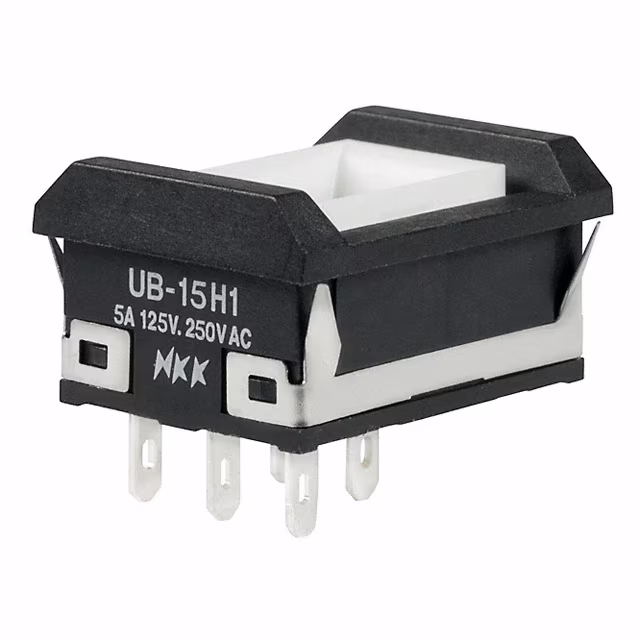

UB15NBKW015FSWITCH PUSHBUTTON SPDT 5A 125V |
16 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

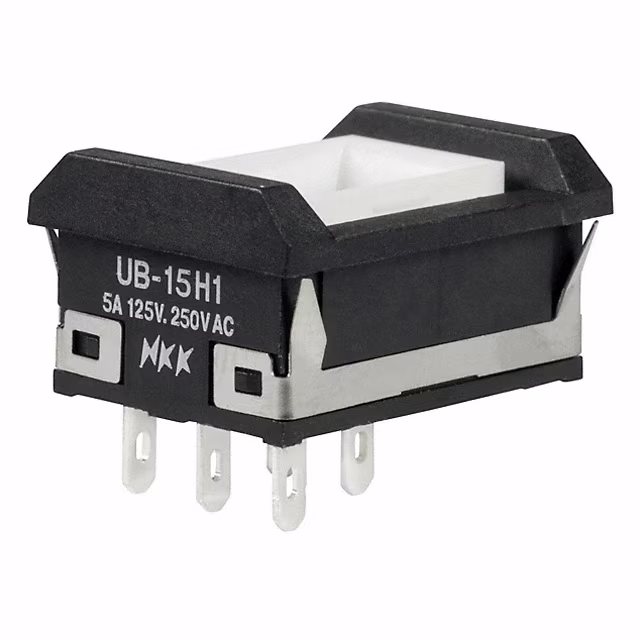

UB15NBKW015CSWITCH PUSHBUTTON SPDT 5A 125V |
17 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
