Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVC19MS04FE1DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
90 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
AV0630C940SWITCH PUSH SPST-NO 0.2A 48V |
25 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 200mA (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
|

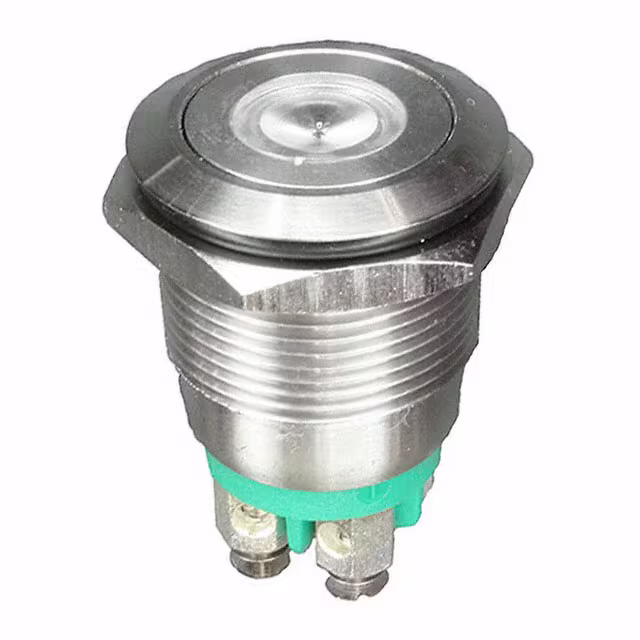

MPI001/TERM/GNSWITCH PUSH SPST-NO 0.05A 24V |
50 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 3.5 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
UB216KKW016DG-5JDG13SWITCH PUSHBUTTON SPDT 5A 125V |
9 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
A3UL-TMU-1A1C-5M-SSWITCH PUSHBUTTON SPDT 0.1A 30V |
20 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Umber | 5 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
A165L-TYM-24D-1SWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A165L-TYM-5D-1SWITCH PUSHBUTTON SPDT 5A 125V |
9 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Yellow | LED, Yellow | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

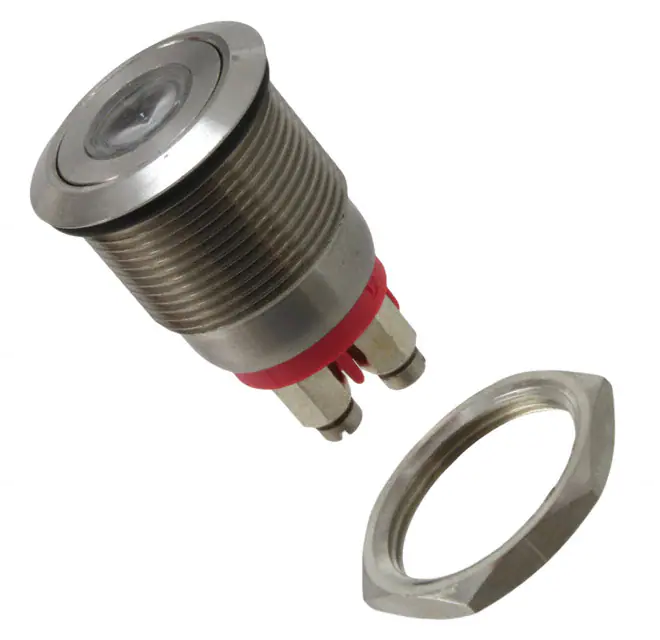

MPI001/TERM/RDSWITCH PUSH SPST-NO 0.05A 24V |
29 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.85 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
MPI002/TE/RD/12SWITCH PUSH SPST-NO 0.05A 24V |
13 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
MPI002/TE/GN/6SWITCH PUSH SPST-NO 0.05A 24V |
8 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 6 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
CS7M2FRSWITCH PB SPST 1A 24V |
64 |
|
Datasheet |
CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
LPI3124G1K247XXSWITCH PUSH SPST-NO 0.05A 24V |
12 |
|
Datasheet |
LPI | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | White | LED, Green | 5 VDC | Screw Terminal | IP53 - Dust Protected, Water Resistant | - | Circular - 38.10mm Dia | -20°C ~ 65°C |
|
PV10F2V0SS-331SWITCH PB 4PST-2NO/2NC 2A 48V |
9 |
|
Datasheet |
PV10 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 40.00mm Dia | -20°C ~ 55°C |
|
IRR3V262000SWITCH PUSH SPST-NO 2A 250V |
36 |
|
Datasheet |
IR | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (AC), 4A (DC) | 250 V | 48 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
IPR1SAD5L0SSWITCH PUSHBUTTON SPST 4A 12V |
23 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Yellow | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
MC19MCSGRSW CAPACITIVE SPST-NC 10MA 12V |
55 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -25°C ~ 55°C |
|
A16L-AWM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
6 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
MPI002/TE/GN/12SWITCH PUSH SPST-NO 0.05A 24V |
50 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
ZAP-GSWITCH PUSHBUTTON SPDT 15A 125V |
8 |
|
Datasheet |
ZAP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 80°C |
|
01-151.022SWITCH PB DPST-NO/NC 5A 250V |
8 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
