Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB226SKW036CF-5JCF11SWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
MPI001/TE/RD/24SWITCH PUSH SPST-NO 0.05A 24V |
7 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
A165L-TGM-12D-1SWITCH PUSHBUTTON SPDT 5A 125V |
11 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Green | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
MPI002/28/AMSWITCH PUSH SPST-NO 0.05A 24V |
50 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 2.3 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
A16L-JRA-12D-1SWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
YB226CWSKW01-5F05-FBDPDT ON-ON PANEL SEAL SQUARE BLA |
25 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
MPI002/28/AM/24SWITCH PUSH SPST-NO 0.05A 24V |
51 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
MC16MOSGRSW CAPACITIVE SPST-NO 10MA 12V |
52 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

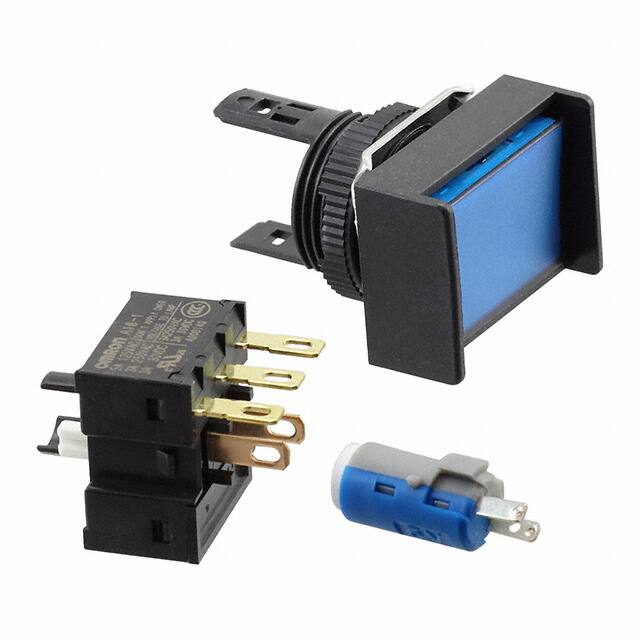

A16L-JAM-5D-1SWITCH PUSHBUTTON SPDT 5A 125V |
7 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Blue | LED, Blue | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

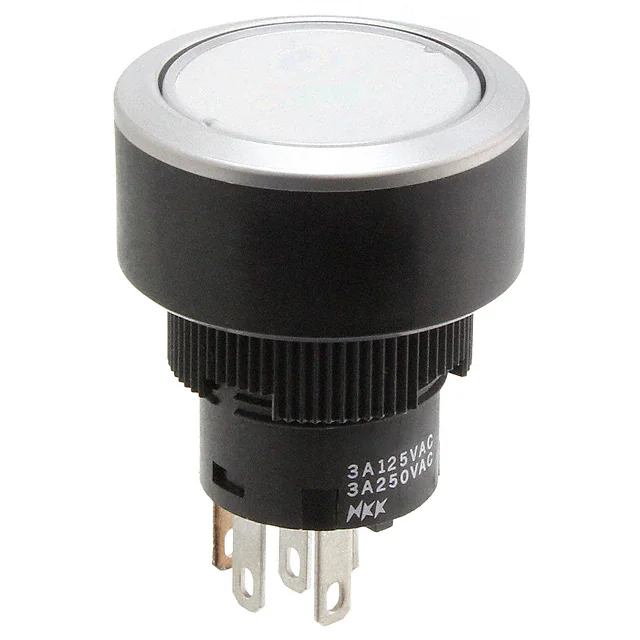

YB216CWCPW01-5C-JSSWITCH PUSHBUTTON SPDT 3A 125V |
12 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
IPR1SAD2L0SSWITCH PUSHBUTTON SPST 4A 12V |
89 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IPR1SAD6L0SSWITCH PUSHBUTTON SPST 4A 12V |
33 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Red | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
A165L-TRA-5D-1SWITCH PUSHBUTTON SPDT 5A 125V |
7 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Red | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
82-6151.2A34.B001SWITCH PB SPDT 3A 240V |
7 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
A16L-JGA-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
9 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
XB6CA25BCOMPLETE PUSH BUTTON, HARMONY XB |
53 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
01-281.025SWITCH PB DPST-NO/NC 5A 250V |
18 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
AML21CBA3ACSWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | - | PC Pin | - | - | Square - 19.05mm x 19.05mm | - |
|
IZPP3S432L0GSWITCH PUSH SPST-NO 0.2A 250V |
87 |
|
Datasheet |
IZ | Tray | Active | Panel Mount, Rear | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -40°C ~ 85°C |
|
MPI001/TERM/BLSWITCH PUSH SPST-NO 0.05A 24V |
18 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.5 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
