Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV3F2H0NN-334SWITCH PUSHBUTTON DPDT 2A 48V |
50 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
18235WAD3SWITCH PUSHBUTTON SPDT 1A 125V |
82 |
|
Datasheet |
18000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
LB16CKG01SWITCH PUSH SPDT 0.4VA 28V |
9 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

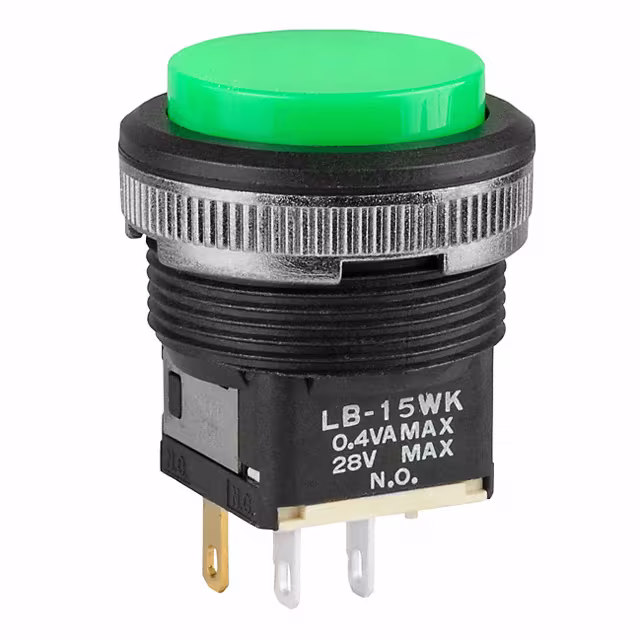

LB15WKG01-FJSWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
A3UL-TBW-1A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
6 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 5 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
UB215SKG035D-1JBSWITCH PUSH SPDT 0.4VA 28V |
20 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | RTV Adhesive Sealant on Terminals | - | -25°C ~ 50°C |
|

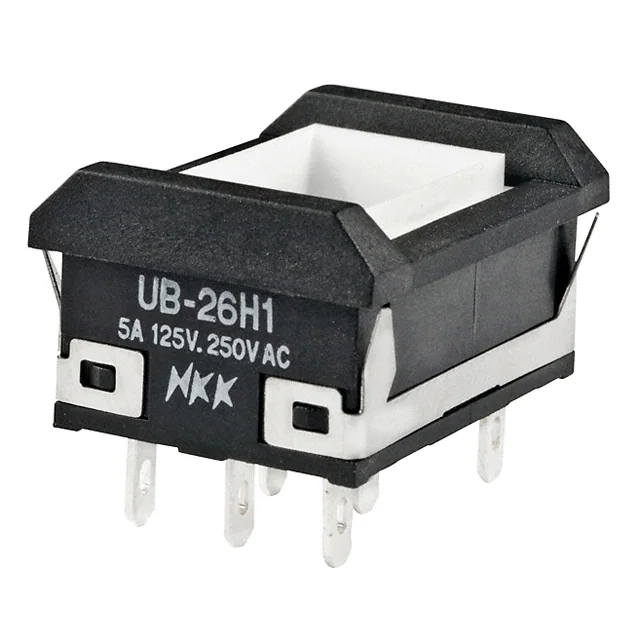

UB26NBKW015CSWITCH PUSHBUTTON DPDT 5A 125V |
10 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
UB215SKG035C-1JCSWITCH PUSH SPDT 0.4VA 28V |
40 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | RTV Adhesive Sealant on Terminals | - | -25°C ~ 50°C |
|

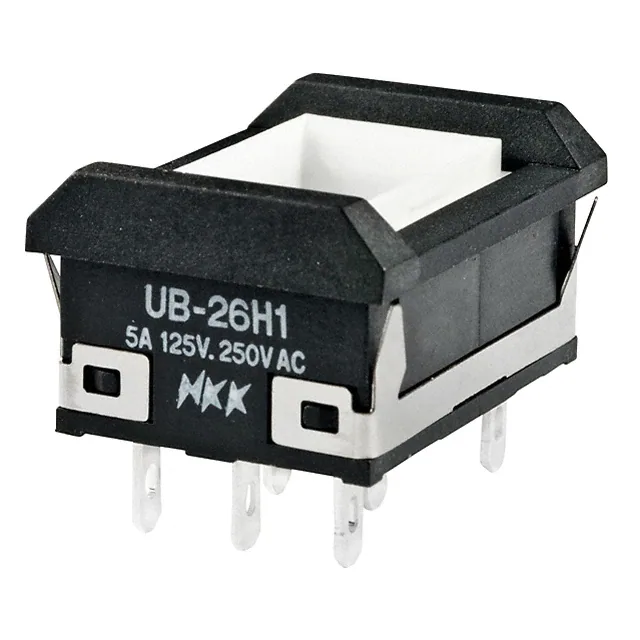

UB26NBKW015DSWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
ULV4F2BSS335SWITCH PUSHBUTTON SPDT 3A 125V |
52 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
YB15MKW01-BBSWITCH PUSHBUTTON SPDT 3A 125V |
29 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

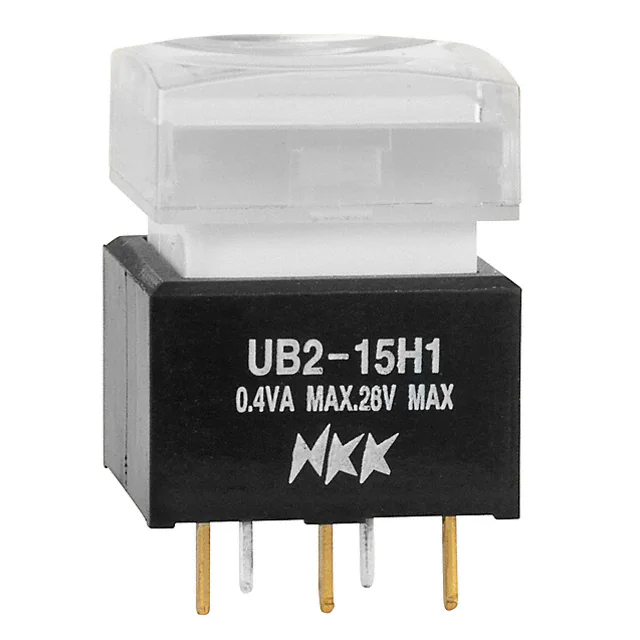

UB215SKG035F-1JBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Sealed | - | -25°C ~ 50°C |
|
|
LB15SKW01-BSWITCH PUSHBUTTON SPDT 3A 125V |
17 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
LB15WKG01-BJSWITCH PUSH SPDT 0.4VA 28V |
34 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
PNP8E2D2C03QESWITCH PUSHBUTTON SPDT 5A 32V |
92 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
WSA57M-213NPBS 16MM SPDT 5A 28V UL61058 MAI |
38 |
|
Datasheet |
WSA57M | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (DC) | - | 28 V | Round, Button | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.15mm Dia | -40°C ~ 85°C |
|
|
UB215KKW015D-3JDSWITCH PUSHBUTTON SPDT 5A 125V |
36 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

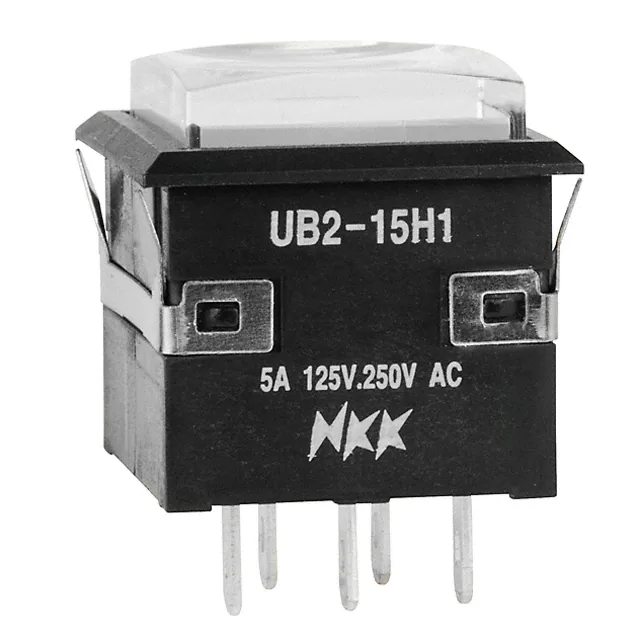

UB215KKW015F-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
13 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
JPM26PSWITCH PUSH DPST 10A 125V |
4 |
|
Datasheet |
JP | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 10A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
MMP0120/NNBPSWITCH PUSHBUTTON SPST-NO 2A 36V |
26 |
|
Datasheet |
MMP0120 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
