Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

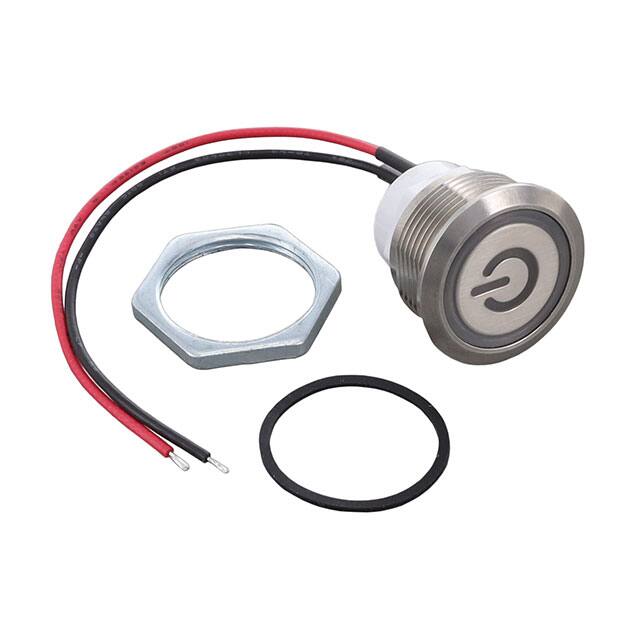

W48M-113BPBS 19MM SPST 0.1A 48V MOM METAL |
62 |
|
Datasheet |
W48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 250mA (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, Blue | 3.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
PNP8S2D2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V |
24 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
AVH22MSSFO001604SWITCH PUSHBUTTON SPDT 16A 125V |
83 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
UB25KKG015D-DDSWITCH PUSHBUTTON DPDT 0.4VA 28V |
16 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

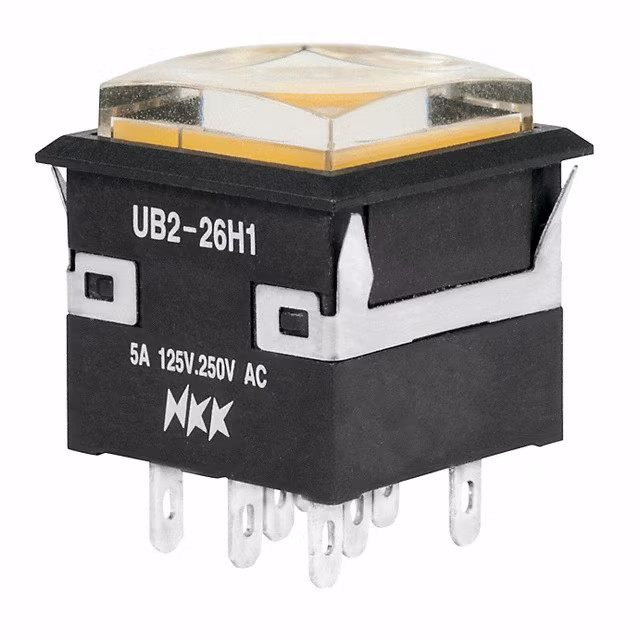

UB226KKW015D-1JDSWITCH PUSHBUTTON DPDT 5A 125V |
20 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
PNP8E5D2Y03QESWITCH PUSHBUTTON SPST-NO 5A 32V |
43 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
W48M-612BSWITCH PUSHBUTTON 10MA 12V |
80 |
|
Datasheet |
W48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST (DM) | Off-On | 10mA (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, Blue | 3.1 VDC | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
PV4F2B0SSSWITCH PB SPDT 2A 24V |
22 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
YB15SKW01-BBSWITCH PUSHBUTTON SPDT 3A 125V |
16 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB15SKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
13 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LBSRNSSWITCH PB DPDT 1A 125V |
46 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LGSBNSSWITCH PB DPDT 1A 125V |
22 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB16RKW01-CSTD SIZE PUSHBUTTON/ILLUMINATED/ |
18 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|

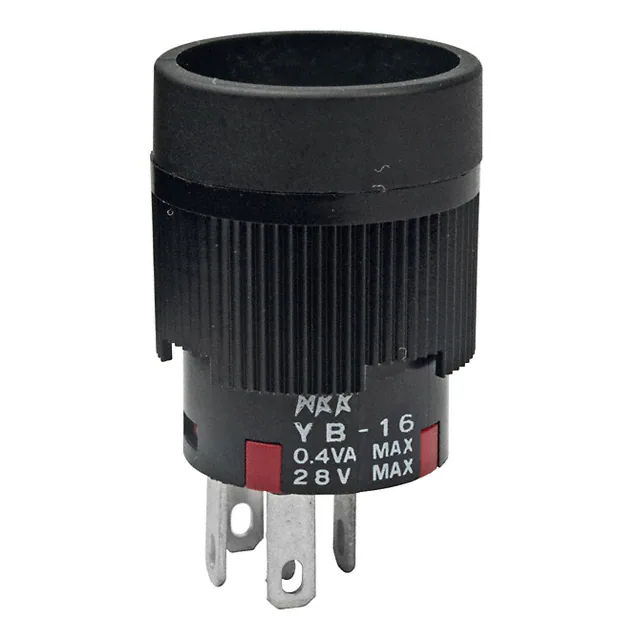

YB16CKG01SWITCH PUSH SPDT 0.4VA 28V |
37 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
UB26KKG015F-JFSWITCH PUSH DPDT 0.4VA 28V |
21 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
DH22U1NBSG12SWITCH PB SPDT 3A 125V |
19 |
|
Datasheet |
DH22U | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
LB15SKG01-ASWITCH PUSH SPDT 0.4VA 28V |
76 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

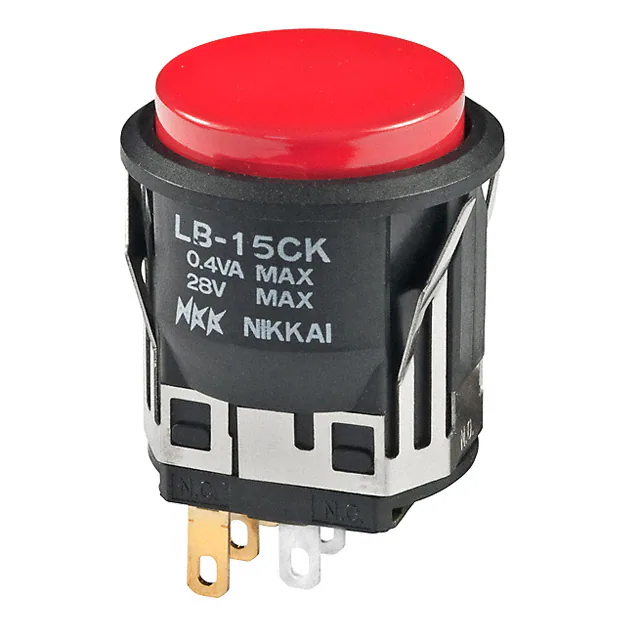

LB15CKG01-CSWITCH PUSH SPDT 0.4VA 28V |
37 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

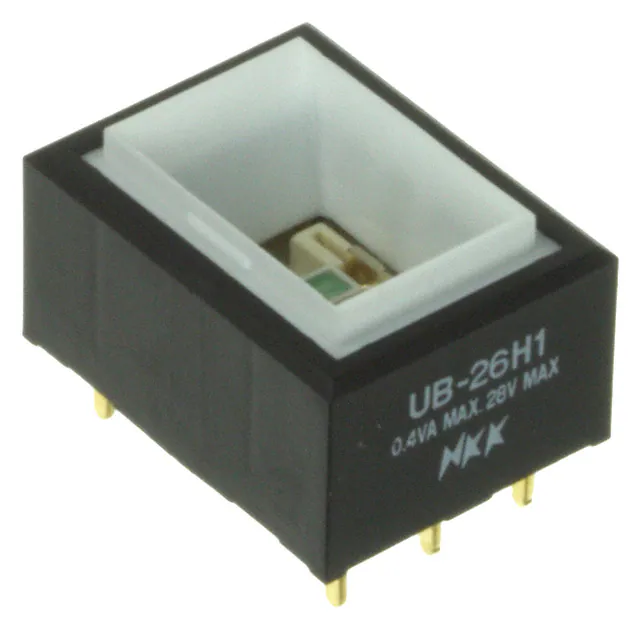

UB26RKG035FSWITCH PUSH DPDT 0.4VA 28V |
19 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
LB15CKG01-ASWITCH PUSH SPDT 0.4VA 28V |
8 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
