Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMV6DW3BYELSWITCH PB SPST 2A 24V |
82 |
|
Datasheet |
PMV6 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Yellow | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|

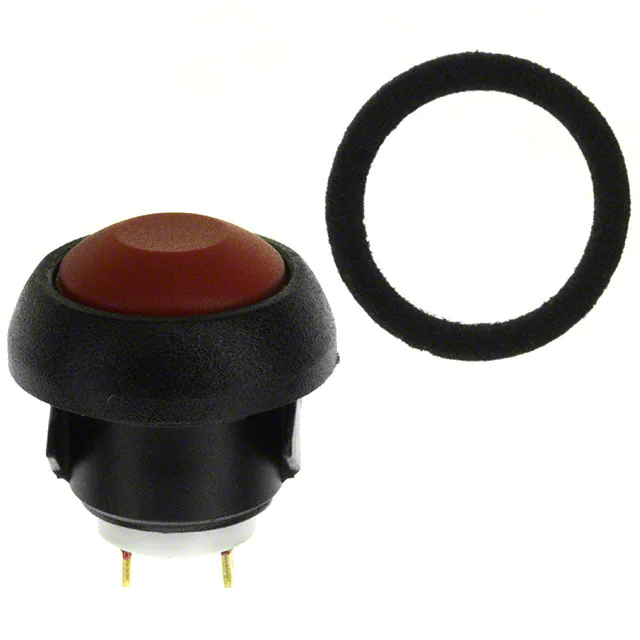

IBR3SAD600SWITCH PUSH SPST-NO 0.4A 32V |
74 |
|
Datasheet |
IB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
LB15SKW01-5D-JDSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
A3AA-90L1-00LSWITCH PUSH SPST-NO 6A 125V |
19 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Gray, Light | - | - | Solder Lug | IP00 | - | Square - 11.50mm x 11.50mm | -10°C ~ 55°C |
|
|
A3AA-90L1-00BSWITCH PUSH SPST-NO 6A 125V |
7 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | IP00 | - | Square - 11.50mm x 11.50mm | -10°C ~ 55°C |
|
UB26RKW035CSWITCH PUSHBUTTON DPDT 5A 125V |
20 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
UB26RKW035FSWITCH PUSHBUTTON DPDT 5A 125V |
20 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
AVH19LSFE17121604SWITCH PUSHBUTTON SPDT 16A 125V |
61 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
|
UB25RKW035D-JBSWITCH PUSHBUTTON DPDT 5A 125V |
20 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

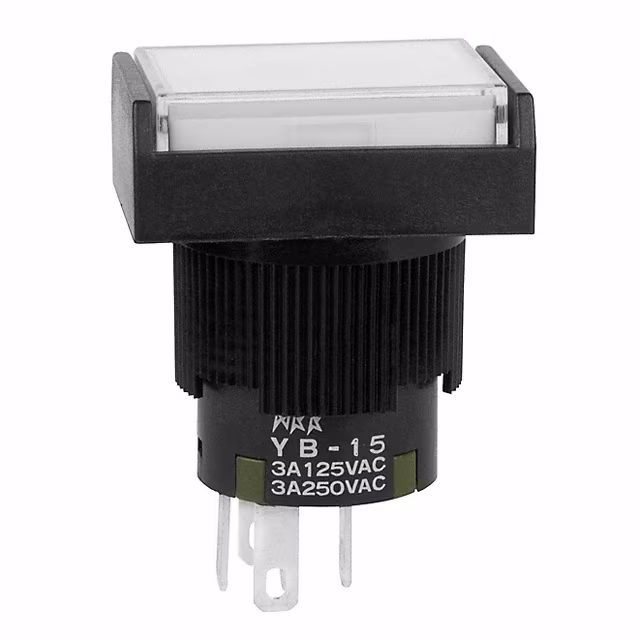

YB15RKW01-2CF24-JBSWITCH PUSHBUTTON SPDT 3A 125V |
6 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
PV3F2H0SS-331SWITCH PUSHBUTTON DPDT 2A 48V |
61 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
A22NN-MGA-NAA-G101-NNSWITCH PUSH DPST-NO 10A 120V |
7 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

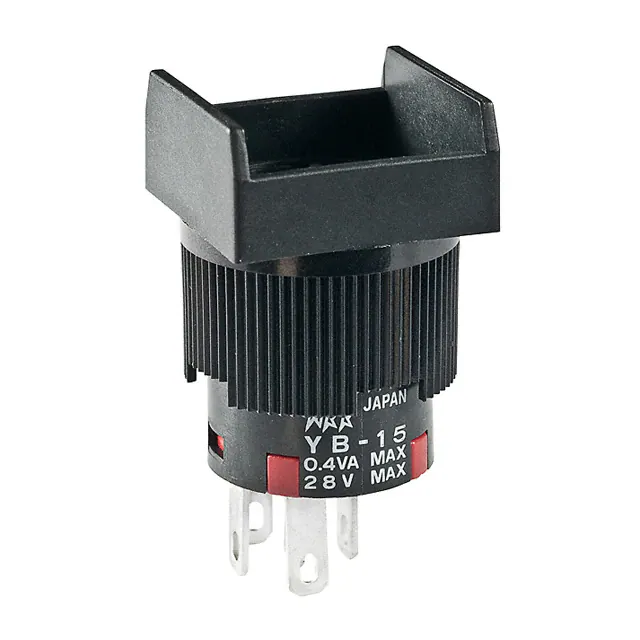

YB15SKG01SWITCH PUSH SPDT 0.4VA 28V |
94 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

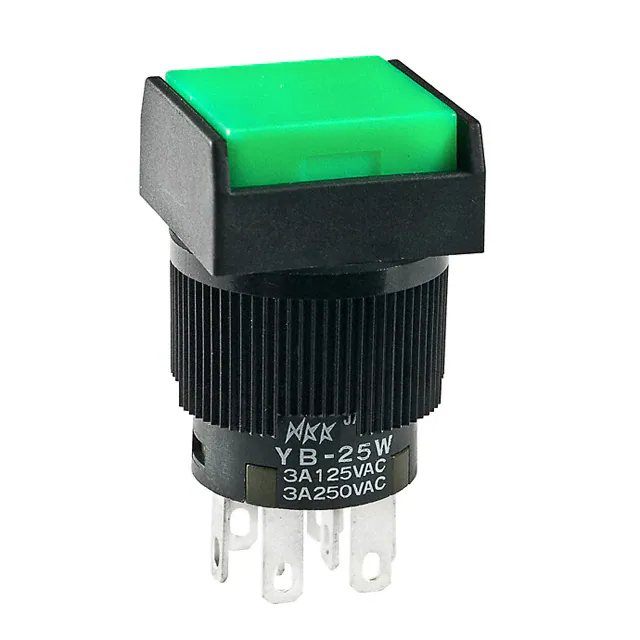

YB25WSKW01-FBSWITCH PUSHBUTTON DPDT 3A 125V |
30 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
AH1NABXSWITCH PB DPST-NO/NC 1A 125V |
36 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
4746A02UUSWITCH PUSHBUTTON DPDT 6A 125V |
38 |
|
Datasheet |
4700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
|
LB15SGW01-BSWITCH PUSHBUTTON SPDT 3A 125V |
47 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

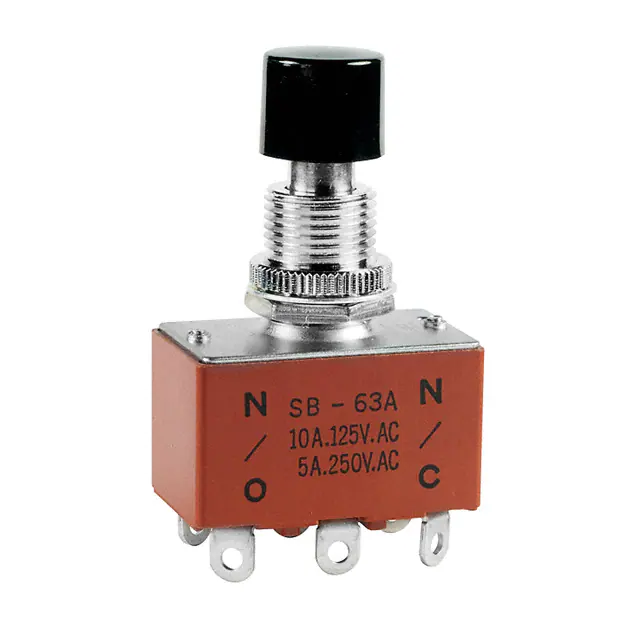

SB63ASWITCH PUSH DPDT 10A 125V |
10 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
MP0012SWITCH PUSH SPST-NO 1A 110V |
28 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 1A (AC), 2A (DC) | 110 V | 12 V | Round, Button | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 19.20mm Dia | -20°C ~ 85°C |
|
LB16SKG01SWITCH PUSH SPDT 0.4VA 28V |
4 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
