Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-PB7-07LB42CRRR12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
38 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Red | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.50mm Dia | -25°C ~ 55°C |
|
A3AA-91K1-00YSWITCH PUSH SPST-NO 6A 125V |
19 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|
UB215KKG016CF-1JBSWITCH PUSH SPDT 0.4VA 28V |
6 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Process Sealed Plunger | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
A3AT-90L1-00ASWITCH PUSH SPST-NO 6A 125V |
11 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP00 | - | Circular - 11.50mm Dia | -10°C ~ 55°C |
|
|
A3AA-90K1-00ASWITCH PUSH SPST-NO 6A 125V |
8 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | - | - | Solder Lug | IP00 | - | Square - 11.50mm x 11.50mm | -10°C ~ 55°C |
|
|
UB26KKW015F-FBSWITCH PUSHBUTTON DPDT 5A 125V |
40 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB26KKW015C-CCSWITCH PUSHBUTTON DPDT 5A 125V |
6 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
AP4E300TZBESWITCH PUSH SPST-NO 0.125A 125V |
89 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
AP2C300TZBESWITCH PUSH SPST-NO 0.125A 125V |
80 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
ULV8F2BSLL15L35SWITCH PUSHBUTTON SPDT 3A 125V |
60 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | STOP | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
UB25NBKW015CSWITCH PUSHBUTTON DPDT 5A 125V |
16 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

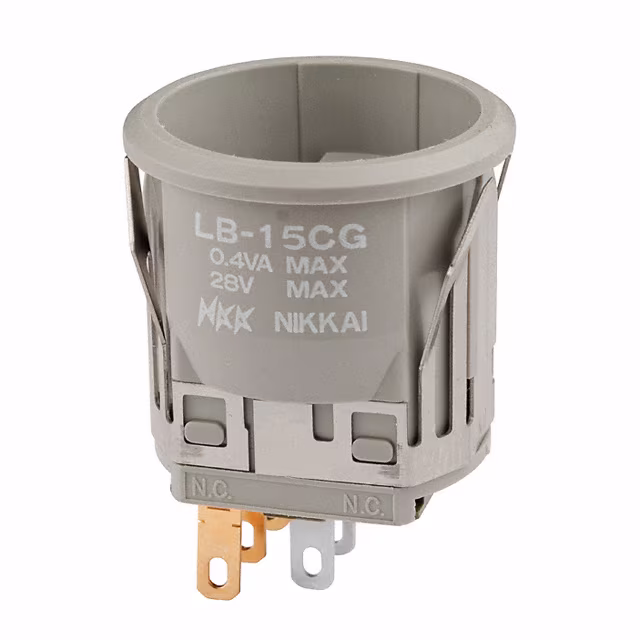

LB15CGG01SWITCH PUSH SPDT 0.4VA 28V |
4 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
PMV6DW1BBLKSWITCH PB SPST 2A 24V |
77 |
|
Datasheet |
PMV6 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
|
A3AT-91K1-00RSWITCH PUSH SPST-NO 6A 125V |
7 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|
AV1911PB12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
75 |
|
Datasheet |
AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1920EA12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
14 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
A3AA-91L1-00RSWITCH PUSH SPST-NO 6A 125V |
12 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|
YB15WRKG01-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
37 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

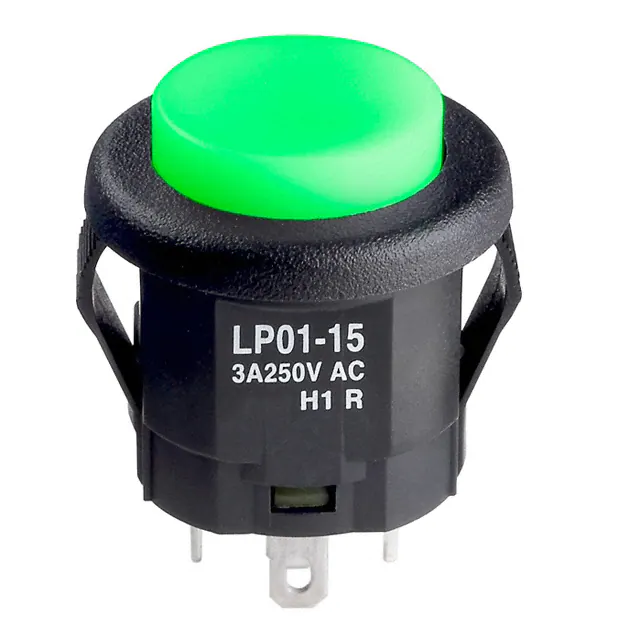

LP0115CMKW015FBSWITCH PUSHBUTTON SPDT 3A 125V |
4 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -10°C ~ 50°C |
|

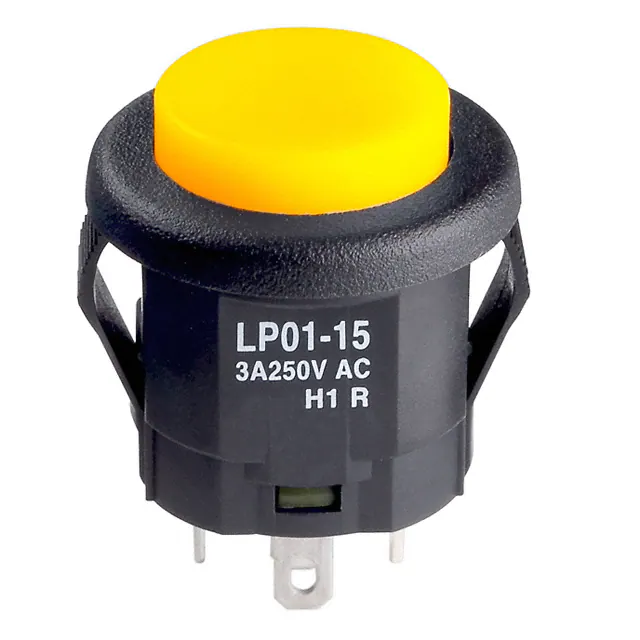

LP0115CMKW015DBSWITCH PUSHBUTTON SPDT 3A 125V |
24 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -10°C ~ 50°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
