Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BB26AV-HASWITCH PUSH DPDT 0.4VA 28V |
100 |
|
Datasheet |
BB | Box | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
WSA48-1-RM-N-HRD-BSWITCH PUSHBUTTON 5A 125V |
84 |
|
Datasheet |
WSA48 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 5A (AC/DC) | 125 V | 28 V | Round, Button, Domed | - | Red | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 85°C |
|
W48-1-RB-N-BK-BPBS 12MM SPST 0.1A 48V MOM PLAST |
89 |
|
Datasheet |
W48 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10mA (AC) | 12 V | - | Round, Button, Domed | - | Black | - | - | Quick Connect - 0.110" (2.8mm), Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 85°C |
|
PB6B2FM6M1CAL06Y500SWITCH PUSH SPST-NO 125MA 125V |
56 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | LED, Green | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM2M1CAL07Y500SWITCH PUSH SPST-NO 125MA 125V |
55 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Blue | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
GHNDBBXSWITCH PB SPST 2A 48V |
27 |
|
Datasheet |
GH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
ELUMOASAQ6C22SWITCH PUSH SPDT 0.25A 50V |
35 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
M2B15AA5G40-FASWITCH PUSH SPDT 0.4VA 28V |
83 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
SB4011NOHG-2ASWITCH PUSH SPST-NO 0.4VA 28V |
14 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
SB4011NOHG-2ESWITCH PUSH SPST-NO 0.4VA 28V |
53 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

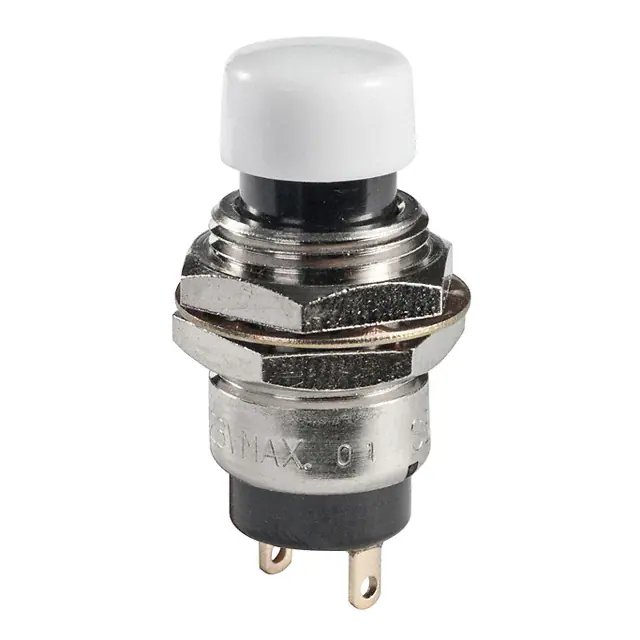

SB4011NOHG-2BSWITCH PUSH SPST-NO 0.4VA 28V |
47 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
SB4011NOHG-2CSWITCH PUSH SPST-NO 0.4VA 28V |
37 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
UB15SKW03N-GSWITCH PUSHBUTTON SPDT 5A 125V |
55 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

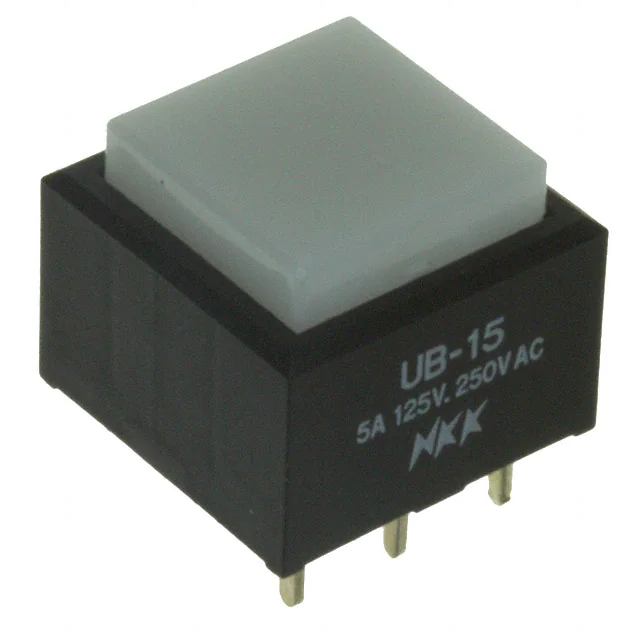

UB15SKW03N-BSWITCH PUSHBUTTON SPDT 5A 125V |
31 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
UB15SKW03N-ASWITCH PUSHBUTTON SPDT 5A 125V |
28 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
TP11MS9CQESWITCH PUSH SPST-NO 1A 120V |
93 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
M2B15AA5G40-HASWITCH PUSH SPDT 0.4VA 28V |
68 |
|
Datasheet |
M2 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
UB15RKG03NSWITCH PUSH SPDT 0.4VA 28V |
25 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

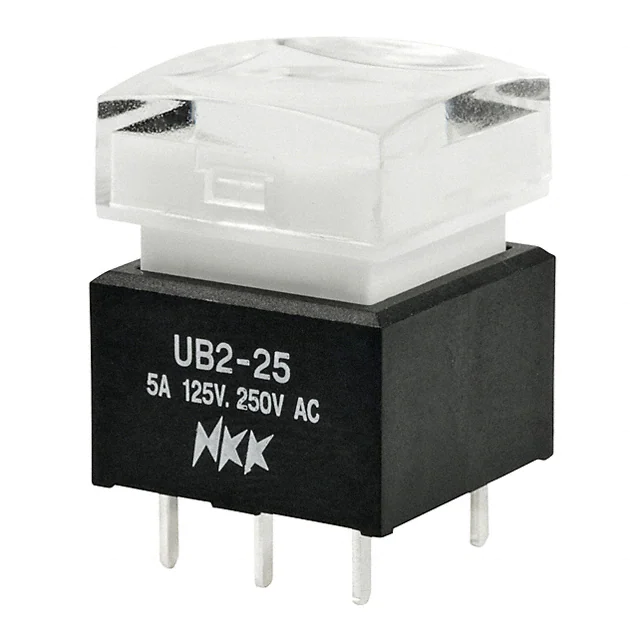

UB225SKW03N-4JBSWITCH PUSHBUTTON DPDT 5A 125V |
33 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|

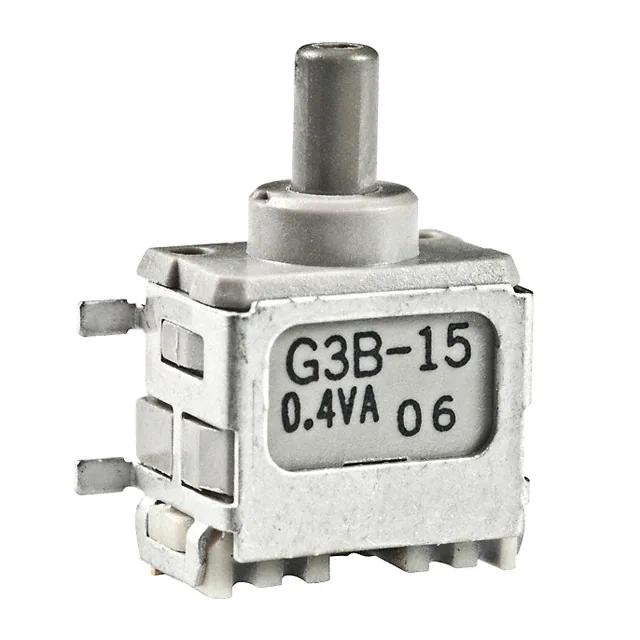

G3B15AHSWITCH PUSH SPDT 0.4VA 28V |
13 |
|
Datasheet |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
