Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.10.107.011/0205SWITCH PUSH SPST-NO 100MA 24V |
54 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 24 V | 24 V | Round, Button | No Marking | White | - | - | Solder Lug | IP40 | - | Circular - 9.10mm Dia | -25°C ~ 70°C |
|
PB6B2HS3M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
53 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB7B2HS3M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
50 |
|
Datasheet |
PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2HS6M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
47 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM6M4CAL00SWITCH PUSH SPST-NO 125MA 125V |
46 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

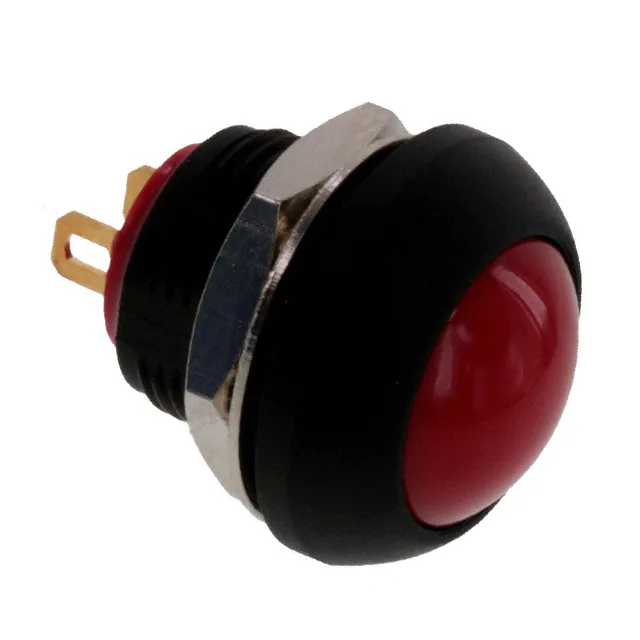

PB7B2RS3M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
35 |
|
Datasheet |
PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
AB11APSWITCH PUSH SPST-NO 0.4VA 28V |
80 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

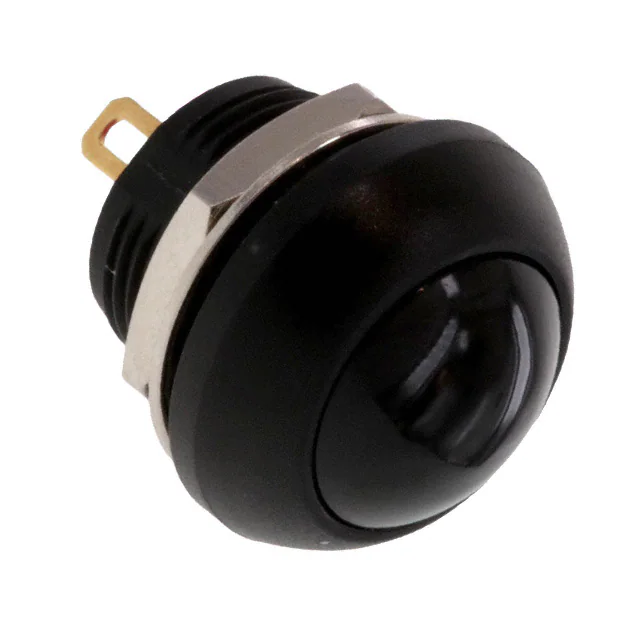

PB6B2RS2M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
39 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
FS5700SPLT2B2M1QEHSWITCH PUSHBUTTON SPDT 1A 9V |
77 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
|
FS5700DPMT2B2M1QEHSWITCH PUSHBUTTON DPDT 1A 9V |
71 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
PV5S64019GSWITCH PUSH SPST-NO 2A 36V |
43 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|

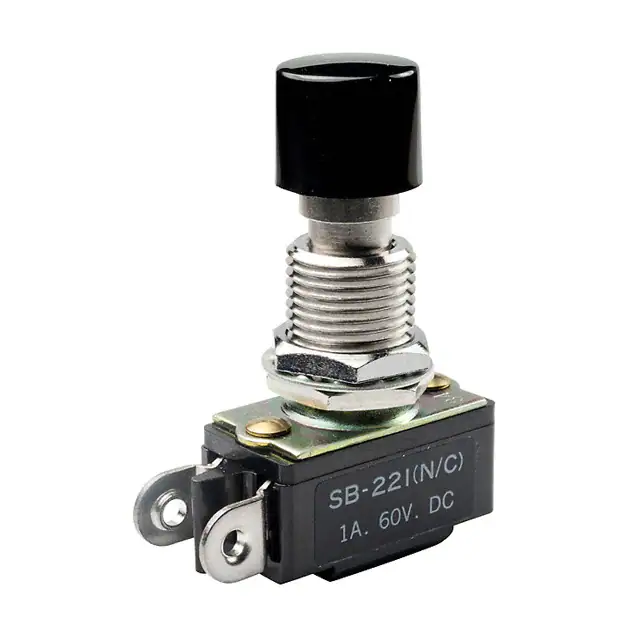

SB221NCSWITCH PUSH SPST-NC 3A 125V |
114 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
AB15APSWITCH PUSH SPDT 0.4VA 28V |
29 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
1.10.107.011/0301SWITCH PUSH SPST-NO 100MA 24V |
54 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 24 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP40 | - | Circular - 9.10mm Dia | -25°C ~ 70°C |
|
CTHS15CIC01SWITCH PUSH CAPACITIVE ILLUM SQ |
74 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | No Marking | Clear | LED, Red | 3.2 VDC | PC Pin | - | - | - | - |
|
8631CBD2SWITCH PUSH SPST-NO 0.4VA 20V |
87 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
8161SH9AQE2SWITCH PUSHBUTTON SPDT 6A 120V |
86 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
WG48-1-RMB-N-RD-BSWITCH PUSHBUTTON 1A 250V |
83 |
|
Datasheet |
WG48-RM | Bulk | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 1A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Domed | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.58mm Dia | -40°C ~ 85°C |
|
|
1445NC2SWITCH PUSHBUTTON SPDT 3A 12V |
63 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
|
BB15AV-FASWITCH PUSH SPDT 0.4VA 28V |
37 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
