Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WBL4UEEBQR05CLRSWITCH PUSHBUTTON 4PDT 300MA 30V |
65 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
PS-12G01SWITCH PUSHBUTTON SPDT 1A 14V |
55 |
|
Datasheet |
PS, COMAX | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 1A (DC) | - | 14 V | Round, Button | No Marking | Natural | - | - | Socketable | - | - | - | -20°C ~ 70°C |
|

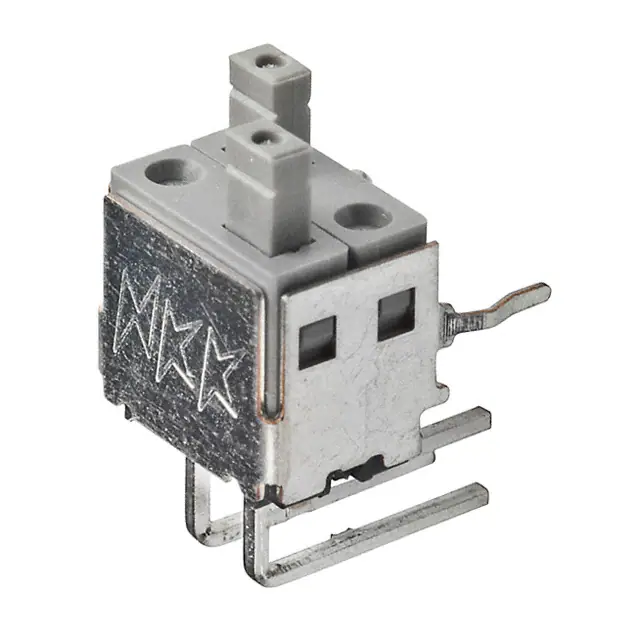

GB215A2HSWITCH PUSH 2XSPST-NO 0.4VA 28V |
67 |
|
Datasheet |
GB2 | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
800SP9B8M2QESWITCH PUSH SPST-NO 3A 120V |
59 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
SW-PB8-AA00A1GE-2SEALED SNAP-ACTING PUSHBUTTON SW |
68 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
5517STEP SWITCH WITH LED - THREE PAC |
51 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 12mA (DC) | - | 24 V | Square, Button | - | Blue | LED, Red | 2.1 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
RP8100B1M1CEBLKYELNILSWITCH PB SPST-NO 0.125A 125V |
81 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
CFPB-1CC-5G2SWITCH PUSH SPST-NO 1MA 20V |
98 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-4W2SWITCH PUSH SPST-NO 1MA 20V |
88 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
ESANMF2FBXSWITCH PB SPST-NO 125MA 125V |
40 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
9133CDSWITCH PUSH SPST-NO 0.1A 30V |
90 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
800AWSP8M2QESWITCH PUSHBUTTON SPDT 1A 120V |
48 |
|
Datasheet |
800A | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
CFPB-1CC-4W1SWITCH PUSH SPST-NO 1MA 20V |
43 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
GB215AP-BSWITCH PUSH SPST-NO 0.4VA 28V |
7 |
|
Datasheet |
GB2 | Box | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
39-405 REDSWITCH PUSH SPST-NO 0.15A 28V |
96 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
39-251 REDSWITCH PUSH SPDT 0.25A 115V |
96 |
|
Datasheet |
39 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | PC Pin | - | Sealed - Flux Protection | - | -40°C ~ 125°C |
|
39-251 BLKSWITCH PUSH SPDT 0.25A 115V |
100 |
|
Datasheet |
39 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed - Flux Protection | - | -40°C ~ 125°C |
|
RP8101B2M1CEBLKREDNILSWITCH PUSH SPST-NO 0.125A 125V |
43 |
|
Datasheet |
RP8100 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
700SP7B10M1REHSWITCH PUSH SPDT 0.4VA 20V |
40 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
BB16AP-FBSWITCH PUSH SPDT 0.4VA 28V |
26 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
