Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XACA4713PENDANT STATION ENCLOSURE XACA + |
7 |
|
Datasheet |
Harmony XAC | Box | Active | Free Hanging | - | SPST-NO | Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | - | - | - | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 70°C |
|
|
XB5S9B2L2BIOMETRIC SWICH REPLACE XB5S4B2L |
5 |
|
Datasheet |
Harmony XB5S | Box | Active | Panel Mount, Front | Fingerprint Reader | - | - | - | - | - | - | - | - | - | - | Cable Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -5°C ~ 50°C |
|
PN11SBSA03QESWITCH PUSH SPDT 0.2A 30V |
355 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
NCE2SWITCH PB SPST-NO 25MA 50V |
450 |
|
Datasheet |
NC | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 25mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|

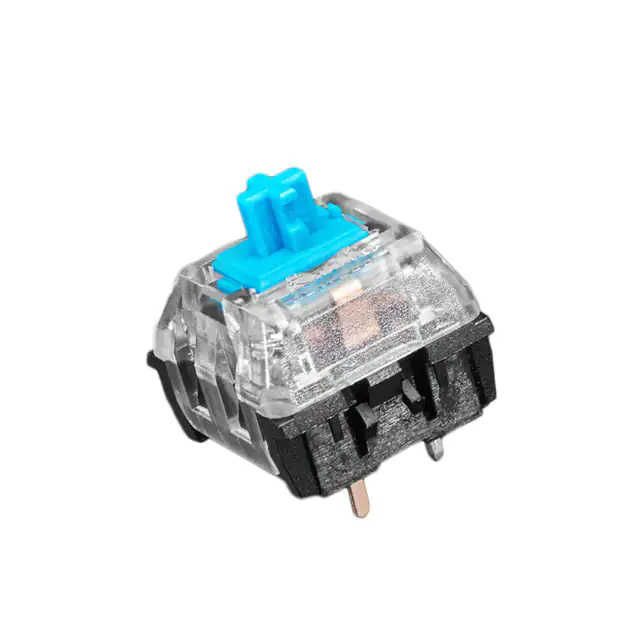

5123KAILH MECHANICAL KEY SWITCH - CL |
33 |
|
Datasheet |
- | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
ESE-20C423SWITCH PUSH SPST-NO 0.1A 14V |
43 |
|
Datasheet |
ESE20C | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | - |
|
ESE-20D421SWITCH PUSH SPST-NO 0.1A 14V |
35 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | - |
|

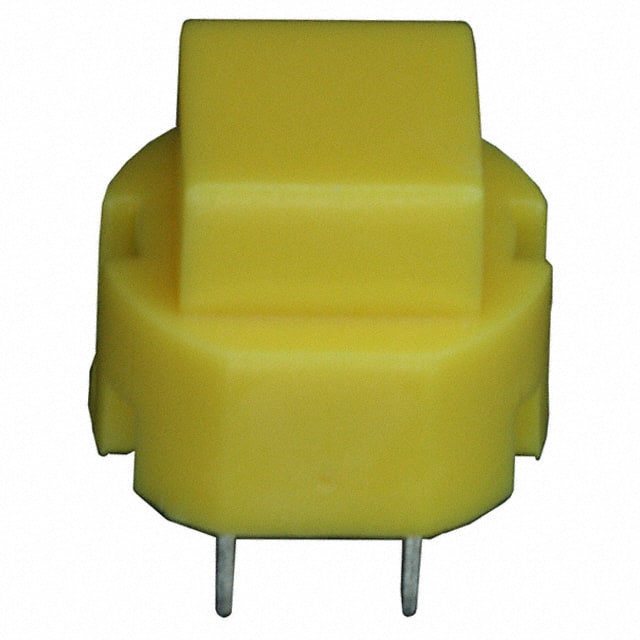

D6C30 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
63 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
ESE-20D423SWITCH PUSH SPST-NO 0.1A 14V |
28 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | - |
|
KS11R29CQDSWITCH PUSH SPST-NO 0.025A 50V |
56 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
BNP10SBQESWITCH PB SPST-NO 3A 120V |
85 |
|
Datasheet |
BNP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -40°C ~ 85°C |
|
|
ASP11TNCQSWITCH PB SPDT 3A 120V |
42 |
|
Datasheet |
ASP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
WBL2UOABQR05CLRSWITCH PUSHBUTTON DPDT 300MA 30V |
81 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
CFPB-1CC-2R6SWITCH PUSH SPST-NO 1MA 20V |
31 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
GB215APSWITCH PUSH SPST-NO 0.4VA 28V |
26 |
|
Datasheet |
GB2 | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|

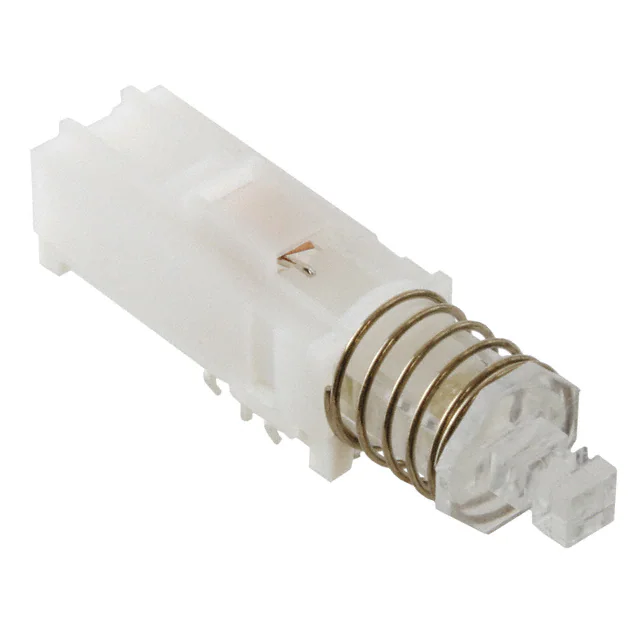

WBL2UEEGYQR05CLRSWITCH PUSH DPDT 300MA 30V |
83 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green/Yellow | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
SW-PB8-AE221QE-1SNAP-ACTING PUSHBUTTON SWITCH, B |
76 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
MPB02-1B33-R-DSPST, THROUGH HOLE, 3.3 MM PUSH, |
58 |
|
Datasheet |
MPB02 | Bag | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
MSP103B-ZSWITCH PUSH SPST-NC 3A 125V |
79 |
|
Datasheet |
MSP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | - |
|
PMS9P1B10M2RESWITCH PUSH SPST-NO 0.4VA 20V |
94 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
