Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB4011NOH-2BSWITCH PUSH SPST-NO 3A 125V |
73 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
SW-PB5-AB3BG112V-IP40-8INDUSTRIAL PUSHBUTTON SWITCH 1 |
43 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 100mA (DC) | 220 V | 220 V | Square, Button | No Marking | Green | LED, Green | 12 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
SB4011NOH-2FSWITCH PUSH SPST-NO 3A 125V |
4 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

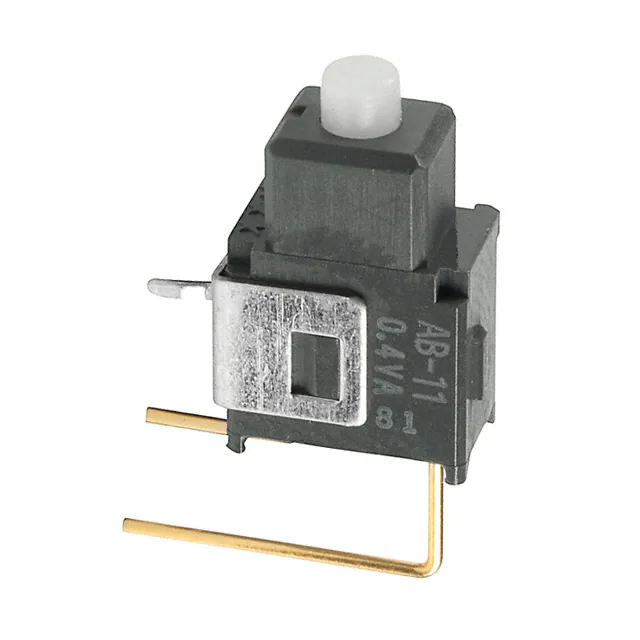

AB11CV1SWITCH PUSH SPST-NO 0.4VA 28V |
50 |
|
Datasheet |
AB | Box | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
SW-PB5-AB3BR112V-IP40-8INDUSTRITAL PUSHBUTTON SWITCH, 1 |
34 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 100mA (DC) | 220 V | 220 V | Square, Button | No Marking | Red | LED, Red | 12 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
SW-PB5-AA3BR112V-IP40-8INDUSTRITAL PUSHBUTTON SWITCH, 1 |
92 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 700mA (DC) | 220 V | 24 V | Round, Button | No Marking | Red | LED, Red | 12 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
PB7B2RS2M1CAL00Y500SWITCH PUSH SPST-NC 125MA 125V |
48 |
|
Datasheet |
PB7 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
EP11RD1CBESWITCH PUSH SPST-NO 0.4VA 20V |
92 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

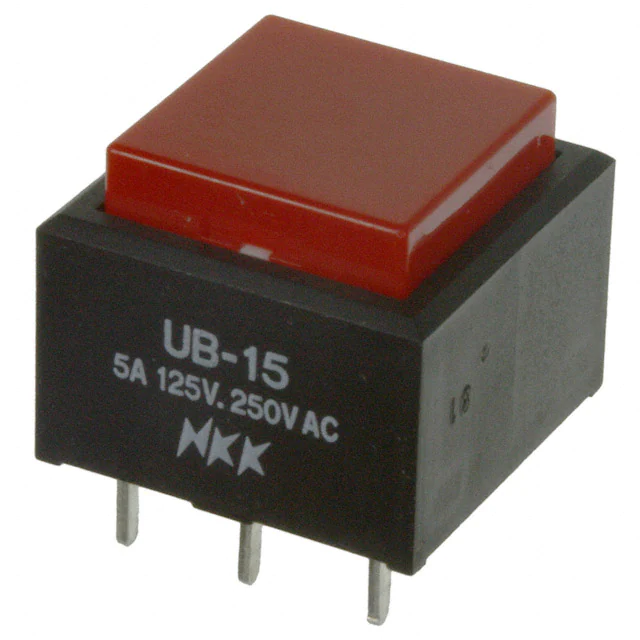

UB15SKW03N-CSWITCH PUSHBUTTON SPDT 5A 125V |
46 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
1241.1104.8098SWITCH PUSH SPST-NO 125MA 48V |
71 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | White | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
RP8300B2M1CEBLKBLKBLUSWITCH PB SPST-NO 200MA 250V |
59 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
SB4011NOHC-2CSWITCH PUSH SPST-NO 3A 125V |
27 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
GB15AP-XBSWITCH PUSH SPDT 0.4VA 28V |
55 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
EB2065-BASWITCH PUSHBUTTON SPDT 3A 125V |
95 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
EB2011G-BASWITCH PUSH SPDT 0.4VA 28V |
26 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
FP11SPC1B1TP03SWITCH PUSH SPST-NO 0.4VA 28V |
47 |
|
Datasheet |
FP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
|
AB25AP-HASUBMINIATURE PUSHBUTTON/PC |
30 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
M2B15BA5W03SWITCH PUSHBUTTON SPDT 1A 125V |
100 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
BB26AV-FASWITCH PUSH DPDT 0.4VA 28V |
30 |
|
Datasheet |
BB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
1212C6SWITCH PUSH SPST-NC 3A 125V |
63 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Red | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
