Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBAR2AF6000SWITCH PUSH SPST-NO 0.2A 24V |
20 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | Mechanical Timer | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
XB7NW34B2HARMONY XB7, MONOLITHIC ILLUMINA |
11 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

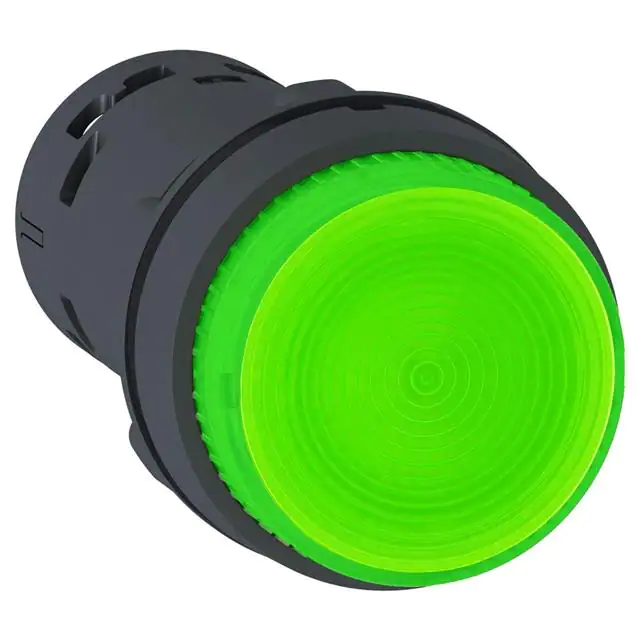

XB7NJ03B1ILLUMINATED PUSH BUTTON, HARMONY |
3 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
1.10.011.001/0661SWITCH PUSH SPST-NO 100MA 35V |
3 |
|
Datasheet |
RAMO 22 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | Blue | LED, Blue | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
1.10.011.001/0221SWITCH PUSH SPST-NO 100MA 35V |
3 |
|
Datasheet |
RAMO 22 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | White | LED, White | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

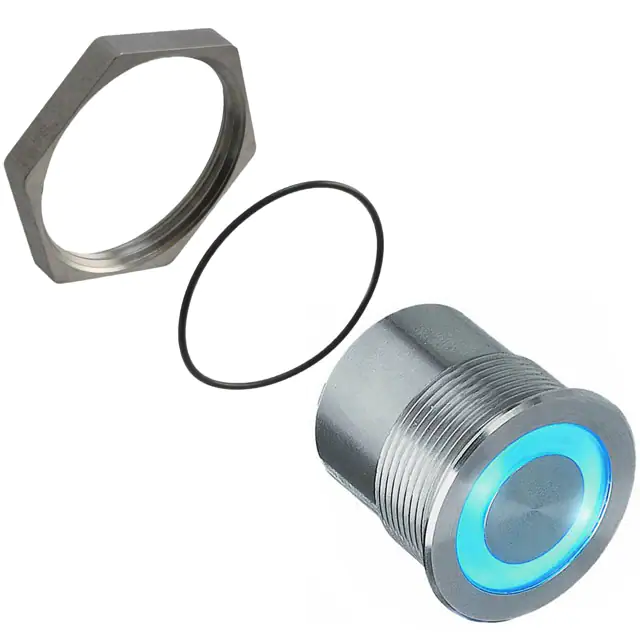

1241.3237SWITCH PUSH SPST-NO 100MA 42V |
20 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 30.30mm Dia | -40°C ~ 85°C |
|
3SU11520AB401BA0ILLUMINATED PUSHBUTTON, MOM, GRN |
5 |
|
Datasheet |
3SU1 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | No Marking | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
1241.3010SWITCH PUSH SPST-NO 100MA 42V |
10 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 24.30mm Dia | -40°C ~ 85°C |
|
|
31-283.0252ACTUATOR, 16 MM, 18 MM X 18 MM, |
2 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
XB5FW33G5HARMONY XB5, ANTIMICROBIAL ILLUM |
5 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | Neon, Green | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
1241.3058SWITCH PSE 30SNAF-RIRTGN24-IV-L |
4 |
|
Datasheet |
PSE | - | Active | - | - | - | - | - | - | - | - | No Marking | - | LED, Green/Red | 5 ~ 28 VDC | - | - | - | Circular - 30.30mm Dia | - |
|
K50LGRXPPB2QEZ-LIGHT 2 COLOR AUD INDICATOR |
3 |
|
Datasheet |
K50 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 150mA (DC) | - | 30 V | Round, Button, Domed | No Marking | - | LED, Green/Red | 30 VDC | Connector | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 50°C |
|
XB5AW73731B5HARMONY XB5, ILLUMINATED DOUBLE- |
3 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 24 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
52PP2W2APUSHBUTTON,MTD,RED,1 3/4" FULL P |
8 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 60A (AC) | 110 V | - | Round, Button, Mushroom | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|

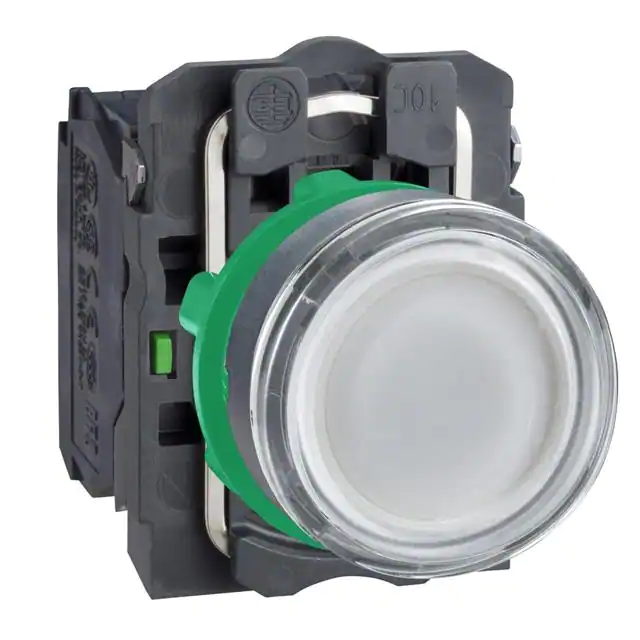

XB5AW3165ILLUMINATED PUSH BUTTON, HARMONY |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 250 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
52PP2A2APP2,MTD,RED MTL,1NO-1NC |
10 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 60A (AC) | 110 V | - | Round, Button, Mushroom | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP3D2UB3POS,MOM,FV 24V,CHR-RED,NCXLB-NC |
2 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | - | - | - | Round, Button, Mushroom | - | - | LED, Red | 24 VAC/DC | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
6051321PUSHBUTTON |
4 |
|
Datasheet |
ER12 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 100mA (DC) | - | 30 V | Round, Button, Dual | - | Blue, Green | LED, Blue/Green | 30 VAC/DC | Connector | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 70°C |
|

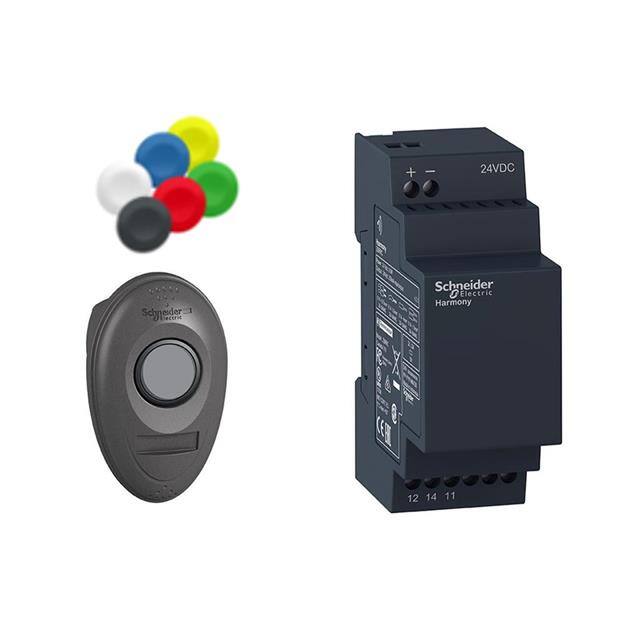

XB5RMB03HARMONY XB5, PACK WITH 1 WIRELES |
4 |
|
Datasheet |
Harmony XB5R | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button | - | - | - | - | Wireless | - | - | Circular - 22.00mm Dia | - |
|

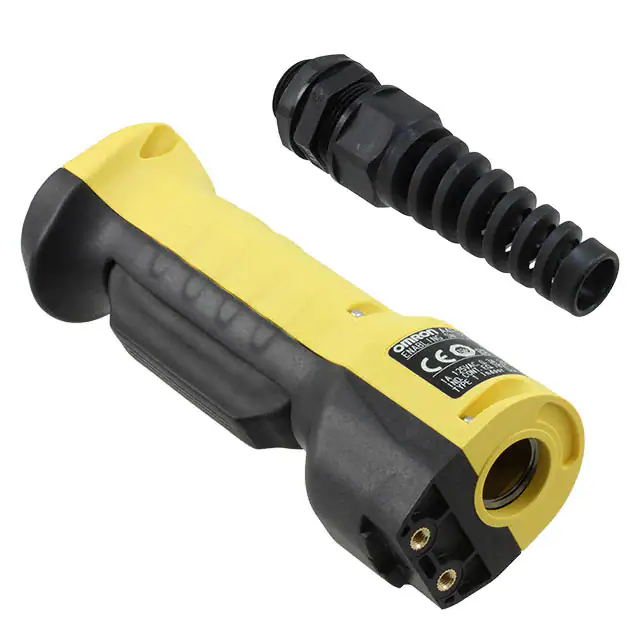

A4EG-C000041SWITCH ENABLING |
3 |
|
Datasheet |
A4EG | Bulk | Active | Free Hanging | - | - | - | - | - | - | - | No Marking | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
