Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-PB2-2EZ-A-L1PLASTIC WATERPROOF SWITCH, LATCH |
72 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | Waterproof | - | - | -25°C ~ 55°C |
|
ESANMF2GBXSWITCH PB SPST-NO 125MA 125V |
46 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
EP11SD1APESWITCH PUSH SPST-NO 0.4VA 20V |
38 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
SW-PB11-2CSKR-10IP67 ANTI-VANDAL PUSHBUTTON SWIT |
89 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

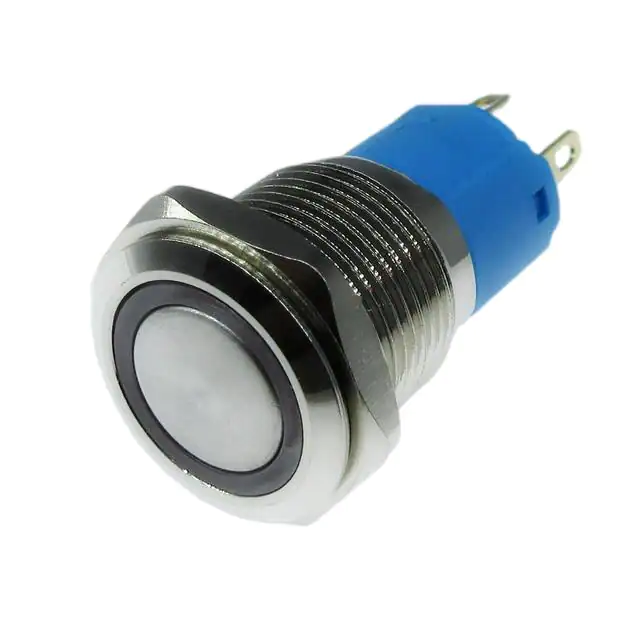

SW-PB2-2EZ-A-RR-3-L1PLASTIC WATERPROOF SWITCH, LATCH |
55 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button | No Marking | Silver | LED, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | Waterproof | - | - | -25°C ~ 55°C |
|
30-601 REDSWITCH PUSH SPST-NO 0.15A 5V |
77 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 5 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|

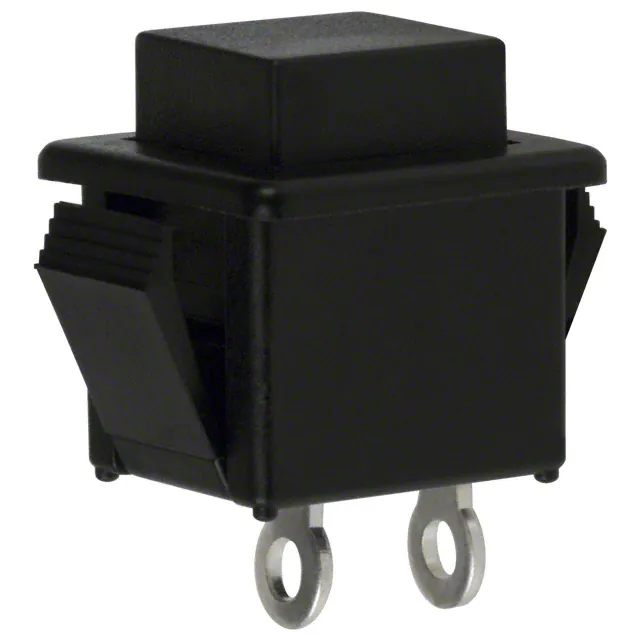

1413NC2SWITCH PUSH SPST-NO 3A 12V |
68 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
PV5S64016SWITCH PUSH SPST-NO 2A 36V |
94 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
PV5S64018SWITCH PUSH SPST-NO 2A 36V |
60 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
RP8100B2M1CEBLKBLUBLUSWITCH PB SPST-NO 0.125A 125V |
45 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
1192SWITCH PUSHBUTTON SPST-NO WHT |
66 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 5 ~ 12 VDC | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | - | - |
|

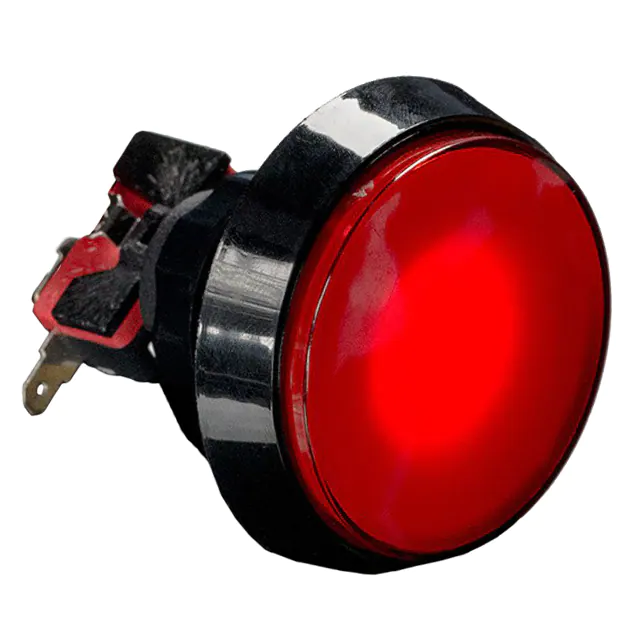

1190SWITCH PUSHBUTTON SPST-NO RED |
50 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 ~ 12 VDC | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | - | - |
|
1193SWITCH PUSHBUTTON SPST-NO GRN |
48 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 ~ 12 VDC | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | - | - |
|
FB15ANEP2-HASWITCH PUSH SPST-NO 0.5A 125V |
39 |
|
Datasheet |
FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
SB4011NCHCSWITCH PUSH SPST-NC 3A 125V |
69 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
RP3508ABLKYELYELNSSWITCH PUSH SPST-NO 3A 125V |
83 |
|
Datasheet |
RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
SB221NOSWITCH PUSH SPST-NO 3A 125V |
83 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

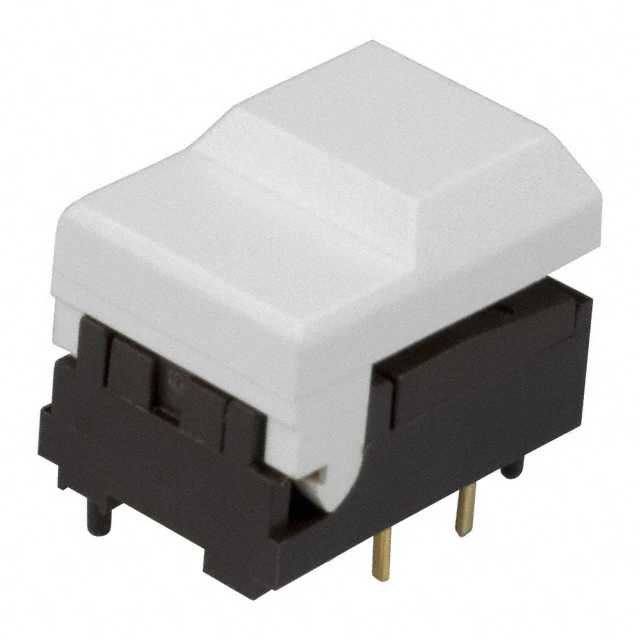

SER WH AU OASWITCH PUSH SPDT 0.01A 24V |
92 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
RP8200B2M1CEBLKBLKWHTSWITCH PUSH SPST 0.1A 24V |
54 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
BH16NFBBXSWITCH PB SPST 1A 125V |
63 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
