Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHPS2283NSWITCH PUSH DPDT 0.1A 30V |
783 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
MHPS2285NSWITCH PUSH DPDT 0.1A 30V |
478 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|

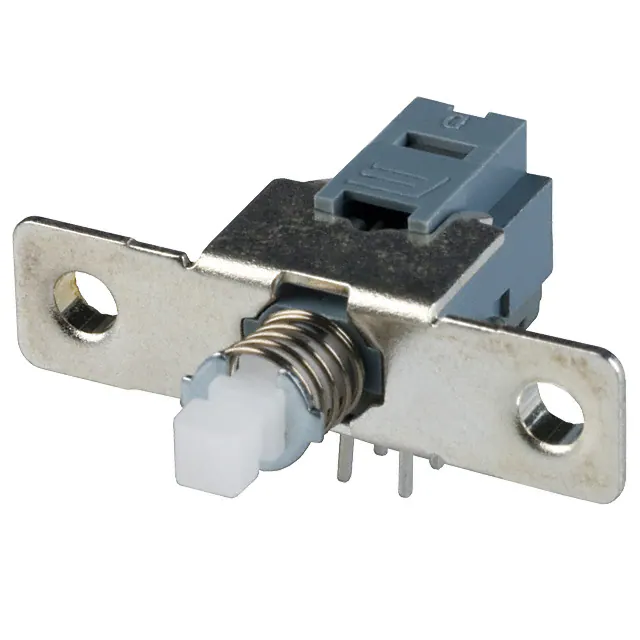

1XPBH2UEENAGXSWITCH PUSH DPDT 0.1A 30V |
543 |
|
Datasheet |
PBH | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PBH2UEENAG1RWHTSWITCH PUSH DPDT 0.1A 30V |
475 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
TL2201EEXASWITCH PUSH DPDT 0.1A 30V |
580 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
LC1258OASPSWITCH PUSHBUTTON SPDT 0.3A 30V |
54 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
PA512CSWITCH PUSHBUTTON DPST 16A 125V |
90 |
|
Datasheet |
PA5, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Plunger for Cap | No Marking | Yellow | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 125°C |
|
3487SWITCH PUSH SPST-NO GRN 10MA 5V |
94 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 30.00mm Dia | - |
|
|
3489SWITCH PUSH SPST-NO RED 10MA 5V |
92 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 30.00mm Dia | - |
|
|
3433SWITCH PB ILLUMINATED |
74 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
3430SWITCH PUSH SPST-NO RED 10MA 5V |
66 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
|
3490SWITCH PUSH SPST-NO BLU 10MA 5V |
62 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 30.00mm Dia | - |
|
3432SWITCH PUSH SPST-NO BLU 10MA 5V |
57 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
|
3488ARCADE BUTTON WITH LED |
35 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 30.00mm Dia | - |
|
|
3431SWITCH PUSH SPST-NO YEL 10MA 5V |
33 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
COM-09341SWITCH PUSHBUTTON SPDT 3A 120V |
27 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Green | - | - | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | Circular - 28.00mm Dia | - |
|
GPB527B202BBSWITCH PUSH DPST 10A 125V |
63 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
39-601 BLKSWITCH PUSH SPST-NO 0.15A 5V |
86 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 5 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
RP8100B2M1CEBLKBLKWHTSWITCH PB SPST-NO 0.125A 125V |
87 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

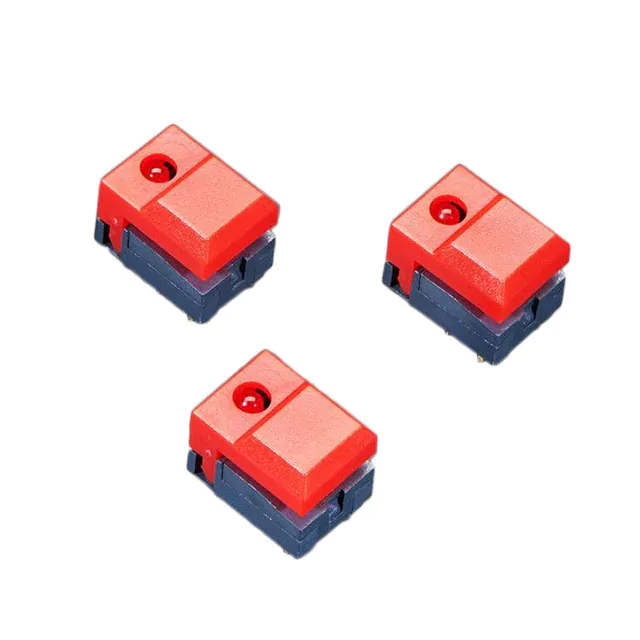

5499STEP SWITCH WITH LED - THREE PAC |
60 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 12mA (DC) | - | 24 V | Square, Button | - | Red | LED, Red | 2.1 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
