Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

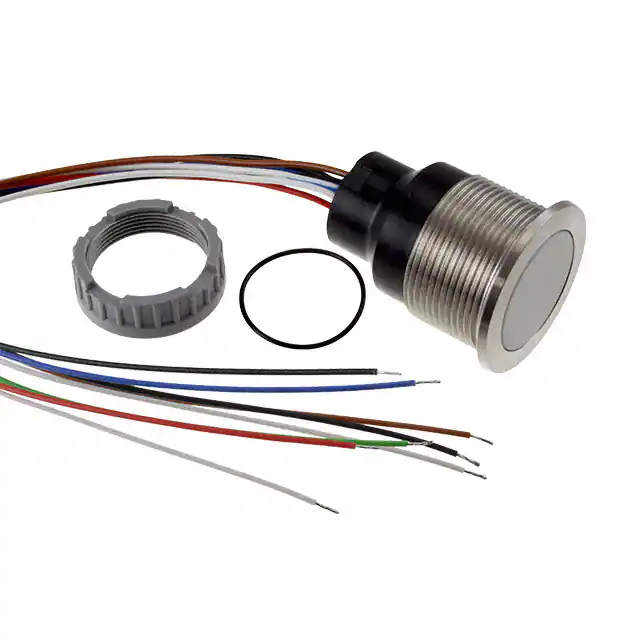

3-101-424SWITCH PUSH SPST-NO 100MA 42V |
27 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Ceramic Actuator | Circular - 22.10mm Dia | -40°C ~ 60°C |
|
AML21EBA2AASWITCH PUSHBUTTON SPDT 3A 125V |
39 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|

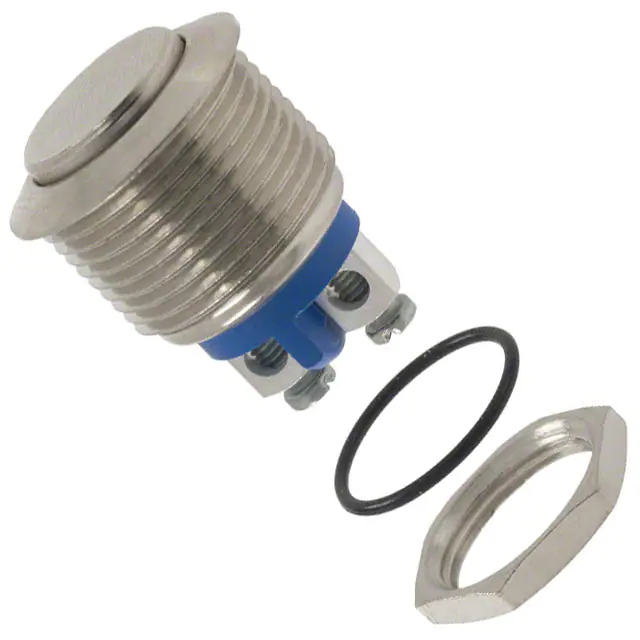

AV0630C900KSWITCH PUSH SPST-NO 0.2A 48V |
100 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 200mA (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
AVC19MS04FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
0 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
MPI002/TERM/GNSWITCH PUSH SPST-NO 0.05A 24V |
41 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 3.5 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

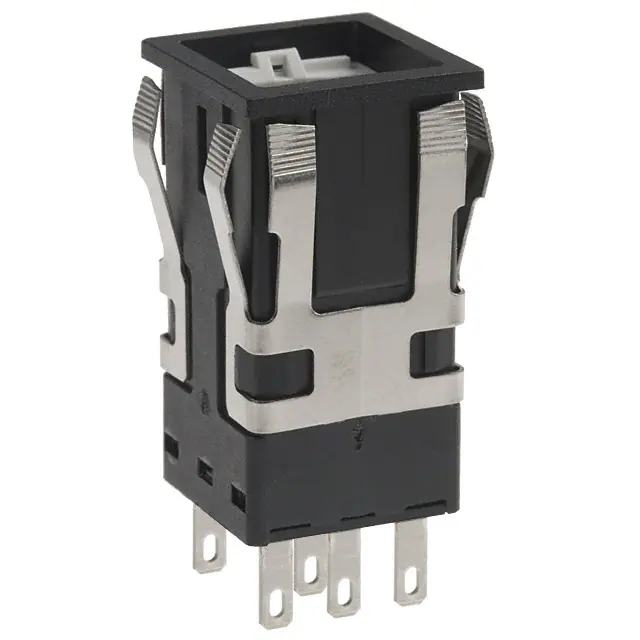

AML21CBA2ADSWITCH PUSHBUTTON DPDT 3A 125V |
10 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
AML21CBE2ADSWITCH PUSHBUTTON DPDT 3A 125V |
17 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
C2USWITCH HANDHELD PB DPST 2A 125V |
20 |
|
Datasheet |
C2U | Bulk | Active | Free Hanging | Standard | DPST-NO | Off-Mom | 2A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | - | - | - | Wire Leads | - | - | - | -10°C ~ 40°C |
|
1.24.200.001/0000E-BOX IO-LINK, 2 ILLUMINATED PUS |
5 |
|
Datasheet |
- | Box | Active | Free Hanging | Standard, Illuminated | SPST-NO x 2 | Off-Mom | 100mA (AC/DC) | - | - | Round, Button, Dual | No Marking | White | LED, White | - | Connector | IP65 - Dust Tight, Water Resistant | - | - | -30°C ~ 60°C |
|
A4EG-BM2B041SWITCH ENABLING |
5 |
|
Datasheet |
A4EG | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
XB5S2B2L2HARMONY XB5S, BIOMETRIC SWITCH M |
8 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Illuminated | - | - | - | - | - | - | - | - | LED, Green/Orange/Red | 24 VDC | Cable Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -5°C ~ 50°C |
|
|
XB5S1B2L2HARMONY XB5S, BIOMETRIC SWITCH B |
7 |
|
Datasheet |
Harmony XB5S | Box | Active | Panel Mount, Front | Fingerprint Reader | - | - | - | - | - | - | - | - | - | - | Cable Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -5°C ~ 50°C |
|
SW-PB1-1DZ-A-P1-APLASTIC PUSHBUTTON SWITCH, SOLDE |
997 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Front | Standard | SPST | Off-On | 3A (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.00mm Dia | -25°C ~ 85°C |
|
TL2202EEZB (GRN ACT)SWITCH PB DPDT 0.1A 30V |
946 |
|
Datasheet |
TL2202 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | - |
|
TL2202EEYBSWITCH PB DPDT 0.1A 30V |
511 |
|
Datasheet |
TL2202 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | - |
|
TL2202OAYASWITCH PB DPDT 0.1A 30V |
149 |
|
Datasheet |
TL2202 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | - |
|

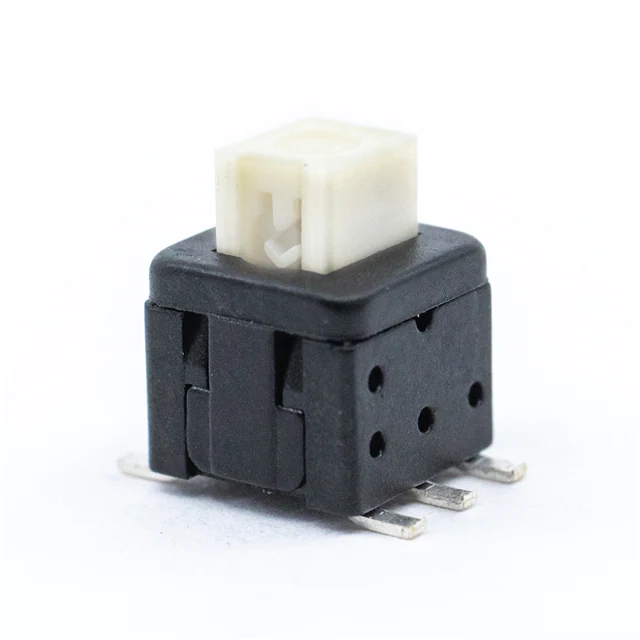

TL2233OASWITCH PB DPDT 0.1A 30V |
1,214 |
|
Datasheet |
TL2233 | Tape & Reel (TR) | Active | Surface Mount | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Rectangular, Button | No Marking | White | - | - | Gull Wing | - | - | - | -10°C ~ 60°C |
|
TL2201EEZASWITCH PUSH DPDT 0.1A 30V |
198 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

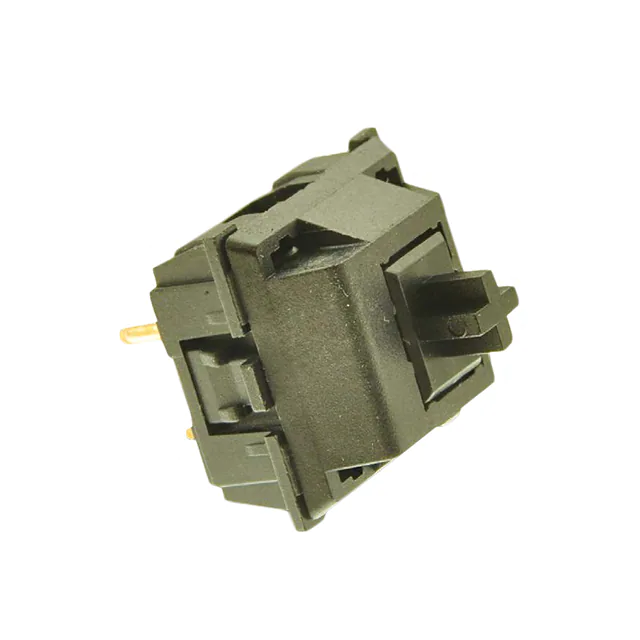

KS1100OA1AF060SWITCH PUSH SPST-NO 0.01A 12V |
350 |
|
Datasheet |
KS1100 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
MHPS2285SWITCH PUSH DPDT 0.1A 30V |
859 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Audible Click | - | -20°C ~ 65°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
