Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23-1SWITCH PUSH SPST-NO 0.25A 115V |
20 |
|
Datasheet |
23 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 250mA (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|
4733A02UUSWITCH PUSH SPST-NO 6A 125V |
77 |
|
Datasheet |
4700 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
PVA6RE241G1SWITCH PB SPST-NO 2A 36V |
41 |
|
Datasheet |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Black | LED, Green/Red | 1.7, 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
FHLBBBRGNSWITCH PB SPST 2A 48V |
40 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Off | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

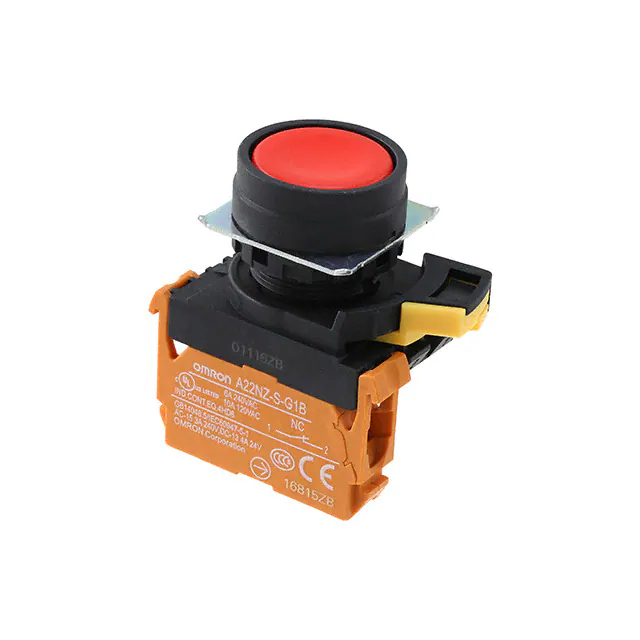

A22NN-BNM-NRA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
8 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
MBN15SB1W01LARGE BUSHING MINIATURE PUSHBUTT |
24 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

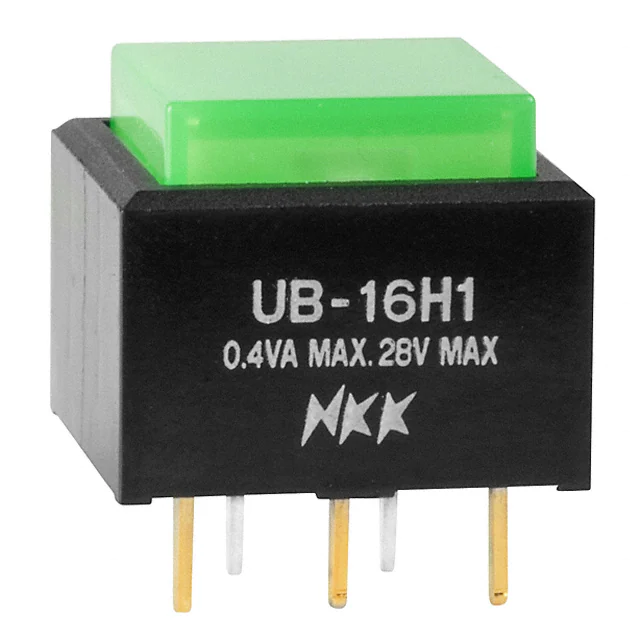

UB16SKG035F-FFSWITCH PUSH SPDT 0.4VA 28V |
23 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
FC71101P/B SWITCH 3PDT ST ON OFF |
15 |
|
Datasheet |
- | Bag | Active | Panel Mount, Rear | Standard | 3PDT | On-On | 4A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Solder, Quick Connect - 0.079" (2.0mm) | - | - | - | -20°C ~ 65°C |
|
HW1B-M1F10-S22MM PUSHBUTTON BLUE |
55 |
|
Datasheet |
HW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
HW1B-M1F10-G22MM PUSHBUTTON GREEN |
26 |
|
Datasheet |
HW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
W57M-110NPBS 16MM SPST 0.1A 48V MOM METAL |
100 |
|
Datasheet |
W57M | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10mA (AC) | 12 V | - | Round, Button, Flush | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.15mm Dia | -40°C ~ 85°C |
|
UB25KKW015C-CCSWITCH PUSHBUTTON DPDT 5A 125V |
15 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
PVHC4F23SSANTI-VANDAL, 20A, SPST, CIRCULAR |
11 |
|
Datasheet |
PVHC4 | Box | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 20A (AC), 25A (DC) | 250 V | 30 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
1241.2859SWITCH PUSH SPST-NO 125MA 48V |
48 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|
|
HB16SKW01-5F-FBSWITCH PUSH SPDT 0.1A 30V |
31 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
LP0125CCKW01CSWITCH PUSHBUTTON DPDT 3A 125V |
98 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

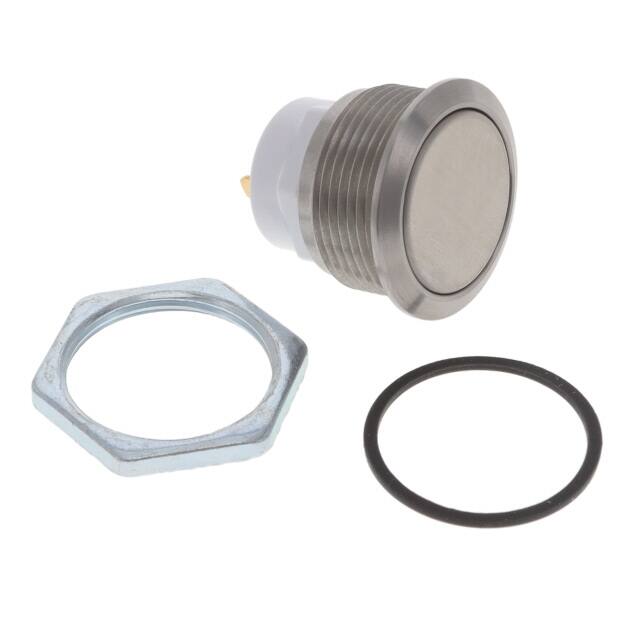

W48M-110NPBS 19MM SPST 0.1A 48V MOM METAL |
41 |
|
Datasheet |
W48M | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 250mA (DC) | - | 12 V | Round, Button, Flush | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
8121J83ZGE22SWITCH PUSHBUTTON SPDT 1A 120V |
68 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button, Flush | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
SW-PB7-07LB42CRRG12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
27 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Green | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.50mm Dia | -25°C ~ 55°C |
|
SW-PB7-07LB42CRRB12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
16 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Blue | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.50mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
