Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WB15L-ECSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
|
|
WB15L-EFSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
|
|
YB226CWCKG01-5F05-FBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
1241.6964.1124000SWITCH PUSHBUTTON DPDT 5A 125V |
71 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -25°C ~ 85°C |
|
AVC22MS04FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
0 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
|
YB15X101SWITCH PUSHBUTTON SPDT 3A 125V |
75 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YB26WCKW01-2CF02-JBSWITCH PUSHBUTTON DPDT 3A 125V |
37 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
MSM22-NXDP05A-SNCSNCNF-RI0RD024-Q0000-SMSM 22, METAL SWITCH, 5 / 3 A SW |
60 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
|
YB215CWCPW01-N-HBSTD SIZE PUSHBUTTON/NONILLUMINAT |
66 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB215CWSPW01-N-HBSTD SIZE PUSHBUTTON/NONILLUMINAT |
57 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
1241.6664.1112000SWITCH PUSHBUTTON SPDT 100MA 30V |
138 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -25°C ~ 85°C |
|
|
AV021202C000SWITCH PUSH SPST-NC 3A 125V |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 22.20mm Dia | -30°C ~ 70°C |
|
|
YB215CWSKW01-5C-HB-001STD SIZE PUSHBUTTON/ILLUMINATED/ |
195 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSKW01-5C-HB-002STD SIZE PUSHBUTTON/ILLUMINATED/ |
195 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSKW01-5C-HB-004STD SIZE PUSHBUTTON/ILLUMINATED/ |
195 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWCKW01-5C-HB-002STD SIZE PUSHBUTTON/ILLUMINATED/ |
132 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCKW01-5C-HB-004STD SIZE PUSHBUTTON/ILLUMINATED/ |
132 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCKW01-5C-HB-001STD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

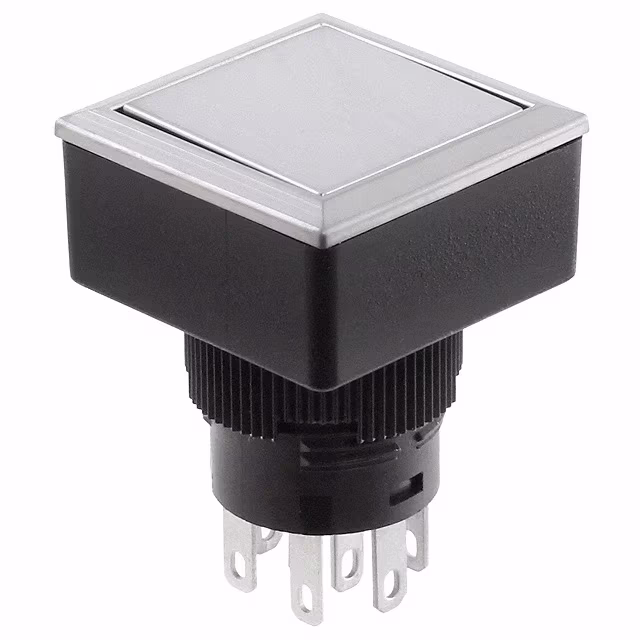

YB226CWSPW01-N-PSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Brushed Chrome | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
|
YB215CWSKG01-5C-HBSTD SIZE PUSHBUTTON/FLUSH MOUNT |
57 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
