Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB26WCKW01-5C05-JCSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB26WCKW01-5C24-JCSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB225KKG016G-1JBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 2.9 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB225KKG016F-3JBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
MPI001/RP/GN/12SWITCH PUSH SPST-NO 0.05A 24V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
UB226SKW036G-1JBSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 2.9 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
UB226SKG036FSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
UB226KKG016BSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, White | 3.3 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
LB25SKG01-5C12-JBSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB25SKG01-5D24-JDSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
LB16WKW01-5C12-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
UB226KKG016GSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Blue | 2.9 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
YB26WCKW01-2CF12-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB26WCKW01-2CF24-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB26WCKW01-2CF05-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
MP0045/1E1AM220SSWITCH PB DPST ON-OFF ILLUM AMB |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Amber | 220 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
|
YB26WCKW01-6B-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB26WCKW01-6G-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

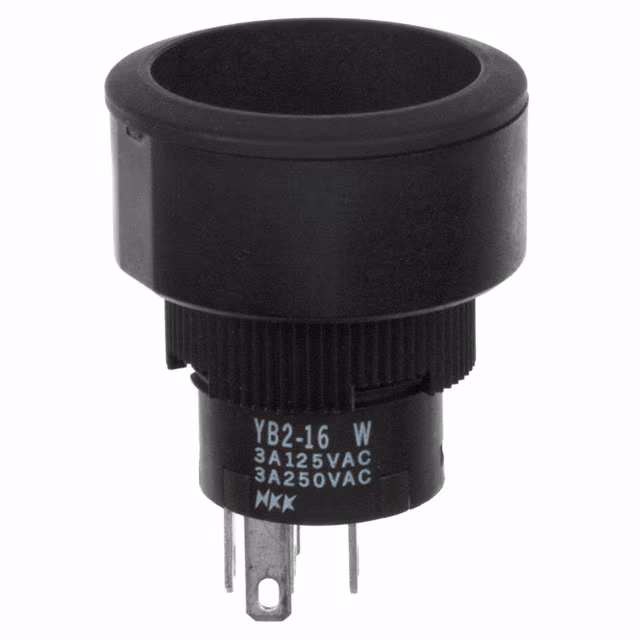

YB216CWCKW01-5C-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB216CWCKW01-5D-EBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Yellow (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
