Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
164SL522SWITCH PUSH 4PST-2NO/2NC 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 5A (AC/DC) | 250 V | 24 V | Square, Button | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 50°C |
|
1300230003Pushbutton Switches SWINGER 3P S |
45 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A3SJ-90A1-24SPWSWITCH PUSHBUTTON SPDT 3A 125V |
63 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | LED, White | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
A3PA-90A11-24AWSWITCH PUSHBUTTON SPDT 5A 125V |
38 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
1241.6710SWITCH PUSHBUTTON |
100 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
AML22CBR2EBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Green | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
1520150-1SWITCH PUSHBUTTON DPDT 20A 125V |
0 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount, Rear | Standard | DPDT | On-On | 20A (AC) | 125 V | - | Round, Button | No Marking | - | - | - | Screw Terminal | - | - | - | - |
|
|
7229K2Pushbutton Switches 7229K2=PUSH |
277 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
46-05-08-502-07SWITCH PUSH DPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 16.28mm x 14.35mm | -40°C ~ 85°C |
|
|
YB226CWSPG01-6F-HB-001DPDT ON-ON SQUARE W/ BRUSHED CHR |
0 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
A3PJ-90A11-24AGSWITCH PUSHBUTTON SPDT 5A 125V |
27 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
A3PA-90B11-24APWSWITCH PUSHBUTTON SPDT 5A 125V |
28 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
|
513-1701-604Pushbutton Switch, SPDT, Momenta |
95 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

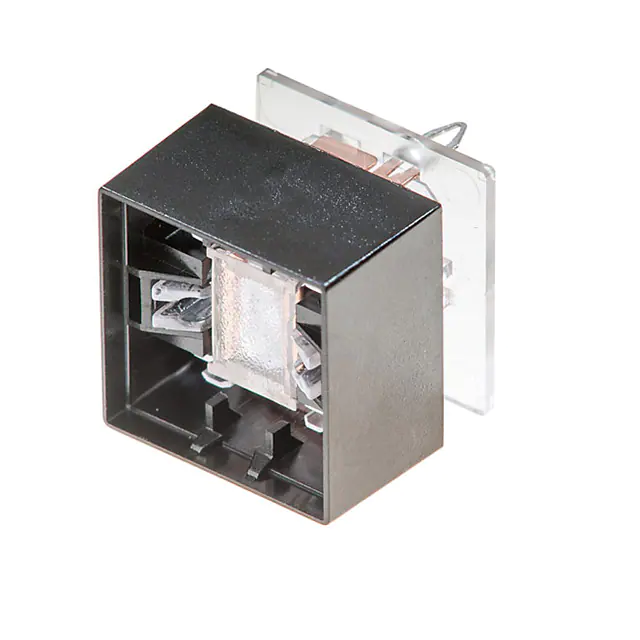

95-414.000SWITCH PB SPST-NO 50MA 48V |
820 |
|
Datasheet |
95 | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 50mA (DC) | - | 48 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin | IP40 | - | - | - |
|

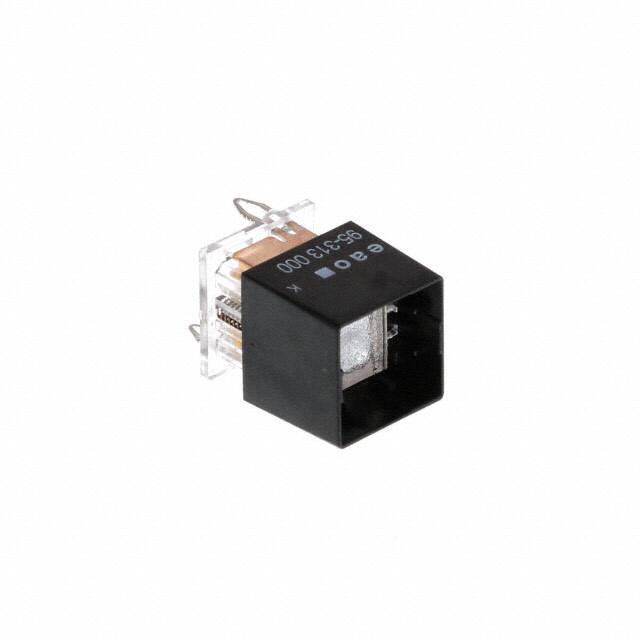

95-313.000SWITCH PB SPST-NO 50MA 48V |
44 |
|
Datasheet |
95 | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 50mA (DC) | - | 48 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin | IP40 | - | - | - |
|
HPBO-HPPMCRD-CBFSG30MM HAZ PP MUSH RED GLD PLTD |
200 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
AML22CBW8BASWITCH PUSHBUTTON SPDT 0.1A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | LED, Green | 15 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Epoxy Sealed Terminals | Square - 19.05mm x 19.05mm | - |
|
|
AML22CBC3ADSWITCH PUSHBUTTON DPDT 3A 125V |
49 |
|
Datasheet |
AML22 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 5 VDC | PC Pin | - | - | Square - 19.05mm x 19.05mm | - |
|
|
D6R40F1LFSSWITCH KEY N.O. SPST 0.1A 32VDC |
15,000 |
|
Datasheet |
D6 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
|
D6C60F1LFSKEY |
4,980 |
|
Datasheet |
D6 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | - | Blue | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
