Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW7GB-M1C2LW25MM PUSHBUTTON WHITE |
70 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Full Guard | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
|
3-123-555MSM 19 SWITCH C 100MA RI QC |
97 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | - | - | - | - | - | Round, Button | No Marking | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 85°C |
|
|
YB215CWSKW01-6B-HB-001STD SIZE PUSHBUTTON/ILLUMINATED/ |
195 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSKW01-6B-HB-002STD SIZE PUSHBUTTON/ILLUMINATED/ |
195 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSKW01-6B-HB-004STD SIZE PUSHBUTTON/ILLUMINATED/ |
195 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWCKW01-6B-HB-002STD SIZE PUSHBUTTON/ILLUMINATED/ |
65 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCKW01-6B-HB-004STD SIZE PUSHBUTTON/ILLUMINATED/ |
65 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWSPW01-5C-HB-002STD SIZE PUSHBUTTON/NONILLUMINAT |
198 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSPW01-5C-HB-004STD SIZE PUSHBUTTON/NONILLUMINAT |
198 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSPW01-5C-HB-001STD SIZE PUSHBUTTON/NONILLUMINAT |
196 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWCPW01-5C-HB-002STD SIZE PUSHBUTTON/NONILLUMINAT |
132 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCPW01-5C-HB-004STD SIZE PUSHBUTTON/NONILLUMINAT |
132 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCPW01-5C-HB-001STD SIZE PUSHBUTTON/NONILLUMINAT |
131 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
554-1221M/F BASIC SWITCH 5541221100 |
117 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

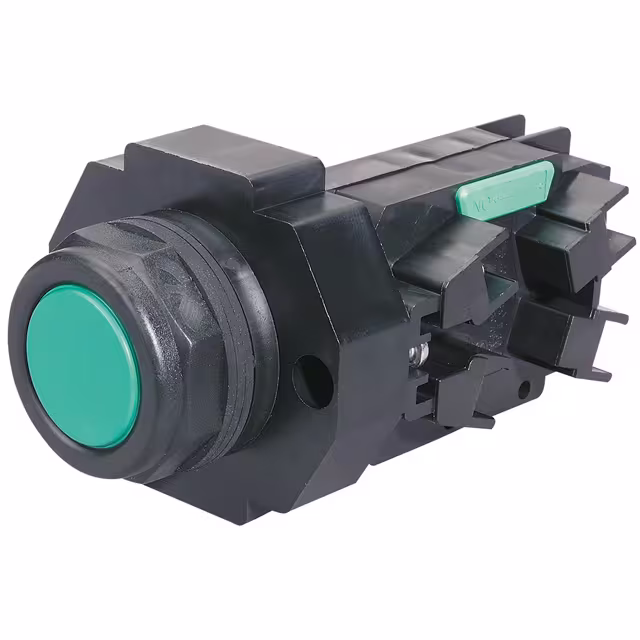

HPBO-FCGN-CBFSHAZLOC PB FLSH GRN FCTRY SLD |
198 |
|
Datasheet |
- | Box | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 5A (DC) | 72 V | 28 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 55°C |
|
|
YB216CWSPG01-5C-HB-001STD SIZE PUSHBUTTON/NONILLUMINAT |
79 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSPW01-6B-HB-002STD SIZE PUSHBUTTON/NONILLUMINAT |
198 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSPW01-6B-HB-004STD SIZE PUSHBUTTON/NONILLUMINAT |
198 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWCPW01-6B-HB-002STD SIZE PUSHBUTTON/NONILLUMINAT |
65 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCPW01-6B-HB-004STD SIZE PUSHBUTTON/NONILLUMINAT |
65 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
